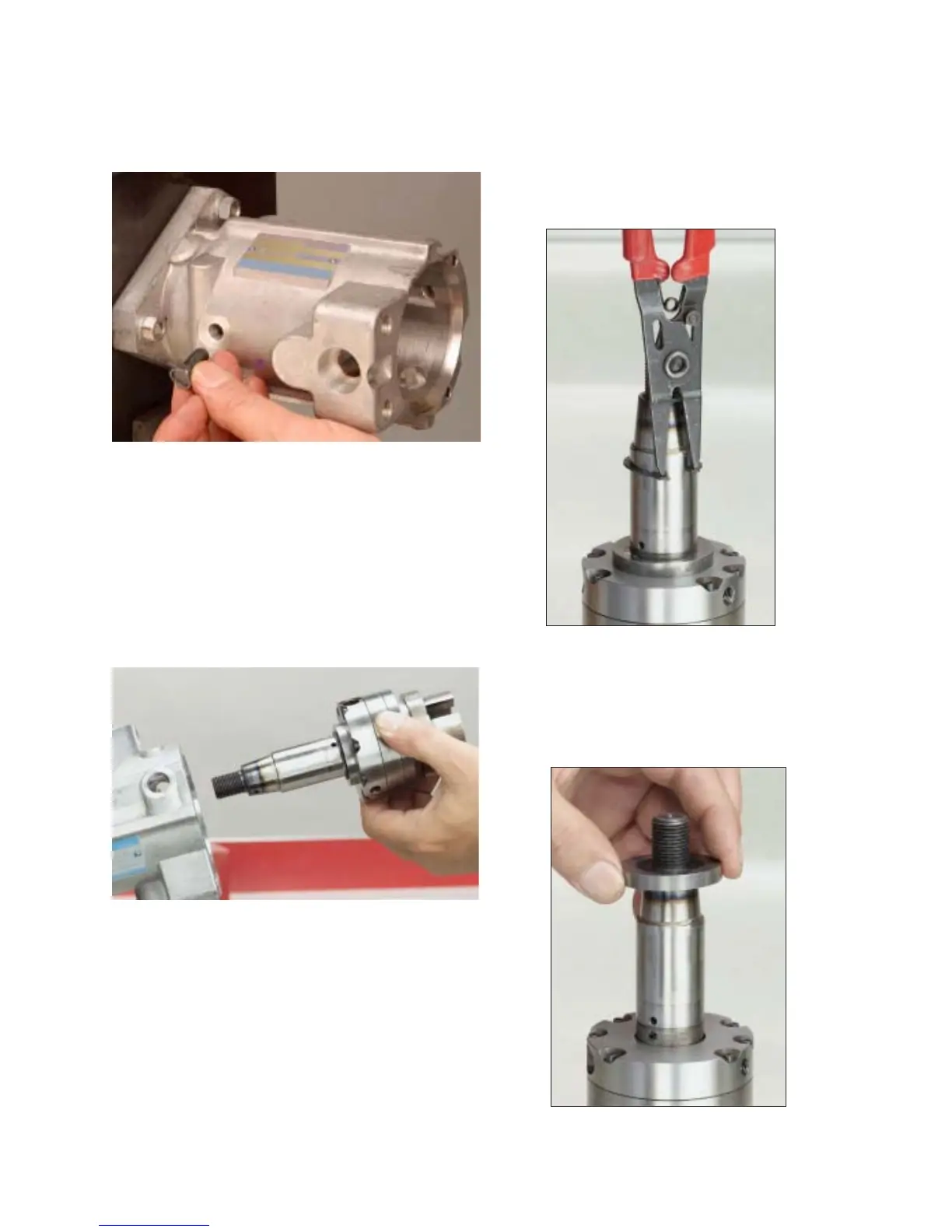

Step 23. Loosen and remove the transfer
pump locking screw using a 1/2” socket.
Step 24. Lightly tap on the end of the drive
shaft with a soft faced hammer if necessary and
remove the drive shaft/transfer pump assembly
from the housing.
Step 25. Using retaining ring pliers 20044 to
expand and carefully remove the retaining ring
from the drive shaft. Be sure to expand the ring
sufficiently and guide it so as not to contact and
possibly damage the surface of the drive shaft
that the seals ride on.
Step 26. Lift off the thrust washer and use di-
agonal cutters 31206 to remove the roll pin from
the shaft.
Fig. 2.23
Fig. 2.24
Fig. 2.24
Fig. 2.26a
