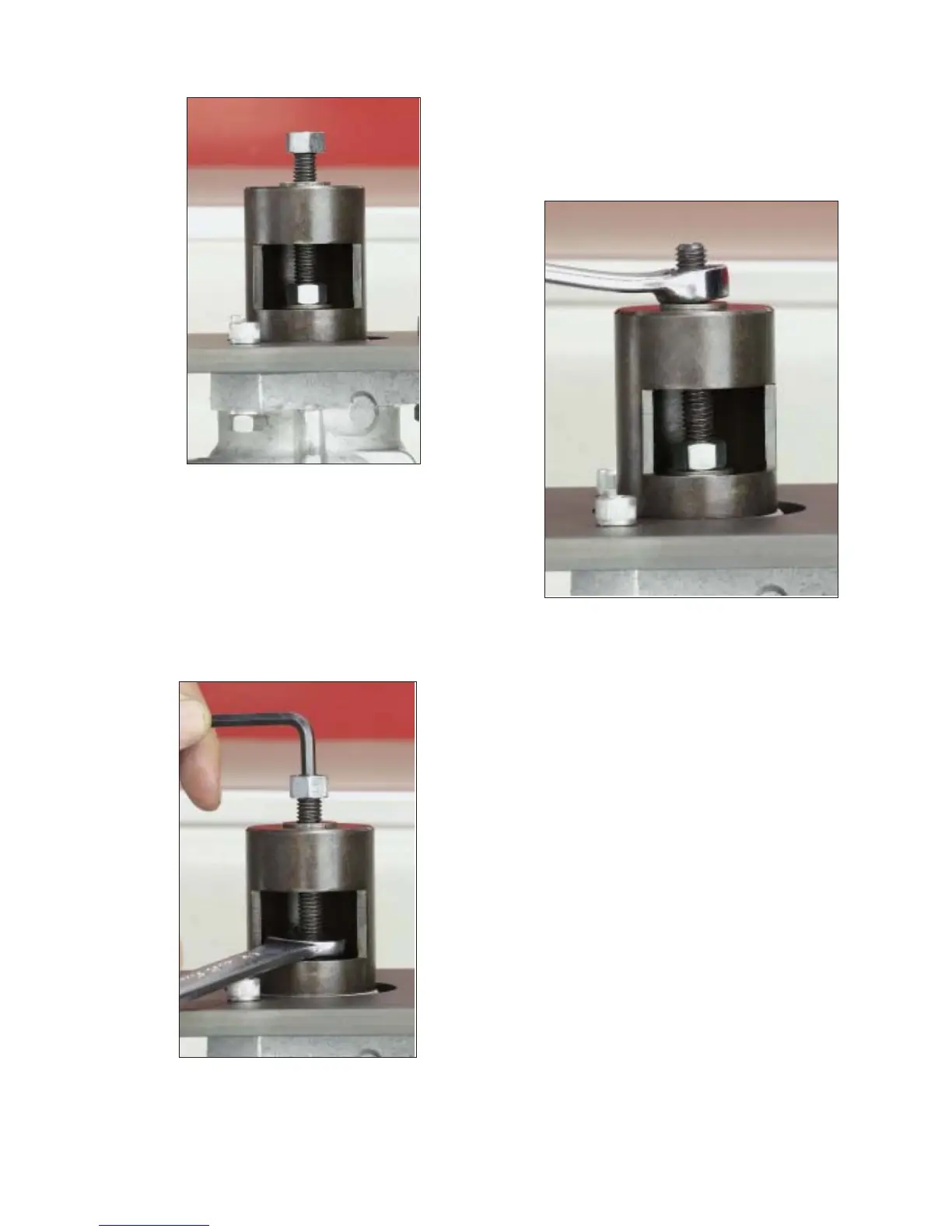

Fig. 2-47
Step 48 While using a 9/16” wrench to hold
the inner nut in place, back out the jacking screw
with a 3/16” hex key or bit to expand the collet
until it engages the steel case of the fuel side
seal. DO NOT OVERTIGHTEN!
Fig. 2-48
Fig. 2-49
24
Step 49 Rotate the outer nut clockwise using
the 9/16” wrench to pull the 2 drive shaft seals
and the bearing all together. NOTE: Consider-
able force may be required to start all parts
moving in the bore.
