Step 44 Remove the 4 snubber plate assem-
blies.
Step 45 Loosen and remove the 2 accumu-
lator retaining screws using a 3/16” hex bit.

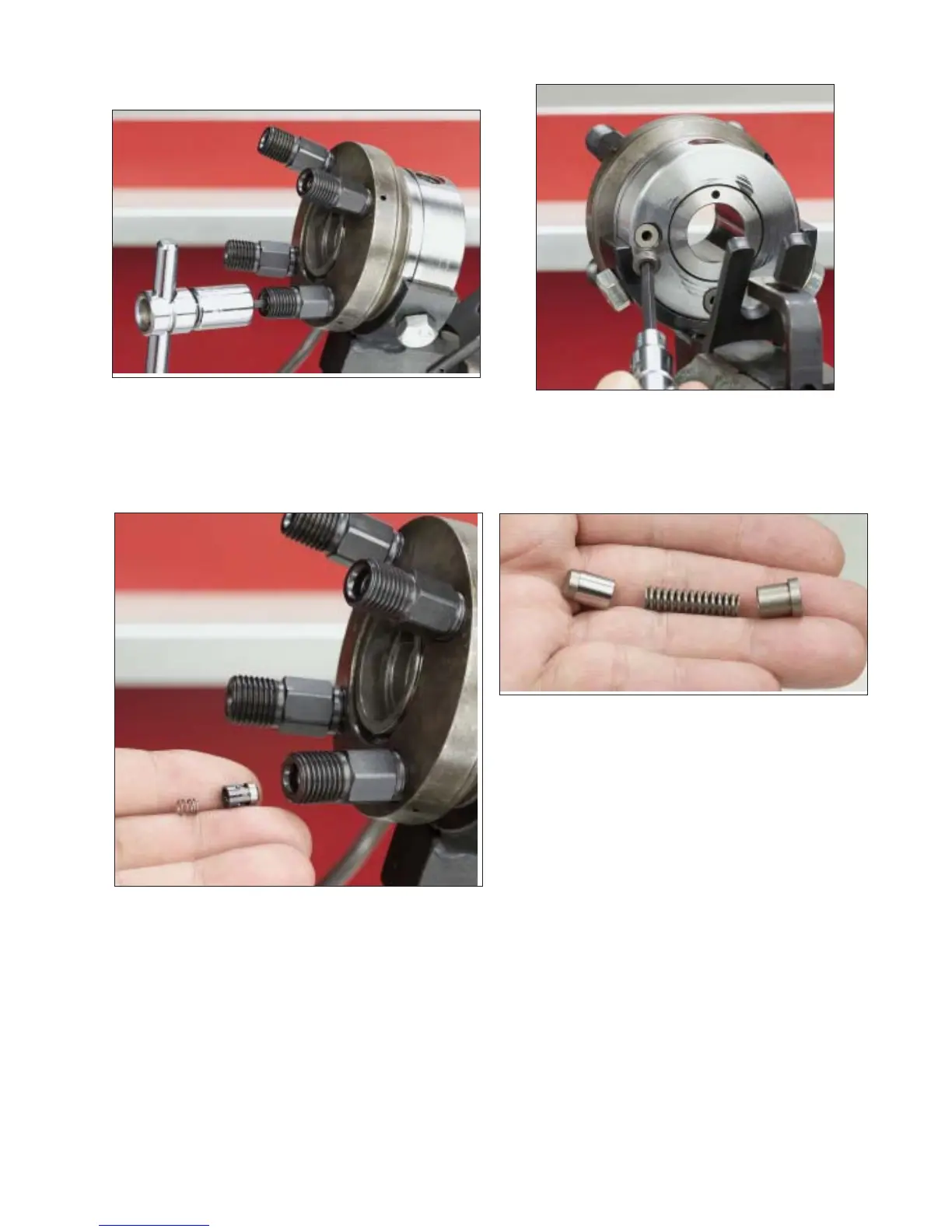

Fig. 2-43
Fig. 2-44
Step 46 Remove 2 accumulator piston stops
and springs. Remove 2 accumulator pistons. A
2-inch long 6-32 screw may be helpful for this.
Step 47 Clamp pump holding fixture 19965
with pump housing mounted to it in vise and
drive end facing straight up. Loosen inner nut
of 28311 bearing and seal puller to fully col-
lapse the collet. Back out the outer nut until it is
flush with the end of the jacking screw. Insert
the 28311 puller into the bearing and seal bore.
Fig. 2-45
Fig. 2-46
