45

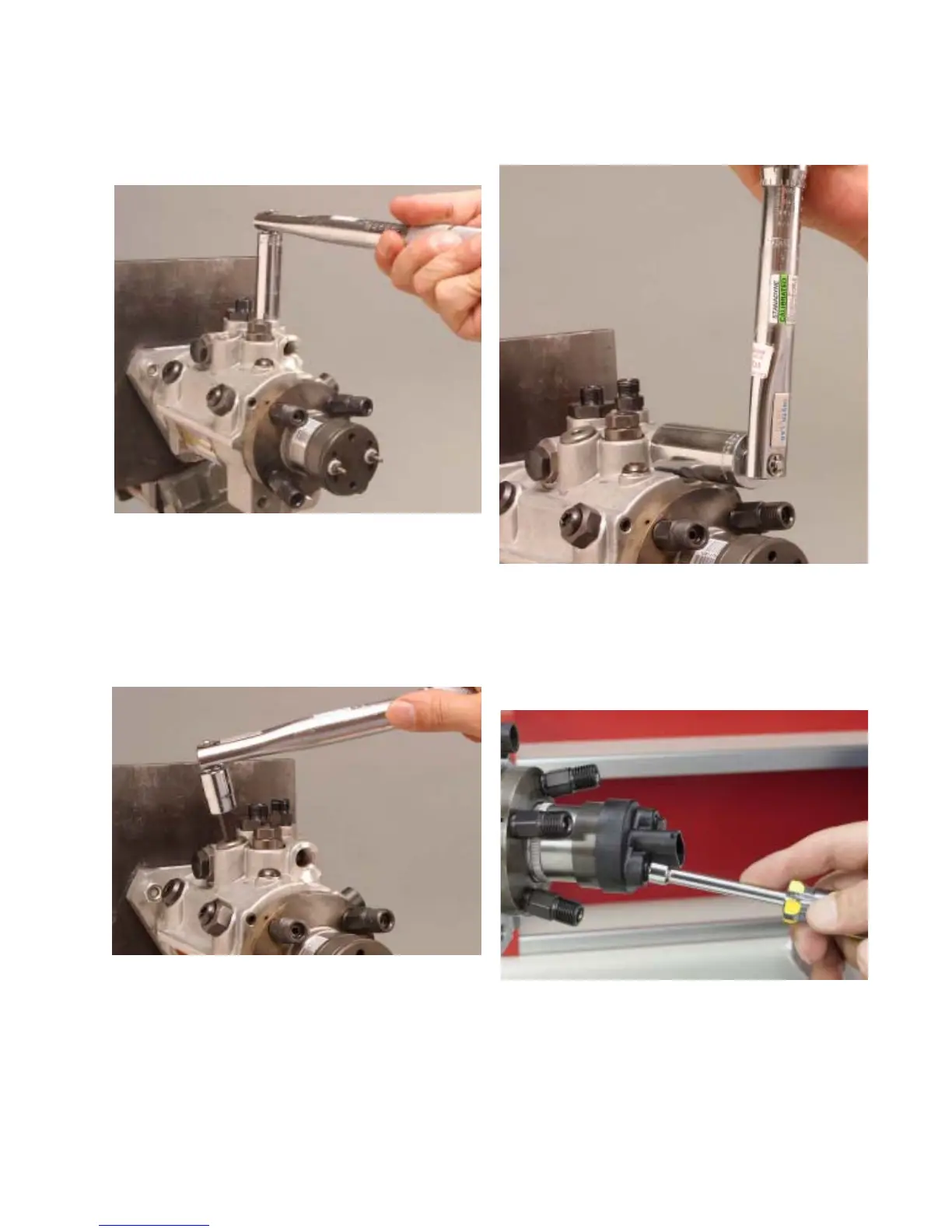

Fig. 4.64
Fig. 4.65
Fig. 4.66
Fig. 4.67
Step 64 Assemble a new seal to the return
line connector/housing pressure regulator and
install into the housing. With a 9/16” deep socket
tighten to 120-160 lbf-inches (13-18 N-m).
Step 65 Install a new seal onto the timing pin
plug and install in to the housing. Using a 1/4”
hex bit tighten to 75-100 lbf-inches (8-11 N-m).
Step 66 Install a new seal to the temperature
sensor and install into the housing. Tighten to
120-160 lbf-inches (13-18 N-m).
Step 67 Install new seals, to each terminal
cap and using a 1/4” nut driver tighten both ter-
minal caps to 12 to 18lbf-inches (1.5-2 N-m).
