Step 60 Assemble two new seals to the trans-
fer pump pressure regulator and lubricate with
Lubriplate grease. Install the regulator to the
housing and tighten to 215-265 lbf-inches (24-
30 N-m) using a 3/4” thin wall socket.
Step 61 Assemble a new seal to the transfer
pump regulator plug and lubricate with Lubriplate
grease. Install into the regulator assembly and
tighten to 180-220 lbf-inches (20-25 N-m) us-
ing a 5/8” socket.
Step 62 Place the transfer pump insert spring
and then the inlet filter into the hole on top of the
housing.
Step 63 Assemble a new seal to the inlet fit-
ting and lubricate with Lubriplate grease. Thread
the inlet fitting into the housing and tighten to
215-235 lbf-inches (24-26 N-m) using 1” deep
socket.
44

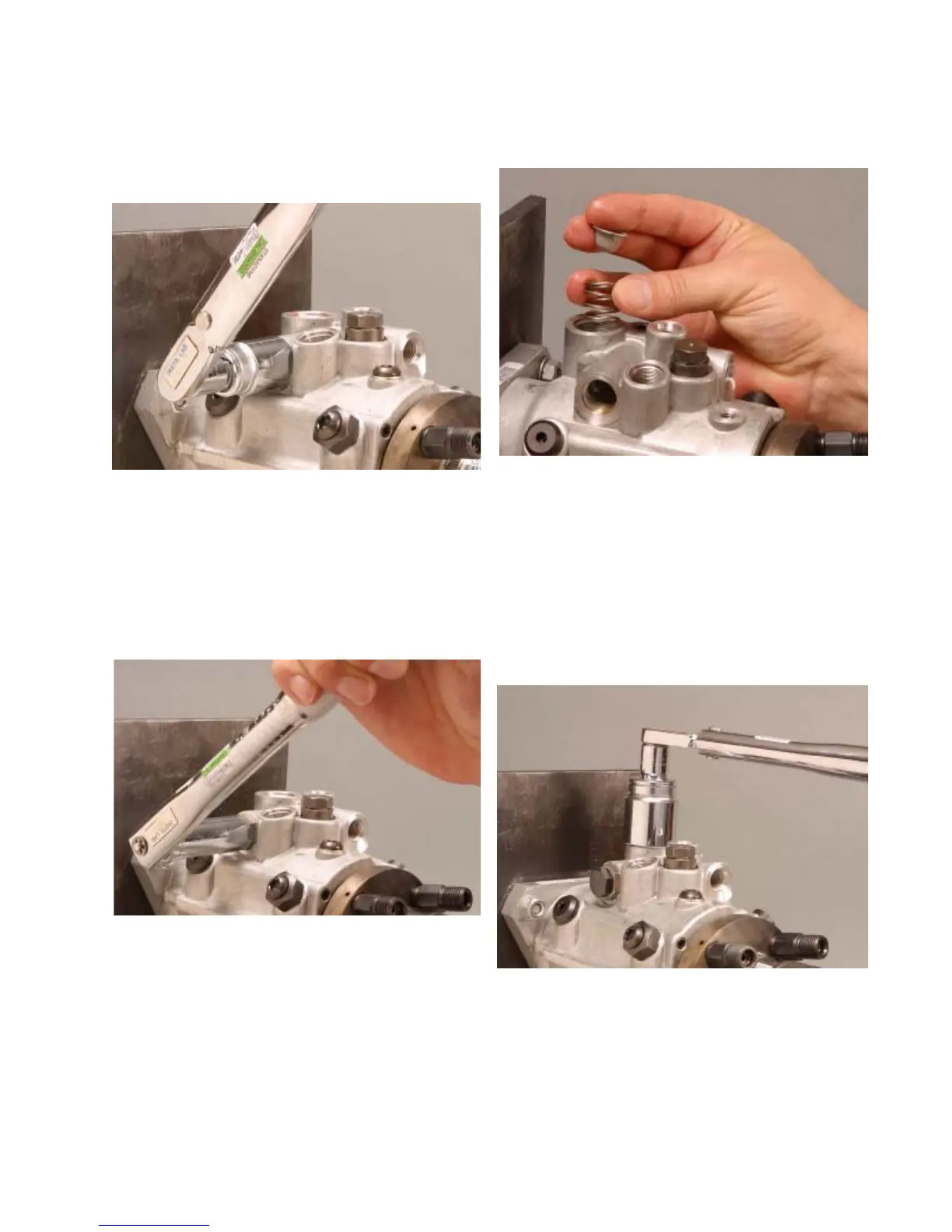

Fig. 4.60
Fig. 4.61
Fig. 4.62
Fig. 4.63
