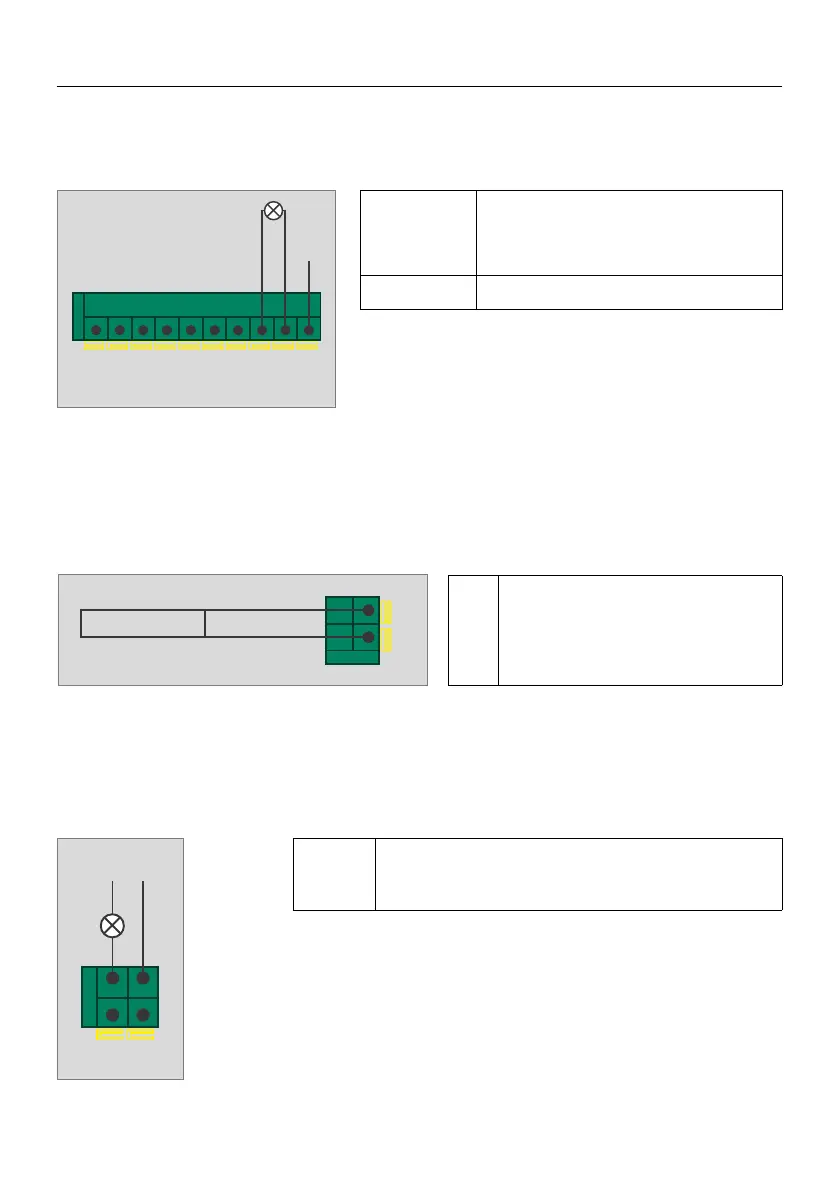

STARCUS F35 - Description of the Inputs; Outputs of the Control; XHO2 Door Drive Output Terminal; XH05 Electronic Lock Output Terminal; XH06 Relay Module Output Terminal

78
+/-
±24V Electronic lock output termi-
nal, output current max. 2A, time 3S,
function menu
6.3 enabled
FLASH/GND
DC24V warning light output terminal,
drive MAX current 0.2A, function menu
6.4 dene function status
+24V/GND DC 24V/ MAX 0.2A






COM/NO
XH06 Relay output module, max 100w.
See the function menu
6.7 for details
COM COM
STOP

PE


+24V
OPEN
CLOSE
+24V +24V
-
+
-
+
ELECTRONIC
LOCK

N L
DESCRIPTION OF THE INPUTS / OUTPUTS OF THE CONTROL
