79

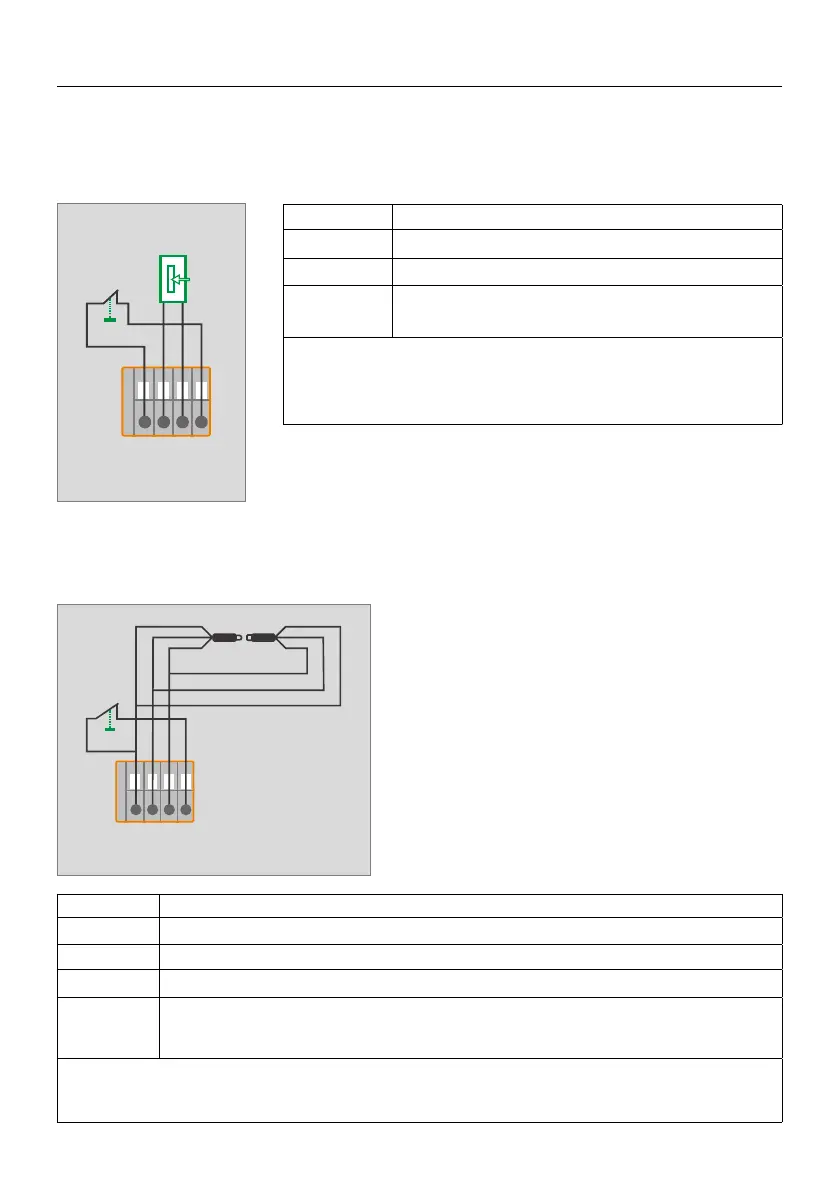

DESCRIPTION OF THE INPUTS / OUTPUTS OF THE CONTROL
(Wicket door protection/ Electrical safety edge)
GND GND
+12V
+12V
SINA
Signal
SP15/SD
Wicket door/ Pass door protection device terminal.
Note1: SP15 is disconnected, the door drive stops, and all control
functions are invalid.
Note2: The Electrical safety edge is short-circuited during the clo-
sing process, and the door drive will automatic reverse.
+12V
SD
8K2
SP15
(Optical safety edge/ three-wire infrared photo eyes/wicket door protection)
+12V
SD
SP15
GND GND
+12V
+12V
SINA
Signal
SP15/SD
Wicket door/ Pass door protection device terminal
Optical safety
edge
Enter the function menu 6.8 / .2 to enable the optical safety edge system/Three-
-wire infrared photo eyes
Note 1: SP15 is disconnected, the motor stops, and all control functions are invalid.
Note 2: The door will automatically reverse once the Optical safety edge system is triggered during the door’s
closing process.
Infrared emission Infrared receiver
