STARCUS F35 - Description of the Inputs; Outputs of the Control; XH02 V1 Safety Terminal (Infrared;Light Curtain)

80


(Infrared sensors/ light curtain)
STOP
Emergency stop normally open (NO) port, after connection, the door drive executes
long press operation mode
PB
Door drive operation control terminal, see details for specic functions
6.- 6.2 Function menu normally open (NO) port
OPEN
External door opening terminal normally open (NO) port
The external switch can be dened 1.0 the function for button mode .
CLOSE
External door closing terminal normally open (NO) port
The external switch can be dened 1.0 the function for button mode.
PE
Infrared sensors/ Built-in infrared sensors/ Light curtain, Details in 5.-
function menu.
+24V/GND DC24V Output power max 0.2A

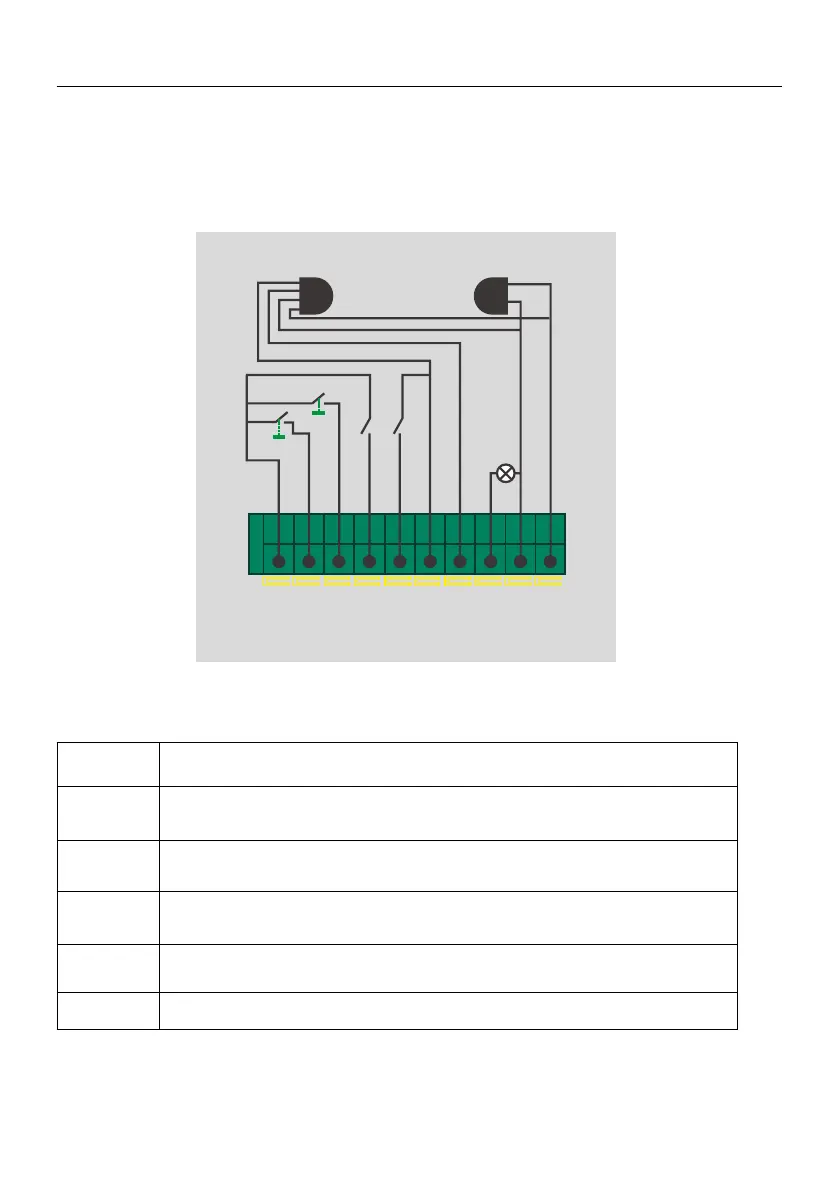

DESCRIPTION OF THE INPUTS / OUTPUTS OF THE CONTROL
COM COM STOP  PE   +24V OPEN CLOSE
SP15

TXRX
OPEN
CLOSE
