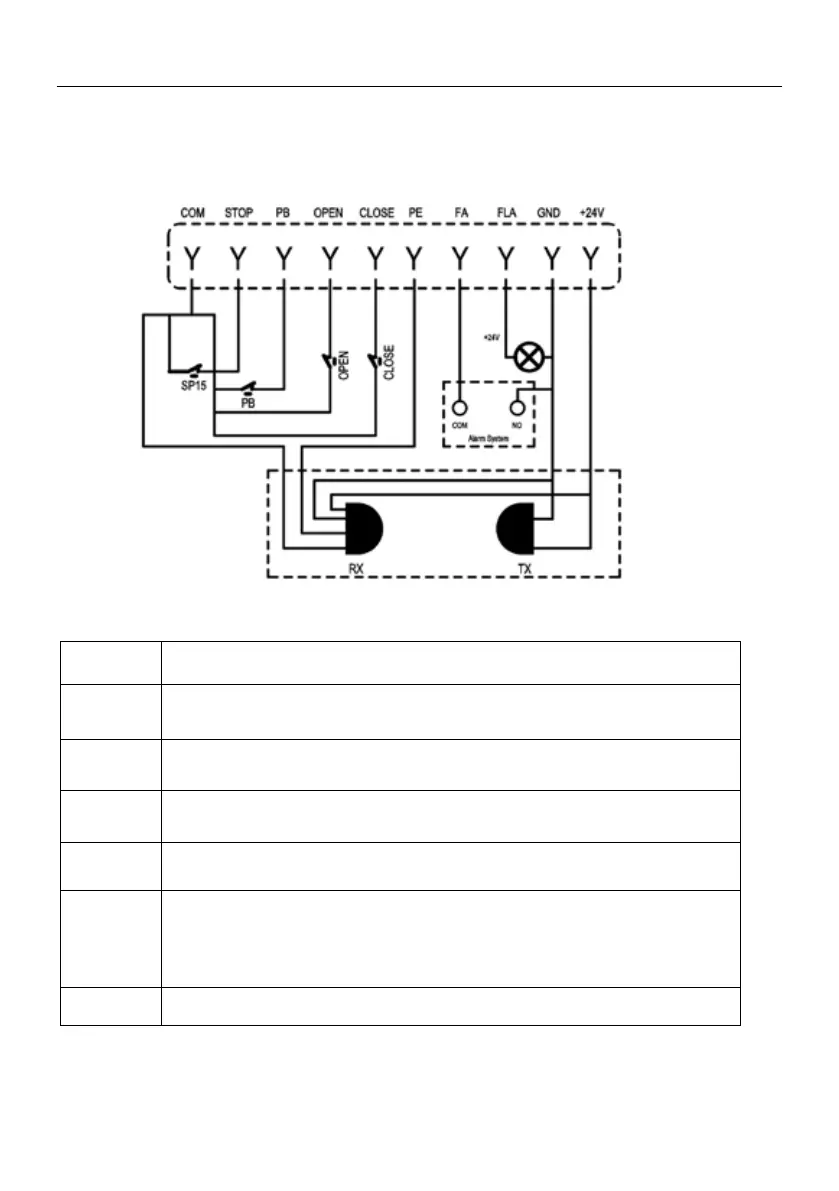

(Infrared sensors/ light curtain/Alarm System)
STOP
Emergency stop normally open (NO) port, after connection, the door drive executes
long press operation mode
PB
Door drive operation control terminal, see details for specic functions
6.- 6.2 Function menu normally open (NO) port
OPEN
External door opening terminal normally open (NO) port
The external switch can be dened
1.0
the function for button mode.
CLOSE
External door closing terminal normally open (NO) port
The external switch can be dened
1.0
the function for button mode.
PE
Infrared sensors/ Built-in infrared sensors/ Light curtain, Details in 5.-
function menu.
GND/FA
The terminal of the re alarm device (Default NO) .
Remark: The door will be opened to the opening limit position automatically
once the FA terminal is triggered (No matter what status the door is) and the door
cannot execute any other action commands until the FA terminal returns to the NO
(Normal open) state.
+24V/GND
DC24V Output power max 0.2A
DESCRIPTION OF THE INPUTS / OUTPUTS OF THE CONTROL
To Next Page
