Static Solutions CT-8900 Combo Tester Instructions 1/15/2015
13
Dip Switch Settings for 100M unit
The following resistance alarm values may be set inside the combo meter.
The factory settings are represented in bold.
Foot Low sw1
.5M off (use this setting for 100K lower limit option meters)
.75M ON (US & IEC default)
Wrist Low sw2
.5M off (or for 100K lower limit option meters)
.75M ON (US & IEC default)
Foot High sw3 sw4 sw5
2M off off off
5M ON off off
10M off ON off
25M ON ON off
35M off off ON (IEC & CECC default)
50M ON off ON
75M off ON ON
100M ON ON ON (US default)
Wrist High sw6 sw7 sw8
2M off off off
5M ON off off
10M off ON off (US default)
25M ON ON off
35M off off ON (IEC & CECC default)
50M ON off ON
75M off ON ON
100M ON ON ON
A special 1000 megohm unit is also available. See below.
1
2
3
4
5
6
7
8
ON

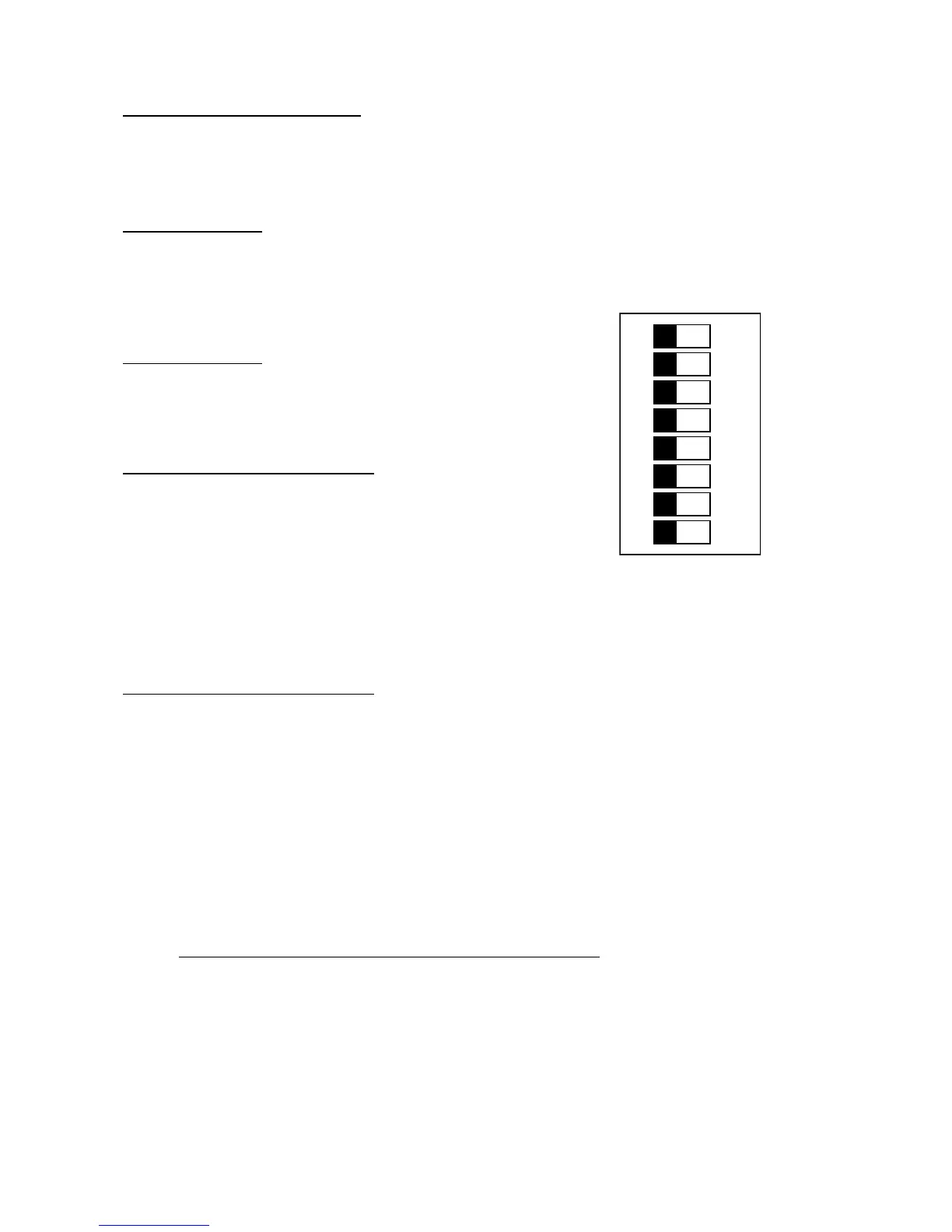

Figure 1 Dip switch -
see table for settings
