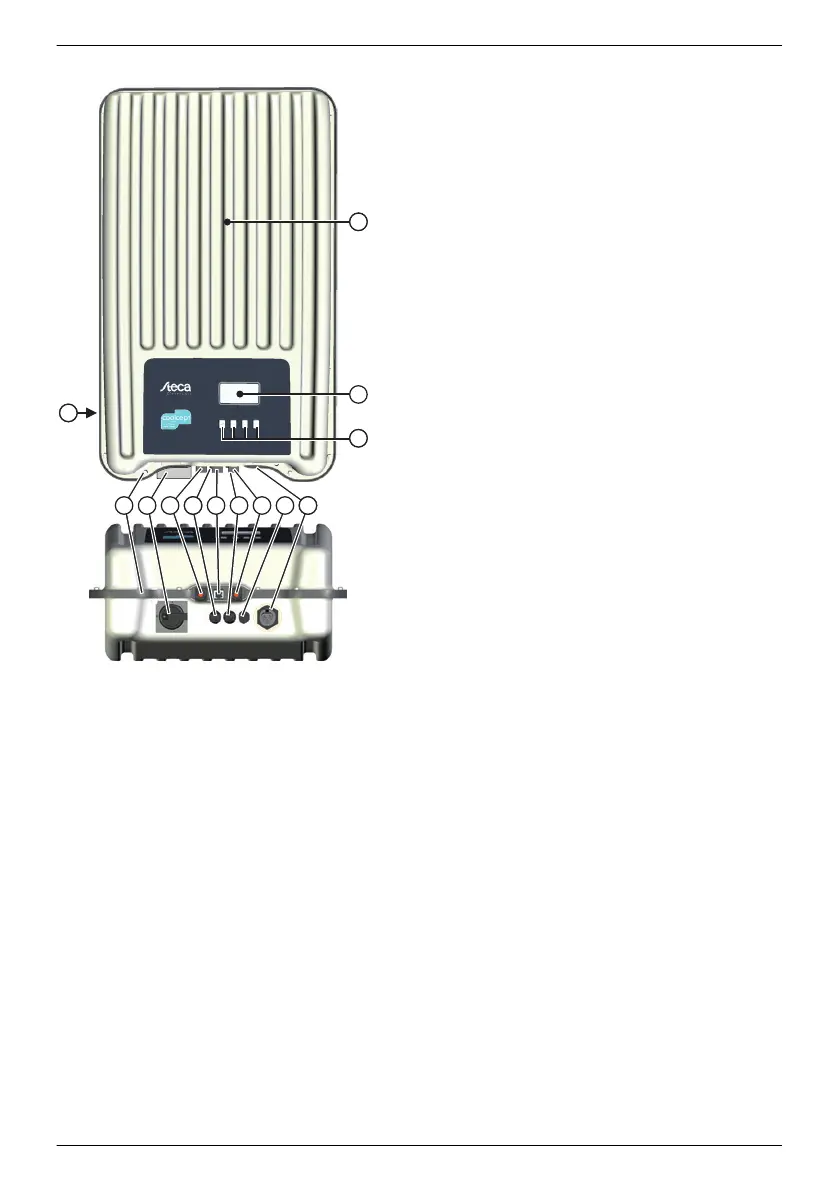

3.1.2 coolcept-x
11
2
3
14
89 67
11
151
10
1213
①
Hood
②
Display (monochrome, 128 x 64 pixels)
③
Rating plate, serial number, warnings
④
Operating buttons: ESC, r, s, SET (from left to
right)
⑤
1x AC connection
⑥
Pressure equalization membrane
⑦
1x RJ45 socket (RS485 bus)
⑧
1x DC connection Minus (−) for solar modules
(Phoenix Contact SUNCLIX, safe-touch)
⑨
1x RJ45 socket (RS485 bus)
⑩
1x DC connection Plus (+) for solar modules
(Phoenix Contact SUNCLIX, safe to touch)
⑪
1x RJ45 socket (Ethernet)
⑫
DC load-break switch (disconnects plus and minus
input simultaneously, can be safeguarded with a
padlock)
⑬
Bore for optional attachment of a grounding
element or mechanical fastening element
(securing chain)
The housing components are described individually below.
