5.2 General operating functions
n Hidden content is shown using the r and s buttons.
n Repeated button presses: If rs need to be pressed repeatedly, you can alternatively hold
these buttons pressed for a long time. The rate of repetition increases the longer the button is
held.
n Pressing any button switches on the display backlighting
5.3 Important operating functions
The figures in this section show examples.

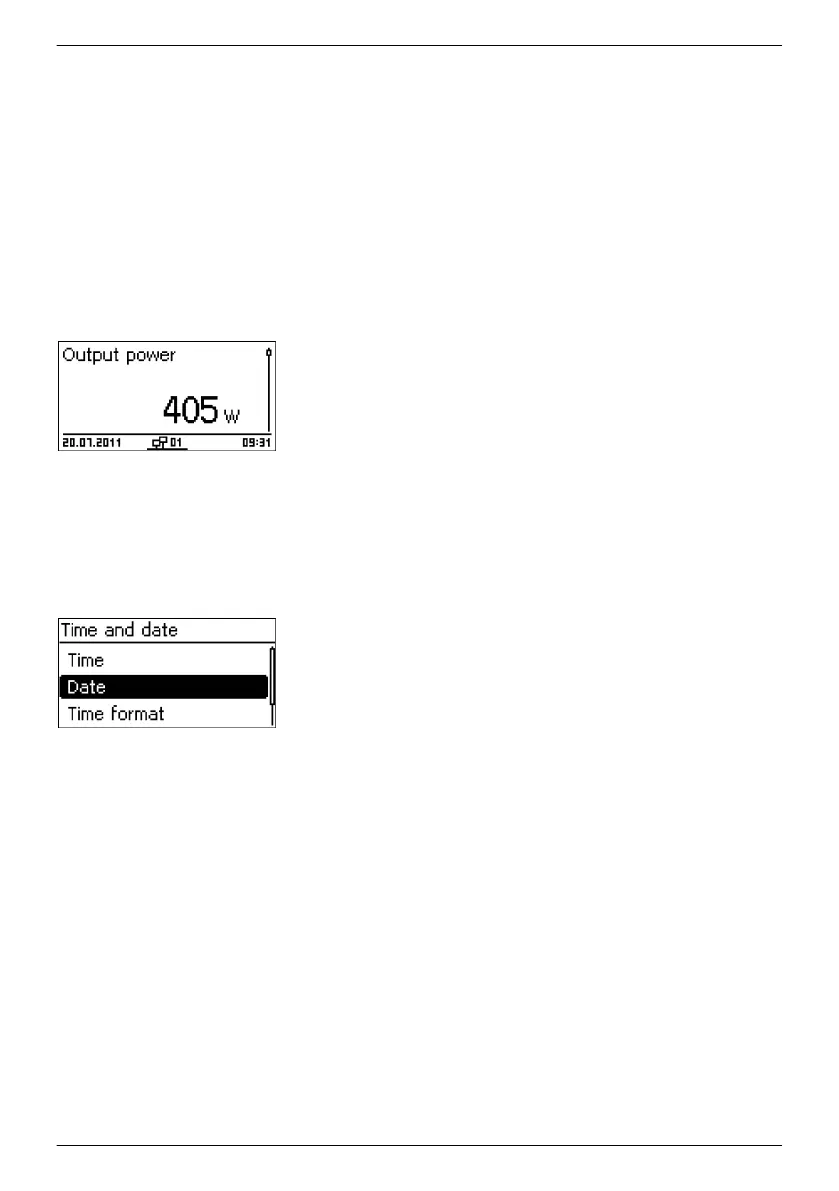

Status display
1. If necessary, press ‘ESC’ for 1 second to call up the status
display (Fig. left).
2.
Press rs to display a different parameter.
Menu navigation
1. Press ‘ESC’ for 1 second to call up the status display as
required.
2. Press ‘SET’ . The main menu is displayed with the top item
selected.
3.
Press rs to select a menu item.
4. Press ‘SET’ to call up the submenu (Fig. left).
5. Repeat steps 3 and 4 for further submenus as required.
Incident messages
See
Ä
, p. 63
EN
747,431 | Z09 | 2015-09-30
51
