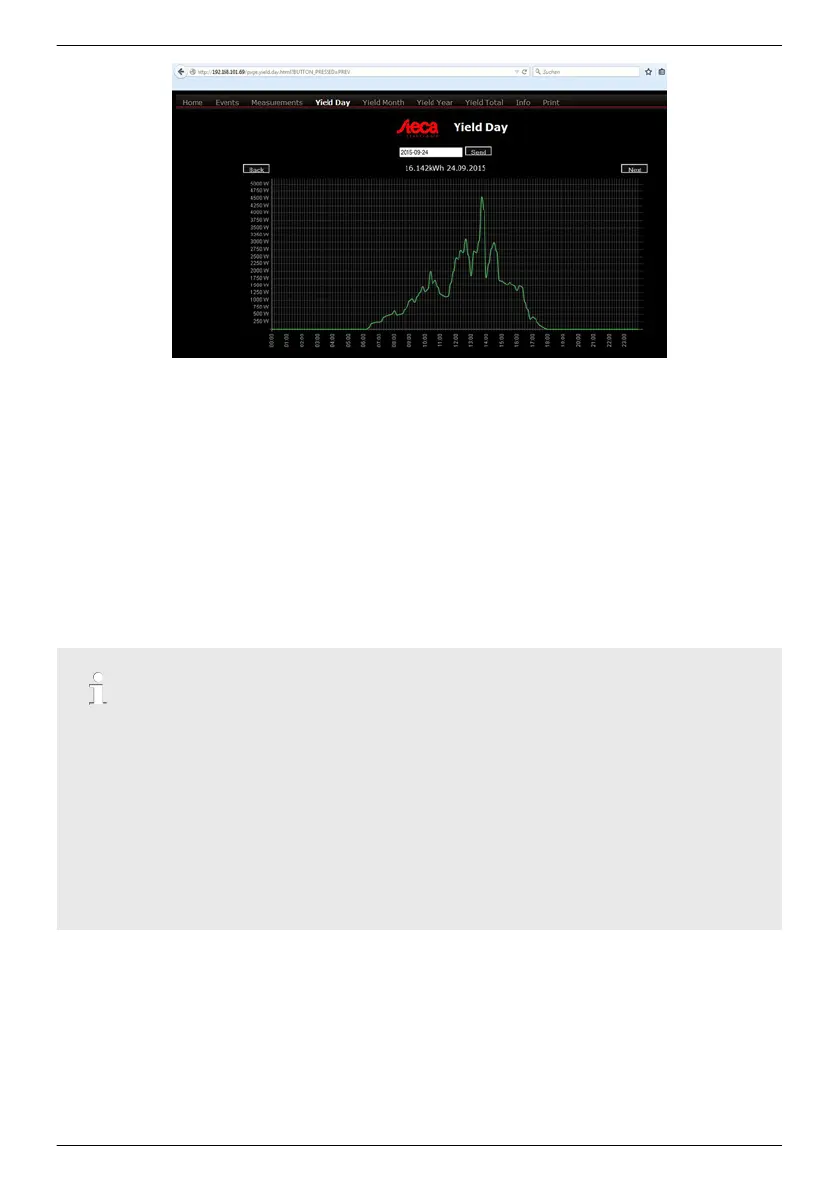

Fig. 7: Example 2 of an HTML page
3.6.3 RS485 bus
The inverter communicates with other devices via an RS485 bus. The following applies: The inverter
has two RS485 interfaces (RJ45 sockets) on the lower side of the casing.
n The inverter has two RS485 interfaces (RJ45 sockets) on the lower side of the casing.
n The beginning and end of the RS485 bus must be terminated; see 3.6.5, p.25.
n Standard RJ45 cables can be used as bus cables (Cat-5 patch cables, not supplied). Use an
alternative data connection cable for longer connections; see 3.6.4, p.24 .
n The inverters connected to the RS485 bus operate as slaves.
Note
The following inverters have compatible data interfaces and can be connected to the RS485
bus as slaves:
– StecaGrid 2020
– StecaGrid 1500, 1800, 2000, 2300, 2500, 3010, 3000, 3600, 4200 and StecaGrid 1500,
1800x, 2000x, 2300x, 2500x, 3010x, 3000x, 3600x, 4200x
– StecaGrid 8000 3ph
, StecaGrid 10000 3ph
– StecaGrid 8000+ 3ph, StecaGrid 10000+ 3ph
Comply with the instructions in the manuals of these devices relative to addressing,
termination, and approved data cables.
