Switching off the AC and DC supplies
1. Turn the AC circuit breaker to off.

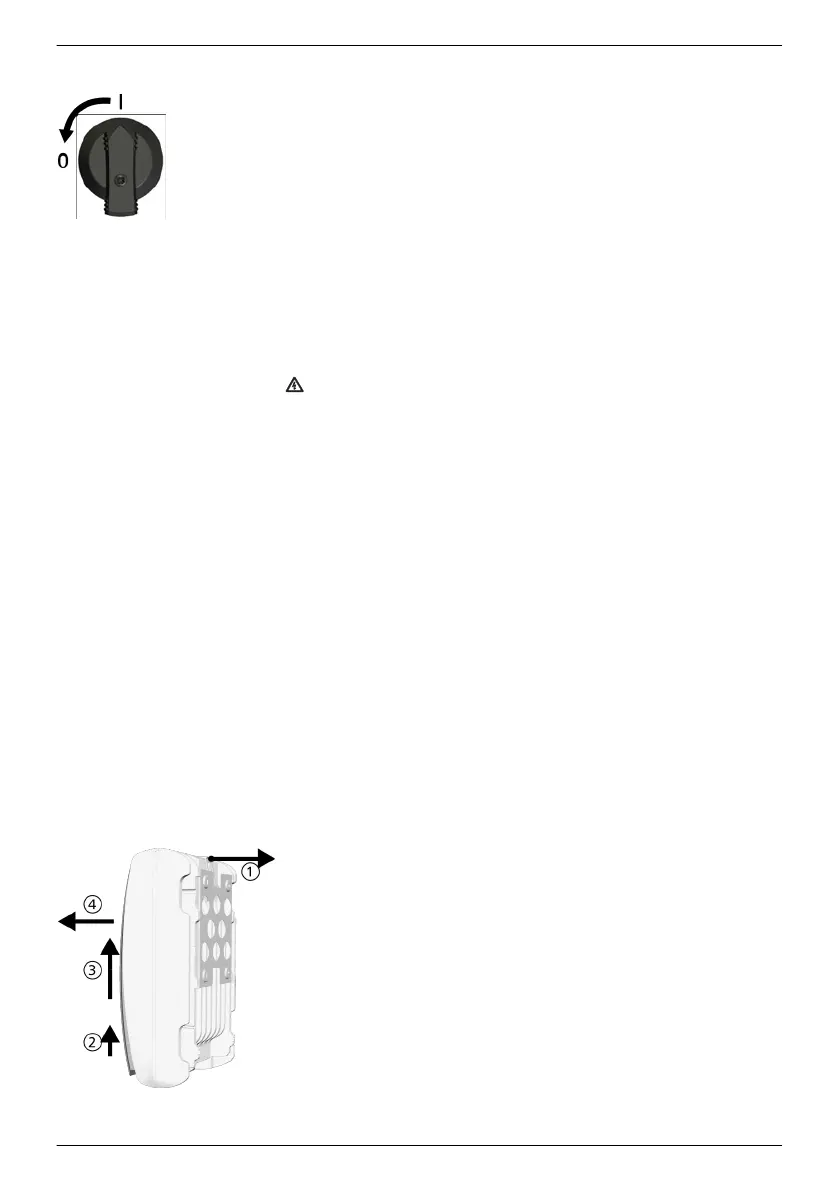

2. Set the DC circuit breaker on the inverter to position 0 (Fig.
left).
Disconnecting the DC connections from the inverter
u
Disconnect the DC cable plug connectors according to the
manufacturer's instructions; see appendix.
—————————————————————————
Warning
DC cables carry voltage when the solar modules are subjected to
sunlight.
—————————————————————————
Disconnecting the AC plug from the inverter
1. Remove the AC plug from the socket on the inverter as
described in the Appendix under Mounting ⇒ AC plugs.
2. Check that all pins of the AC plug are free of voltage. Use a
suitable voltmeter for this (do not use a simple neon phase
checker).
Opening the AC plug (only if required)
u
Open the AC plug as described in the Appendix under
Mounting ⇒ AC plugs.
Removing the inverter from the mounting surface
1. Use one hand to press the retaining plate on the mounting
plate approx. 5 mm towards the mounting surface ① (Fig.
left).
2. Use the other hand to push the inverter upwards, far enough
so that the retaining plate no longer latches ②. Release the
retaining plate.
3. Lift the inverter with both hands until the hooks on the rear
side of the inverter are free ③.
4. Remove the inverter from the mounting surface ④.
EN
747,431 | Z09 | 2015-09-30
49
