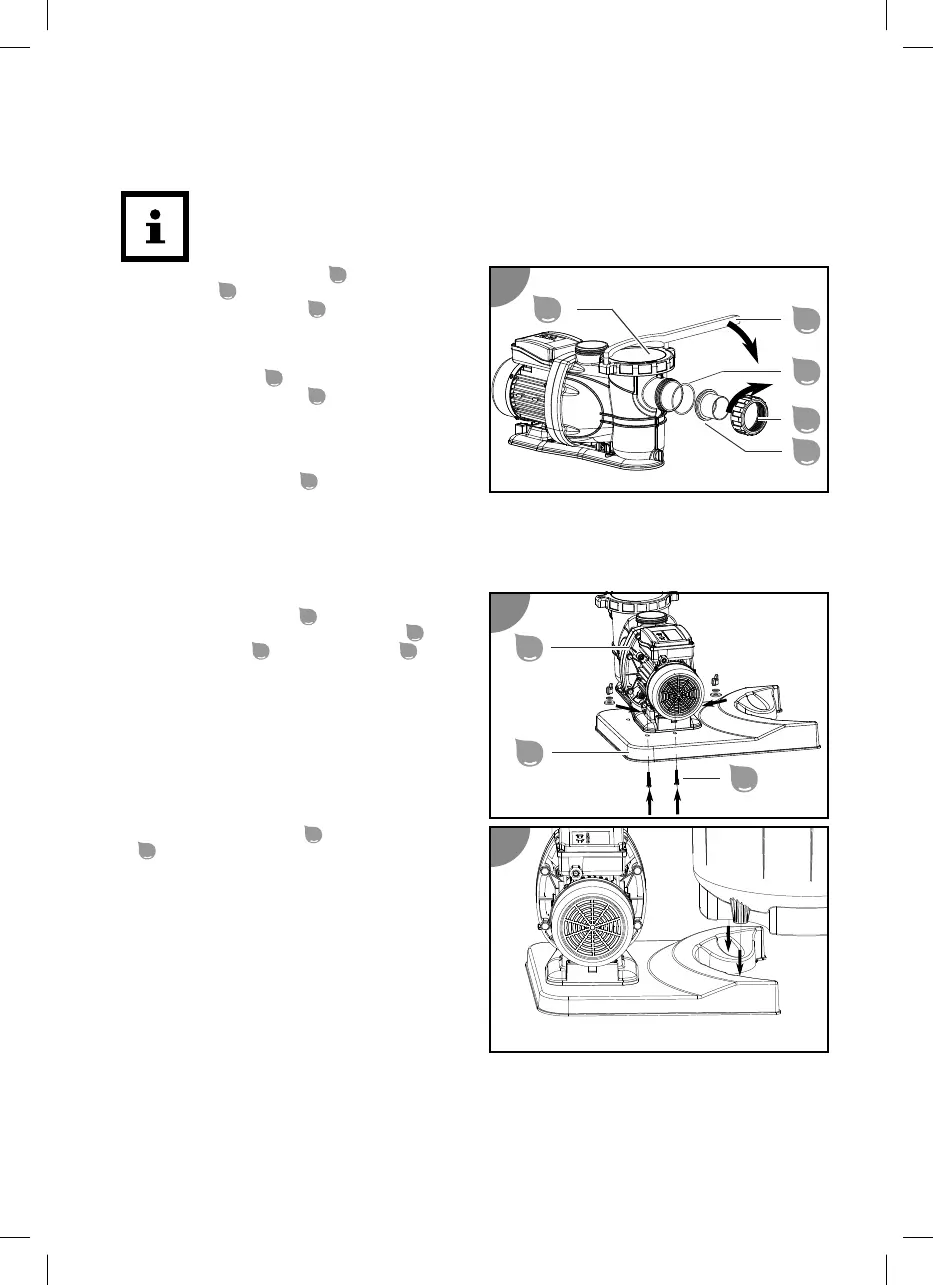

Steinbach Premium 100 - Preparing the Pump

Preparing the pump
At the time of delivery, the pump is only partially assembled.
Only hand-tighten all screw connections. Excessive tightening of the screw connections
damages seals and plastic components. Do not use any tools!
1. Place the large O-ring seal
19
into the line
connection
17
of the pump.
2. Guide the threaded ring
18
of the pump over
the line connection.
3. Turn the threaded ring clockwise until it is
hand-tight.
4. Insert the prefilter
27
into the pump.
5. Place the prefilter cover
15
on the pump
housing.
Pay attention to the positioning of the
recesses on the prefilter cover and pump
housing.
6. Place the auxiliary tool
26
into both holes on
the prefilter cover.
7. Use the auxiliary tool to turn the prefilter cover clockwise until firmly in place.
The pump is ready for operation. You can now connect it to the lines.
Mounting the pump on the base plate
1. Insert the threaded screws of the screw set
for fastening the pump
23
from below into the
two hexagonal holes in the base plate
13
.
2. Place the pump
14
on the base plate
13
so
that the threads protrude through the
fastening opening in the pump base.
3. Push the washer and then the serrated lock
washer over the screw thread.
4. Put on one winged screw each and tighten it.
The pump is mounted on the base plate.
5. Connect the base plate
13
to the filter vessel
6
.
The base plate is connected to the filter vessel.
