iAStar Frequency Inverter For Elevator Door Machine manual Instructions
31
F36.0：openning door input signal
F36.1：closing door input signal
F36.2：closing door in slow input signal
F36.3：door open limit signal
F36.4：door close limit signal
F36.5：decelerating opening signal
F36.6：decelerating closing signal
F36.7：spare

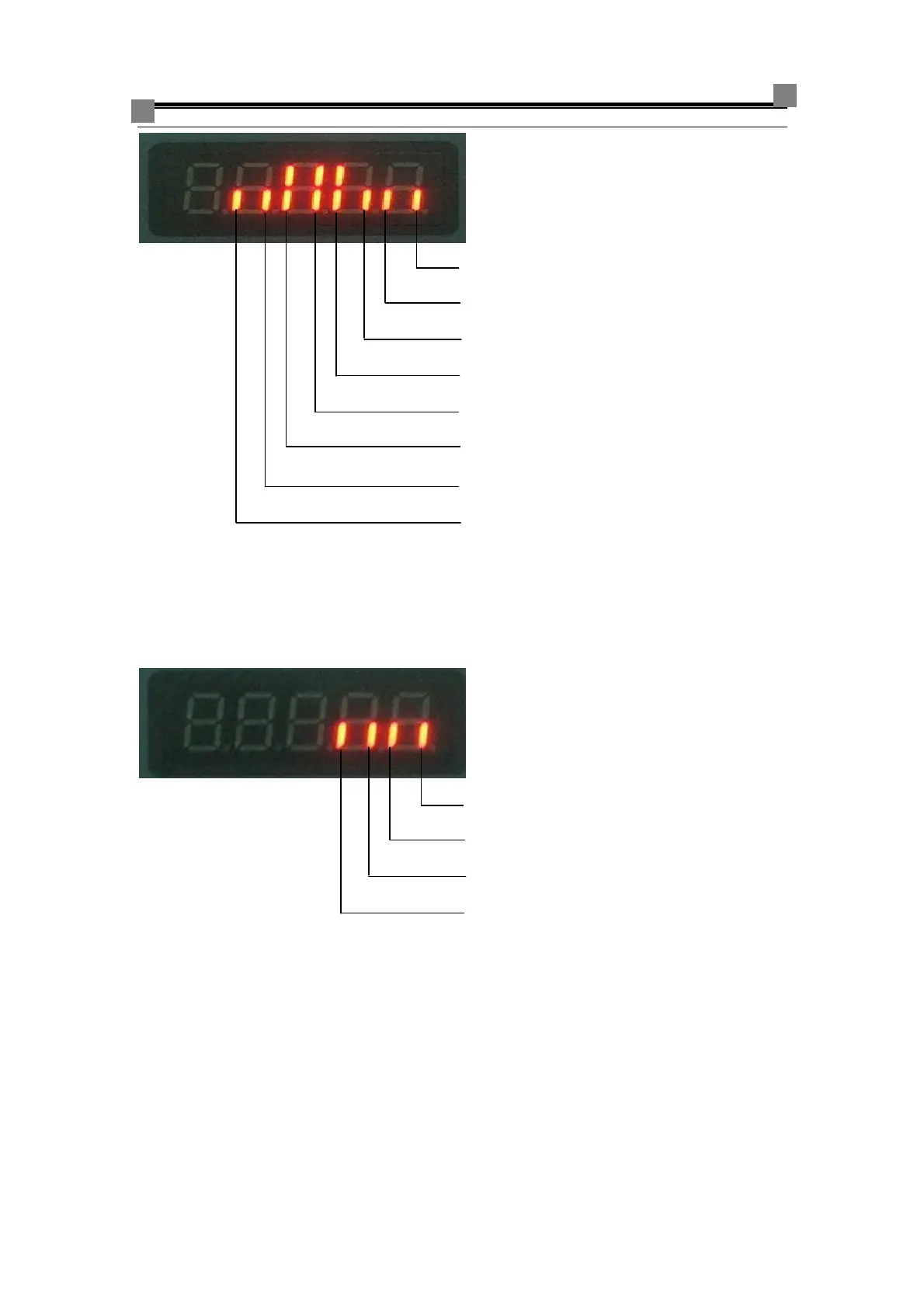

F37 Set output mode range：0000～1111
Parameter F37 is binary，the 0～3 digit and relay output INPUT0~INPUT7
correspond，setting 0（short upright）means NO relay output，setting1（long upright）
means NC relay output.
F37.0：door open limit relay output
F37.1：door close limit relay output
F37.2：closing-blocked relay output
F37.3：fault relay output
F38 Terminal spare signal range：0-255
F38 = 0：terminal spare is forbidden
F38 = 1：terminal spare is used as floor input
F38 = 2：terminal spare is used as later door input
F38 = 3：if terminal spare has signals, output of inverter is forbidden
This setting can be used for testing. Input INPUT8
（
connect 17 and 18
）
then
modify the parameter,save it. Disconnect 17 and 18, then inverter will work
normally
F39 Duration of No instruction range：0-600.00
