WIRE CUTOUTS
J1 PLUG (DRV)
J6 PLUG (JUNCT)
P1 Plug (16 WIRE CONTROL CABLE )
B R G W S B R G W
Blu
Br S B R G W Blu Br S
1 2 3 4 5 6 7 8 9 10 11 12 13 S
14 15 16 17 18 19 20 21 22 23 24 25
J2 PLUG (DIR)
J3 PLUG (REF)
P2 Plug (16 WIRE CONTROL CABLE )
BLACK

RED

GREEN

WHITE

SHIELD

4 wire control cable key
BLACK

RED

GREEN

WHITE

BLUE

BROWN

SHIELD

6 wire control cable key
S
C
R3
R2
R1
SHIELD

S
BLACK

C
WHITE

R3
RED

R2
NOT USED

R1
Coax switch wiring key
CHAPTER FIVE
SECTION 5.1

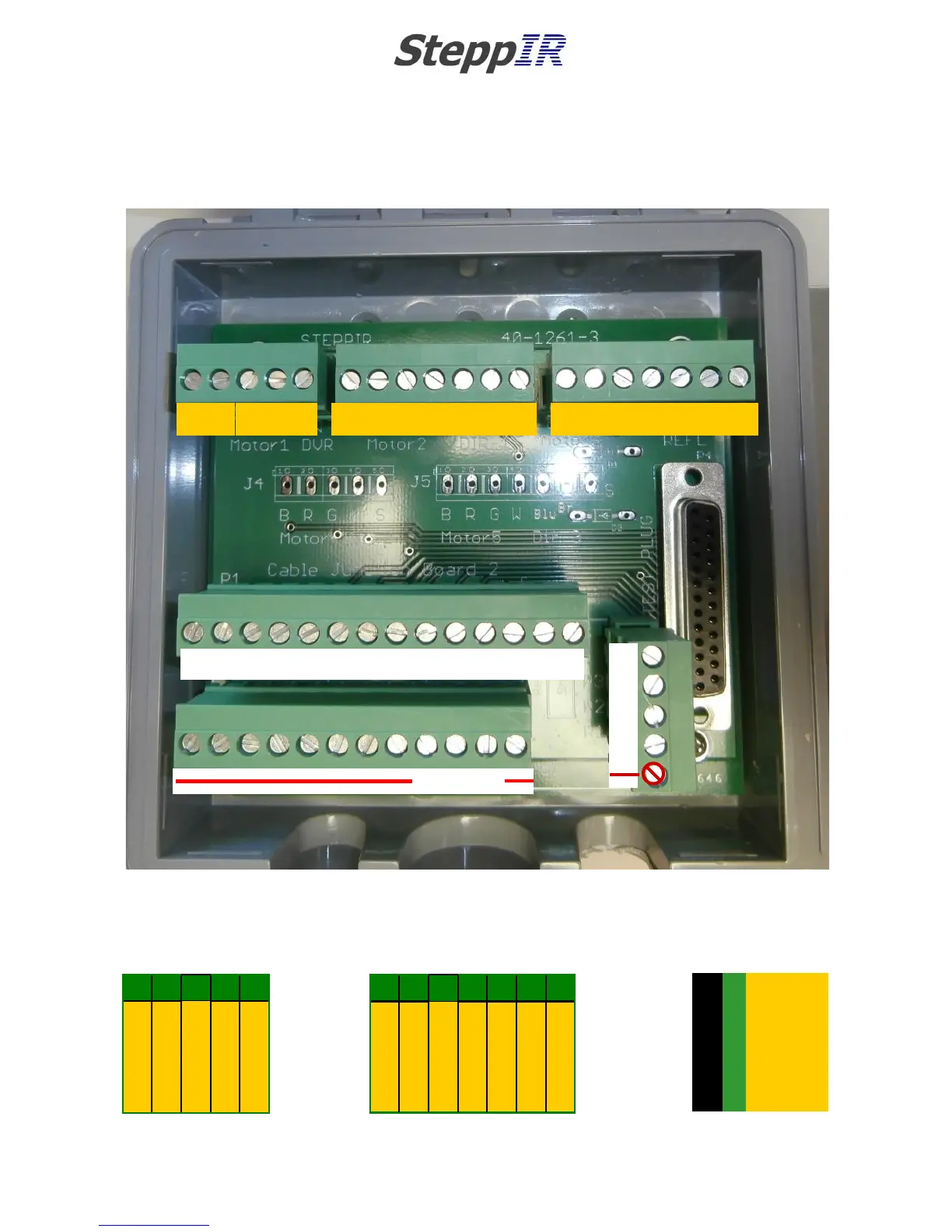

WIRING THE CONNECTOR JUNCTION BOX (continued)
WIRING THE CONNECTOR JUNCTION BOX (continued)
FIG. 5.14
