Page 48
J5
COM
R4
R3
R2
J6 PLUG
LOCATED INSIDE CONNECTOR
JUNCTION BOX
TERMINAL HEADER
LOCATED INSIDE
COAX SWITCH HOUSING
S
C
R3
R2
R1
Black
Shield
White
DO NOT USE
DO NOT USE
NOTE: When wiring the control ca-
ble from the coax switch to the
connector junction box, the green
wire is not used. Be sure to trim the
green wire on each end of the con-
trol cable and tape over it to avoid
potential electrical shorts.
Red
CHAPTER FIVE
SECTION 5.1

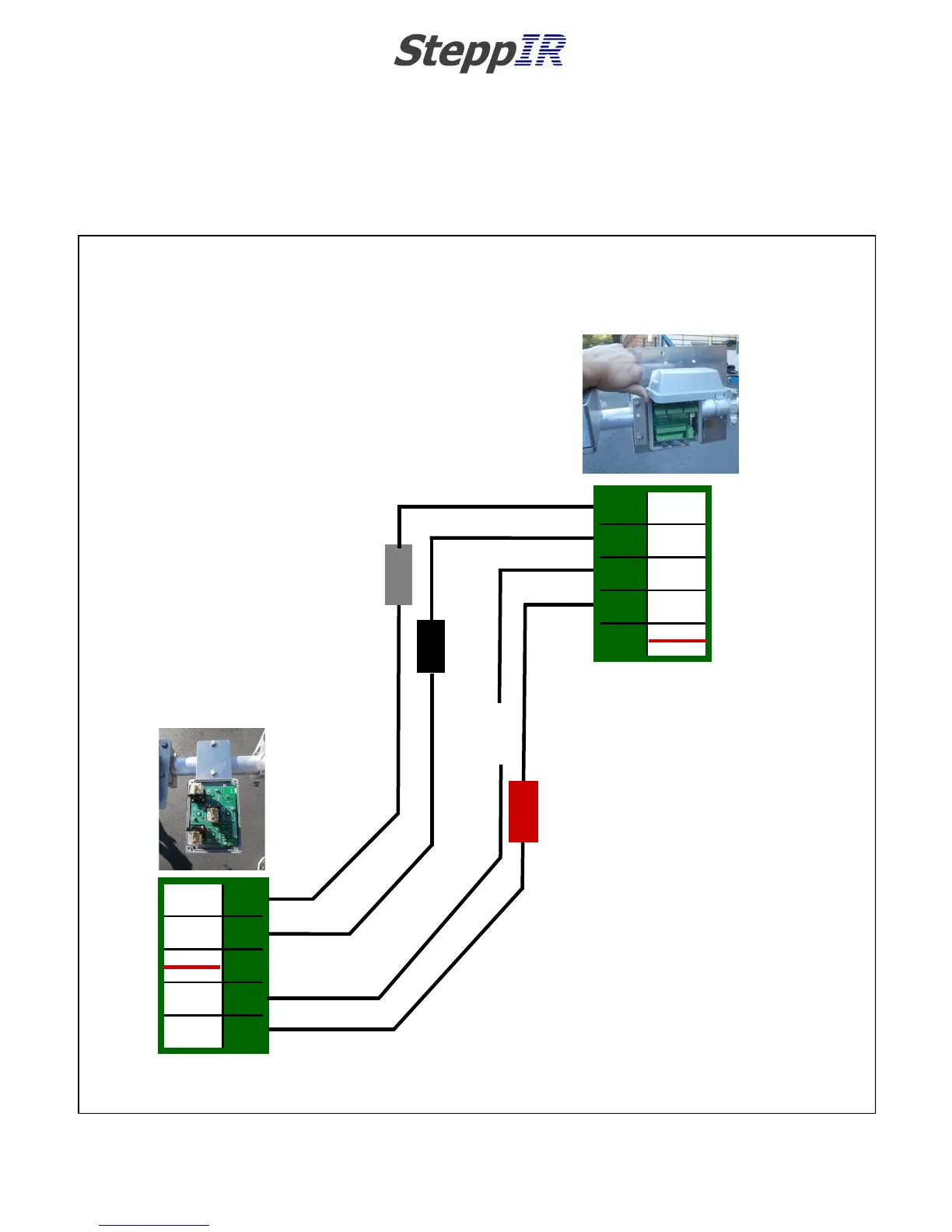

WIRING THE CONNECTOR JUNCTION BOX (continued)
CONNECT CONTROL CABLE FROM COAX SWITCH TO JUNCTION BOX
FIG. 5.16
