Preparing the pole tips for insertion into the loops
Prepare each of the 40/30 telescoping poles as shown in figure 6.08 for insertion into the plastic loops.
The telescoping poles for the non-loop elements do not require this preparation.
Secure 10 wraps of electrical tape 1.70 inches from the tip, as shown in figure 6.08, Step 1 and step 2.
This is used as a measuring stop to be certain you insert the pole in the proper depth. It is important to
NEATLY wrap the electrical tape so it has a clean edge.
Cut a 4 inch piece of blue silicone wrap off of the included roll. Wrap the silicone tape around the
pole in a clockwise direction – this is very important. Try to make the silicone tape wrap so that
it is flush with the electrical tape as shown in figure 6.08, Step 3. Firmly pull the silicone tape as you go
around the pole. The silicone tape will stick only to itself. This tape is used to form the seal between
the pole tip and the plastic sweep tube. The silicone tape will deform as you pull it, to about half it’s
original width–try to keep the edges as even as possible while you wrap it onto the pole tip.
Wrap the included 3M grip tape around the pole, flush with the edge as shown in figure 6.08, Step 4. Be
sure there is no overlap of the grip tape – it should be fine from the factory but the OD of poles varies
slightly, so if there is overlap, make sure you trim the tape so there is a gap, as shown in figure 6.08,
Step 4.
CHAPTER SIX
SECTION 6.0
EST PREPARATION (continued)
PREPARE THE TELESCOPING POLES FOR LOOP ELEMENTS (continued)

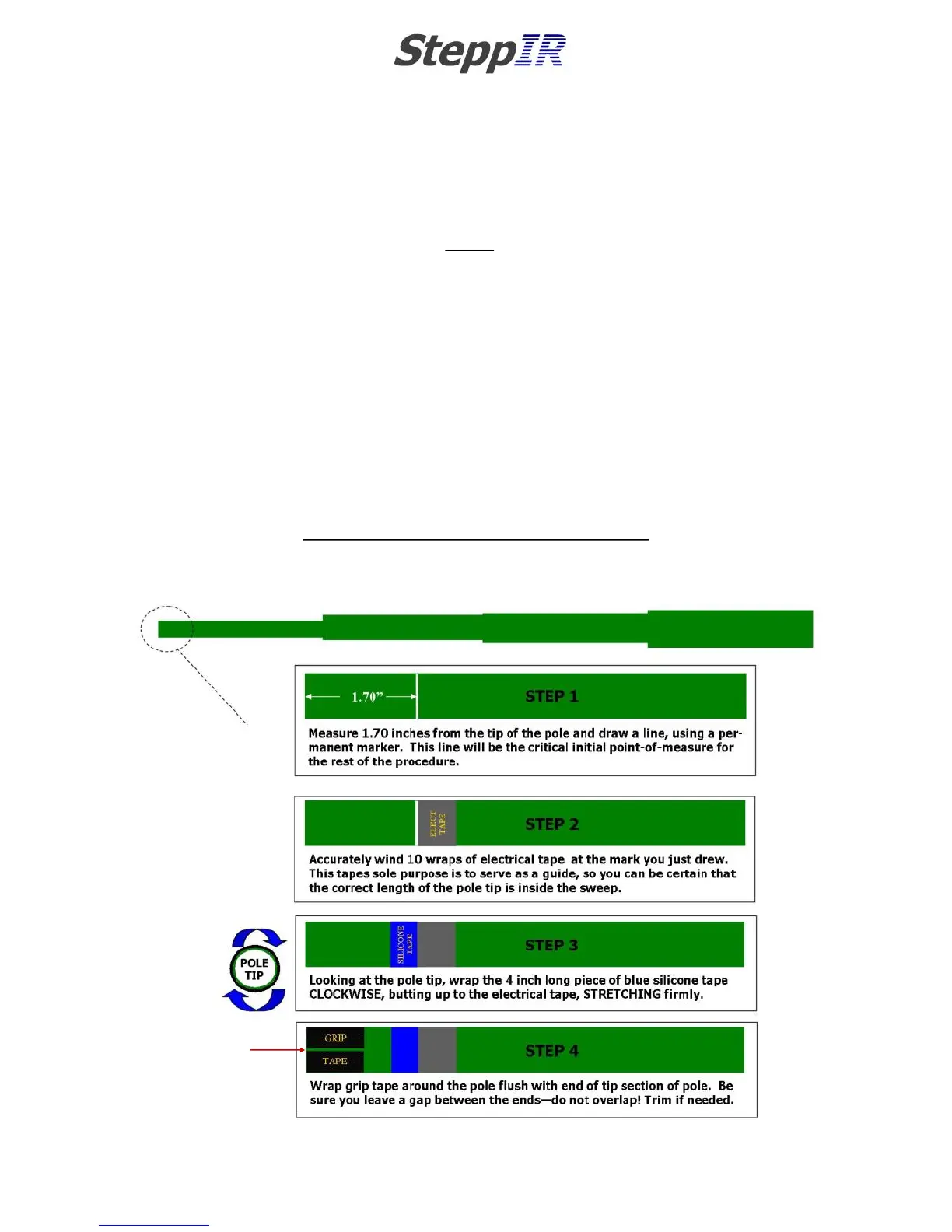

FIG. 6.08
GAP
To Next Page
