28
15 - 17 V
C26_03_01_0269
A1 WPMiw heat pump manager B1 Temperature sensor HP flow B2 Temperature sensor HP return B3 Temperature sensor heat source B5 Temperature sensor Heißgas E1 Electrical supplementary heater (DHC) F1 Low pressure limiter (only for WPW) F2 High pressure limiter F5 High limit safety cut-out for DHC K2 Contactor – compressor start
K4 Contactor - brine pump K5 Relay - supplementary heater K6 Relay - supplementary heater K7 Relay - supplementary heater K9 Relay Schütz klebt M1 Motor - compressor M2 Motor-pump M3 Diverter valve motorised P1 High pressure transducer P3 Low pressure transducer
X1 Terminals X2 Terminal LV X3 Mains supply X4 Terminals - control X11 Socket plug temperature sensor WPMiw X12 Socket plug WQ temperature sensor WPMiw X13 Socket plug mixer circuit temp. WPMiw X14 Socket plug remote control WPMiw X15 Socket plug BUS WPMiw X20 Socket plug pumps and ESC WPMiw
X21 Socket plug mixer control WPMiw X22 Socket plug external pump WPMiw X23 Earth block – mains supply X24 Earth block control X25 N block control X26 Earth block LV X27 Earth plug-in block X28 Socket terminal strip 9-pole X31 Terminal supplementary heater Z3 Supressor

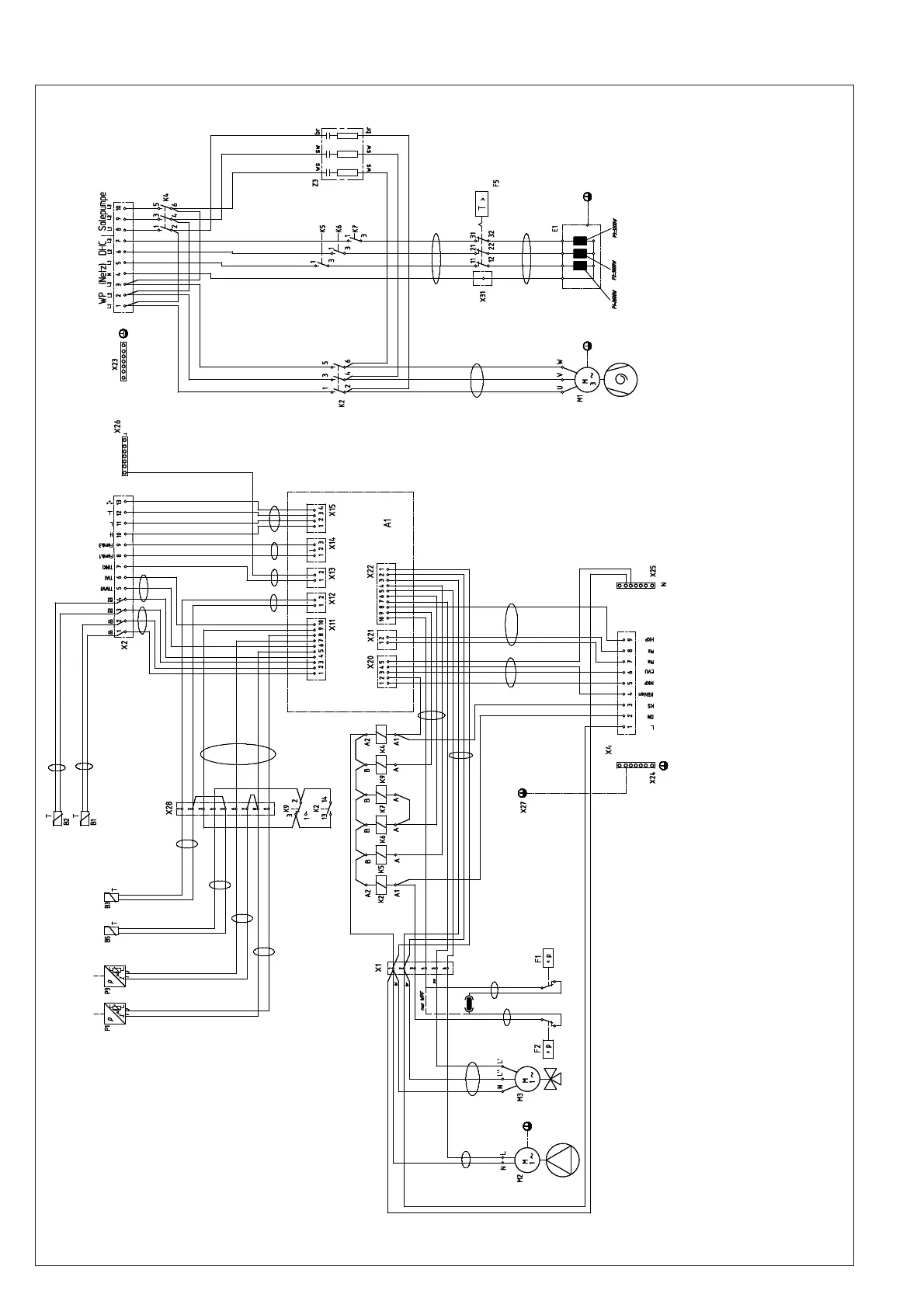

Wiring diagram WPF 5 (Triplephase)
