Release 00 - 11/2018
page 16
Engine WBE 170
Workshop Manual
WBE170 18162014 EURO(V)
484479-30/ME110003424/120
484479-30/ME110003424/120

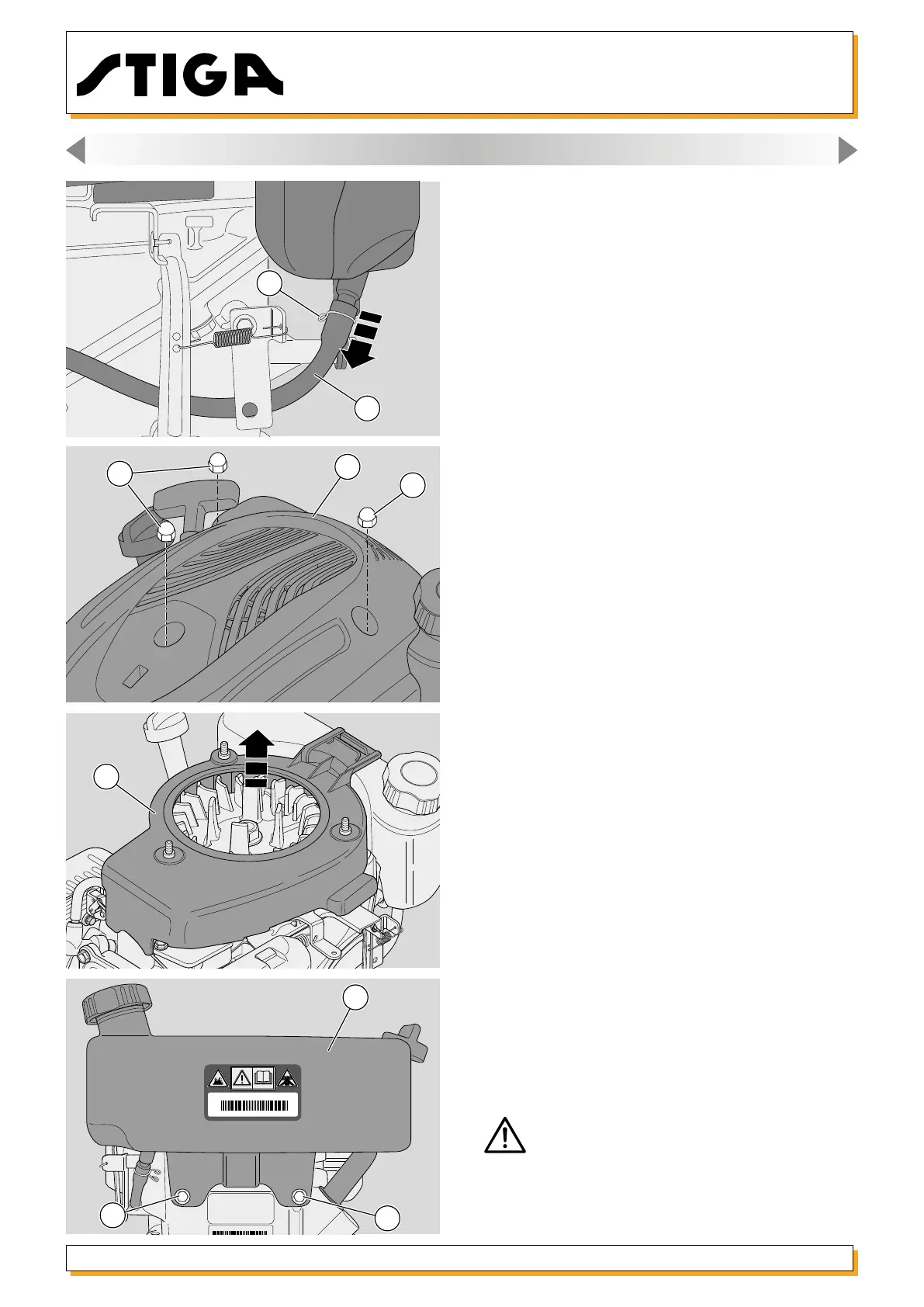

5.1. Emptying and removing the tank
1 - Remove the ring (1) of the petrol pipe (2) from
the tank side and drain all the fuel from the tank
and the pipe into a suitable container.
2 - Remove the cover (3) by unscrewing the three
nuts (4).
3 - Uncouple and remove the conveyor (5).
4 - Loosen the two rear screws (6) and remove the
tank (7).
5 - When tting, perform the above operations in
reverse
WARNING:Beforerellingthetankwithnew
fuel, check that the petrol pipe is intact.
5. TANK AND SUPPLY
7
6
5
6
1
2
3
4
4
