Release 00 - 11/2018
page 19

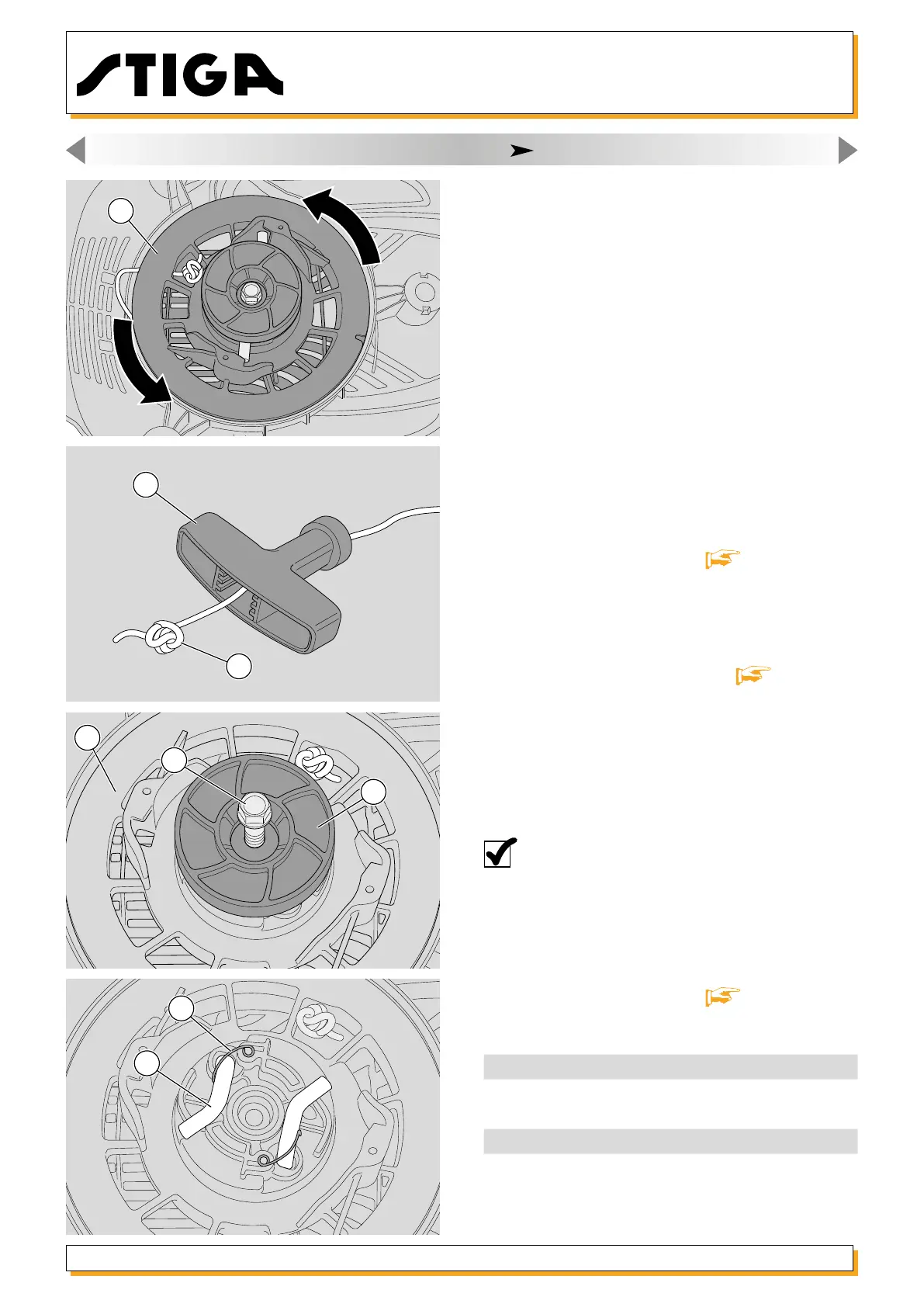

6. STARTING SYSTEM ( manual starter)
4 - Rotate the pulley (4) through about 7 complete
turns anticlockwise in order to load the spring and
hold it still.
5 - Insert one end of the rope (5) (ø 3,2mm - length
2200mm) through the guide in the ventilation grille,
into the hole in the pulley (4), and fasten it by tying
a knot.
6 - Insert the other end of the rope into the grip
(6), fasten it with a knot and carefully release the
pulley to allow the rope to rewind itself completely
onto the pulley.
7 - Check that the pulley rotates freely.
8 - After pulling the entire length of the rope, check
that the pulley (4) is able to complete another 2-3
turns before compressing the spring.
9 - Ret the starter assembly [ 6.1].
6.3. Replacing the hooks
1 - Remove the starter assembly [
6.1].
2 - Undo the screw (7) and remove the cover (8)
setting aside the spring. Take care that the pulley
(4) does not slide out of its housing.
3 - Move the return springs (9) gently out of the way,
rotate the hooks (10) clockwise and remove them.
NOTE: Always replace the complete set
consisting of hooks, return springs, cover and
screw, as a unit.
4 - When tting, tighten the screw (7) to the torque
indicated.
5 - Ret the starter assembly [
6.1].
Tightening torques
3
Fixing nuts, starter assembly
6-10 Nm
7 Starter screw 8-12 Nm
Technical information
Starter rope dimensions ø 3,2x2200 mm
6
5
4
7
8
9
10
4
