Release 00 - 11/2018
page 5
The purpose of this manual is to provide Service
Centres with the information needed to perform
maintenance on, disassemble and repair the WBE
170 engine.
Interventions on the engine must be performed in
accordance with instructions in the following pages
and with safety regulations in force in the country in
which the engine is operated, and only by authori-
sed and appropriately trained personnel.
In every manual page the following informations
are described:
Release 00 - 11/2018
page 16
Engine WBE 170
Workshop Manual
WBE170 18162014 EURO(V)
484479-30/ME110003424/120
484479-30/ME110003424/120
5.1. Emptying and removing the tank
1 - Remove the ring (1) of the petrol pipe (2) from
the tank side and drain all the fuel from the tank
and the pipe into a suitable container.
2 - Remove the cover (3) by unscrewing the three
nuts (4).
3 - Uncouple and remove the conveyor (5).
4 - Loosen the two rear screws (6) and remove the
tank (7).
reverse
WARNING: Before the tank with new
fuel, check that the petrol pipe is intact.
5. TANK AND SUPPLY
7
6
5
6
1
2
3
4
4

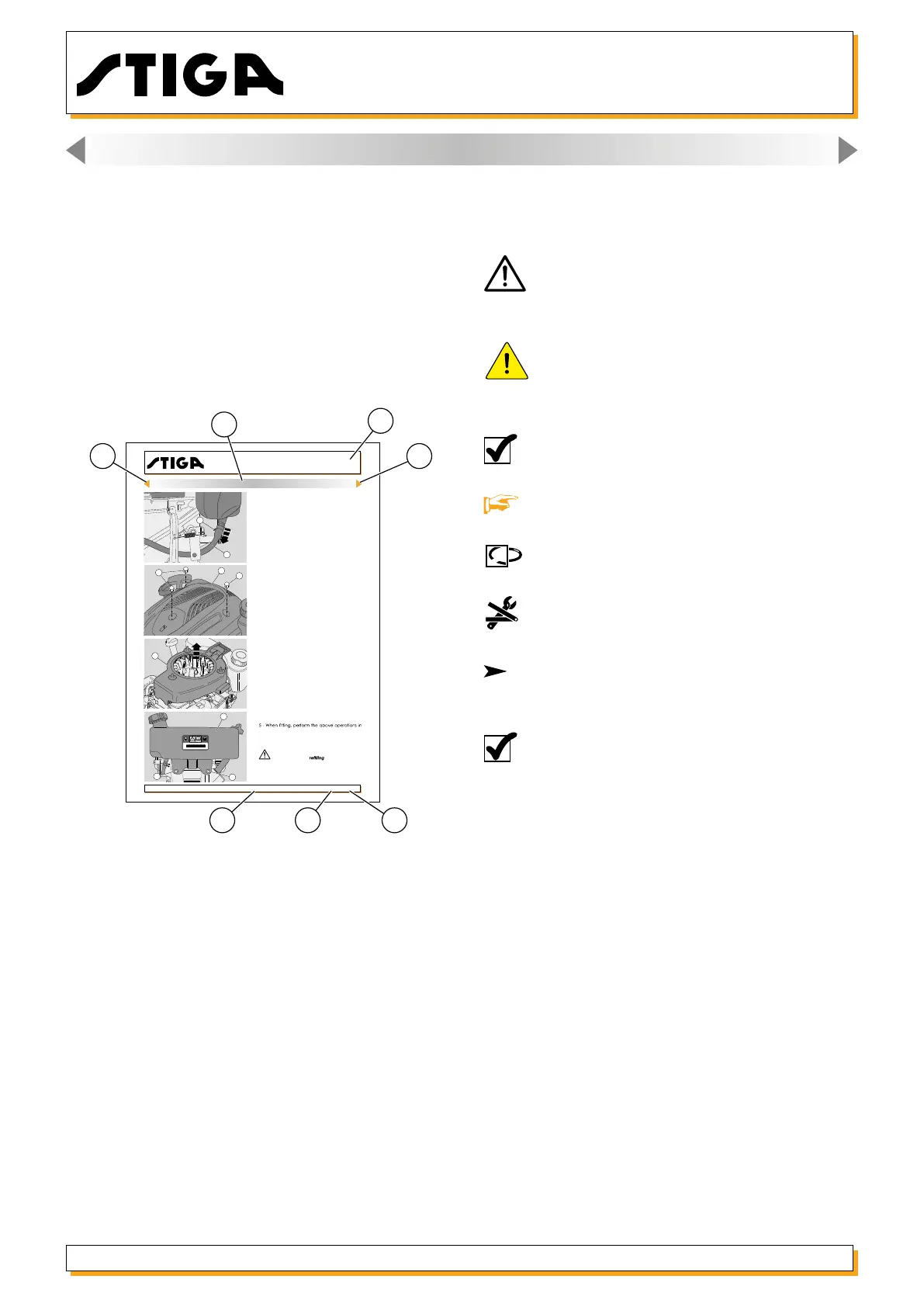

A: Motor typ for which the page is valid.
B: Reference to the chapter and the argument
with the relative numbering.
C: Presence of previous or following chapters from
the present chapter.
D: Issue date or possible audit.
E: Audit number.
F: Page progressive numbering.
Certain symbols are used in the manual, highlighting
particularly important information, risks, warnings
and prescriptions:
Warns of operations that should be carried
out with utmost care to avoid impairing the
functionality and safety of the lawnmower.
Warns of operations that should be carried
out with utmost care to avoid injury to the
operator.
NOTE:Referstospecicadvicebythema-
nufacturer.
Reference to another procedure or part of
the manual.
Recommends that washers and O-rings are
checked and replaced if necessary.
Refers to use of special tools.
Shows all the operations requiring different
intervention methods depending on the en-
gine version.
NOTE: During the description of procedures,
the indications “right”, “left”, “front”, “rear”,
“upper” and “lower” refer to the engine
mounted on the lawn tractor seen from the
user’s perspective.
Please read all the contents of this manual to be-
come familiar with the basics of the engine, which
is fundamental for operating in a logical manner
without making errors or wasting time.
INTRODUCTION
A
B
C C
DEF
