Release 00 - 11/2018
page 38
Engine WBE 170
Workshop Manual
14. EXHAUST SYSTEM
General information
The exhaust system consists of a mufer installed on the cylinder with a guard and an inserted gasket.
To solve problems in the exhaust system, see the relevant chapte [
17].

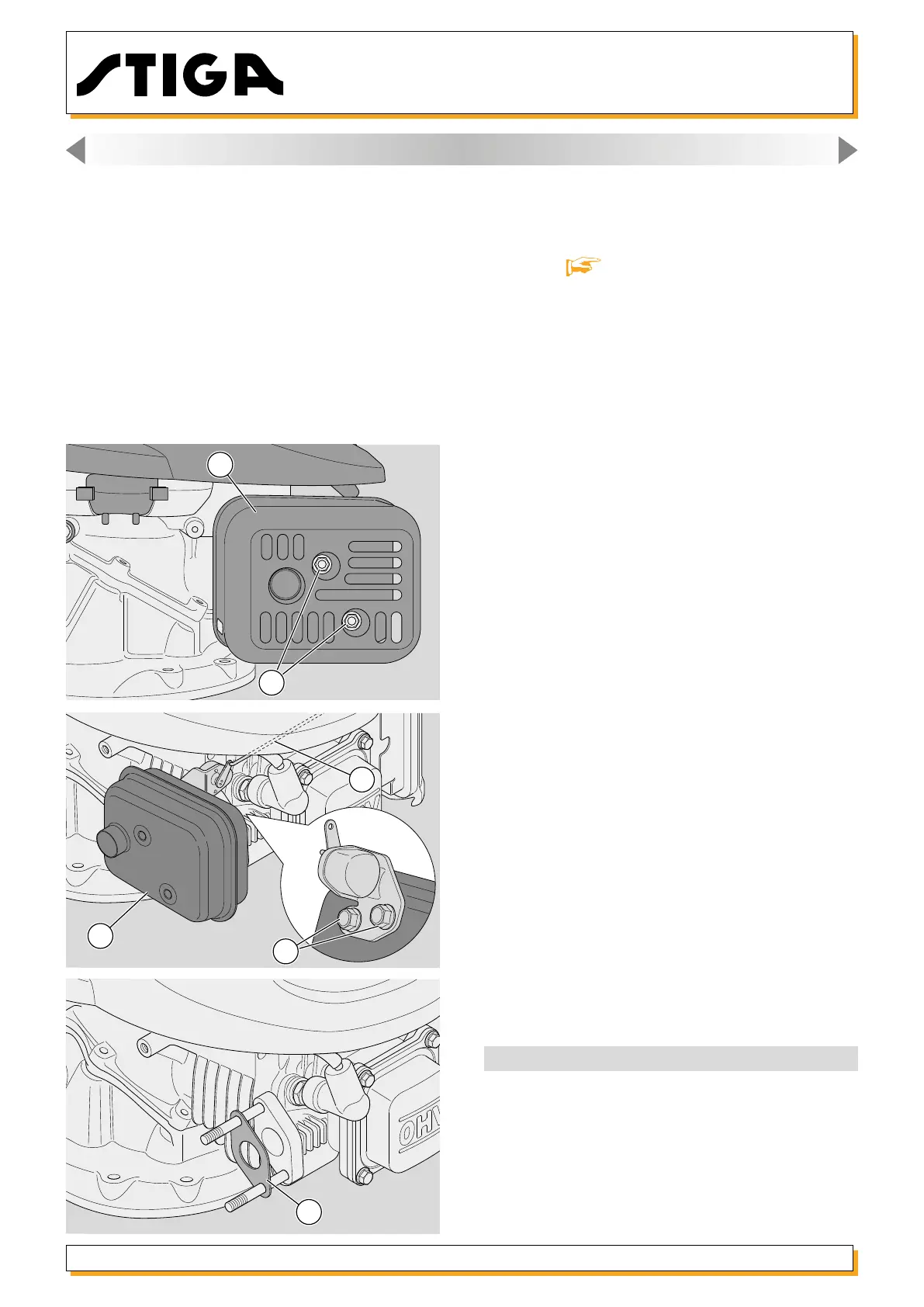

14.1. Removingandreplacingthemufer
1 - Remove the two screws (1) securing the mufer
guard (2).
2 - Pull the mufer (3) out by releasing the lever (4)
from the AUTO-CHOKE system.
3 - Loosen the two screws (5) and remove the AUTO-
CHOKE system from the mufer.
4 - Remove the gasket (6).
5 - On assembly:
- thoroughly clean the cylinder contact surface,
removing all deposits or fragments on the heat-
proof bafe;
- always replace damaged mufers;
- replace the gasket (6) if damaged;
- perform the disassembly operations in reverse
order by tightening the screws (1) and (5) to the
prescribed values.
Tightening torques
1
Mufer protection xing
screws
8-12 Nm
5 Fixing screw AUTO-CHOKE 5-7 Nm
2
3
4
6
5
1
