Stiga WBE170 Workshop Manual

Release 00 - 11/2018
page 22
Engine WBE 170
Workshop Manual
General information
The intake system uses an air lter directly connected to the carburettor by means of a manifold which
conveys the air/petrol mixture to the inlet valve.
See the relevant section [
17] for advice on resolving problems due to the malfunctioning of the air
intake system.
Aninefcientltercanletdustordebrisenterthecylinder,causingprematureweartothepistonringsand
cylinder.
The air lter is found on the left hand side of the engine and can be inspected without having to remove
other parts.
The lter assembly is to be removed only to accede the carburettor.

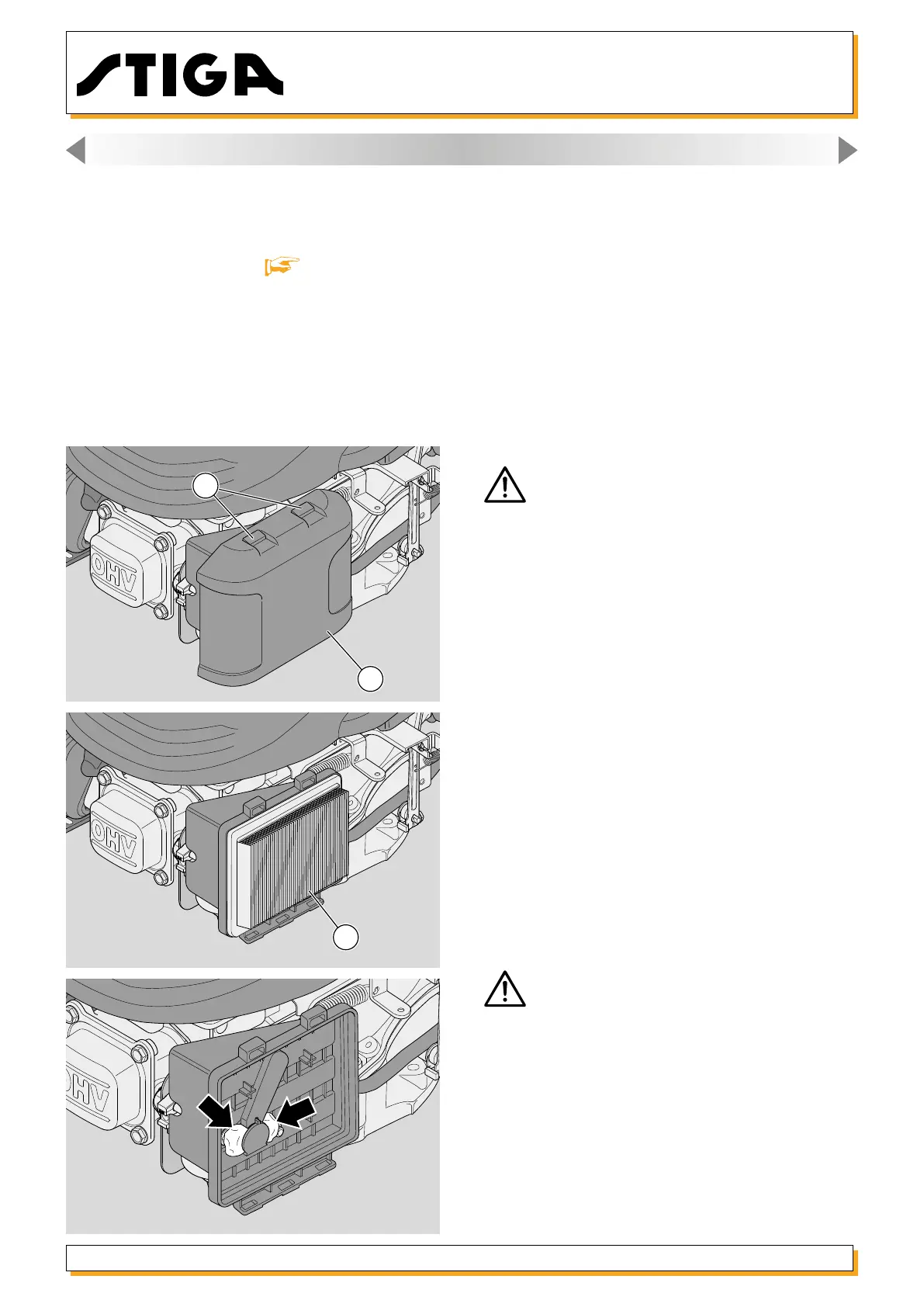

8. INTAKE SYSTEM
8.1. Maintenanceoflteringelement
WARNING: Never run the engine without air
lter.Theenginewouldcertainlybedama-
ged.
1 - Clean the area around the lter cover (1) by
blowing it with compressed air.
2 - Remove the cover (1) by exerting pressure on
the two upper tongues (2) and remove the lter
element (3).
3 - Check carefully that the element has no holes
or tears, and replace it if it is damaged.
WARNING:Whenthelterelementisremo-
ved the intake duct should be covered to
avoid foreign bodies from entering. (see the
gure).
2
1
3
<< BACK >>
INDEX
