Stiga WBE170 - Disassembly and Cleaning the Starter Motor Pinion

Release 00 - 11/2018
Engine WBE 170
page 21
Workshop Manual
7. STARTING SYSTEM ( electric starter)
2
1
3
7.2. Disassembly and cleaning the starter motor
pinion
1 - Remove the starter motor [
7.1].

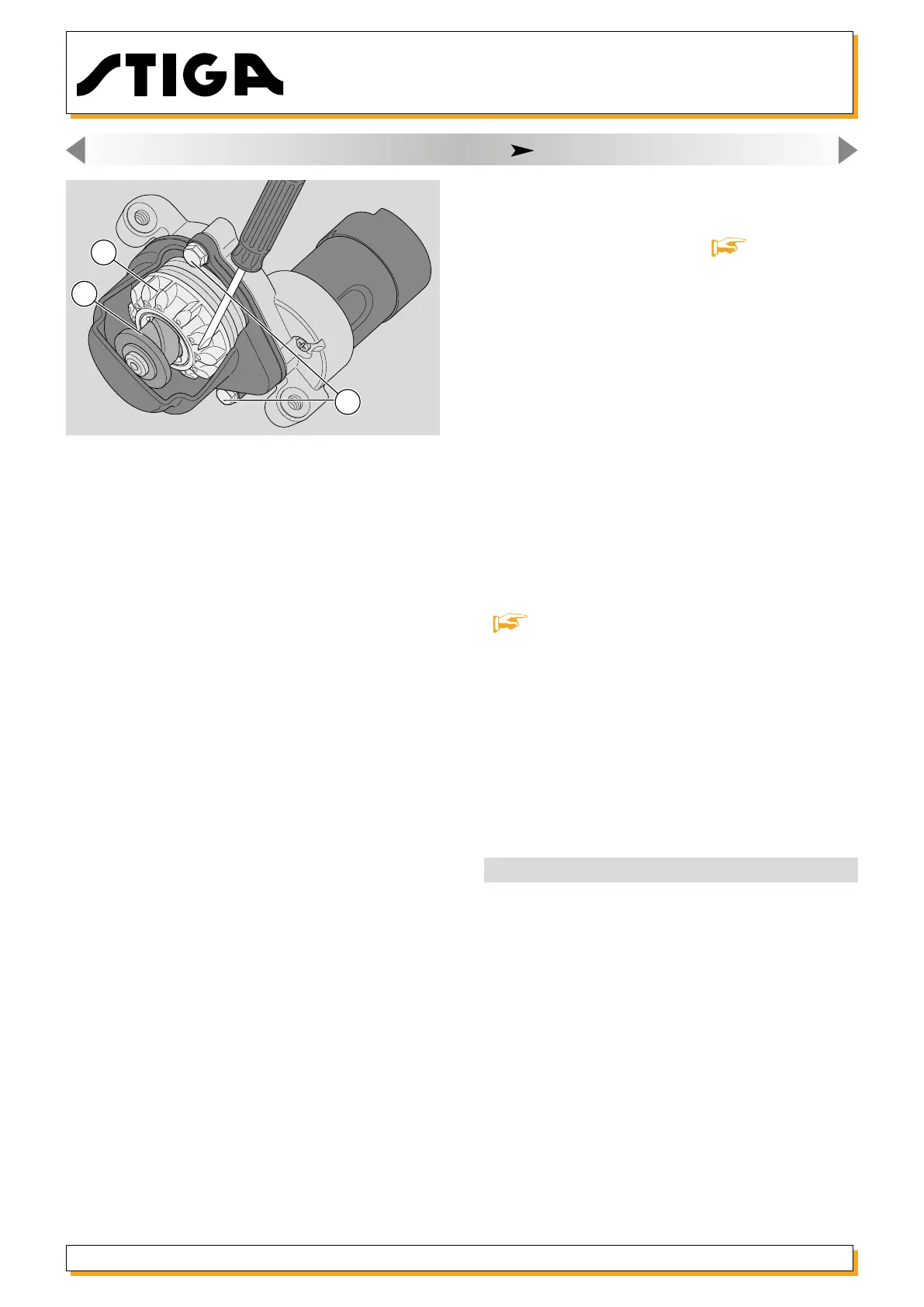

2 - Use a screwdriver to rotate the pinion (1) to
check that it spins and moves co-axially and can
compress the spring (2).
3 - In case the full movement is impeded by dirt:
- remove the dirt by using compressed air;
- spray with lubricant and repeatedly move the
pinion;
- when the movement becomes smooth clean with
compressed air;
- spray again with lubricant.
Avoid using grease or oil as it causes dirt to accu-
mulate.
If the motor becomes noisy it should be replaced
[
7.1].
4- Remove the pinion assembly by undoing the
screws (3) and check the condition of the gears
(Replace the pinion assembly if there is any da-
mage).
Tightening torques
3 Starter motor mounting screws
22-30 Nm
