Release 00 - 11/2018
Engine WBE 170
page 33
Workshop Manual

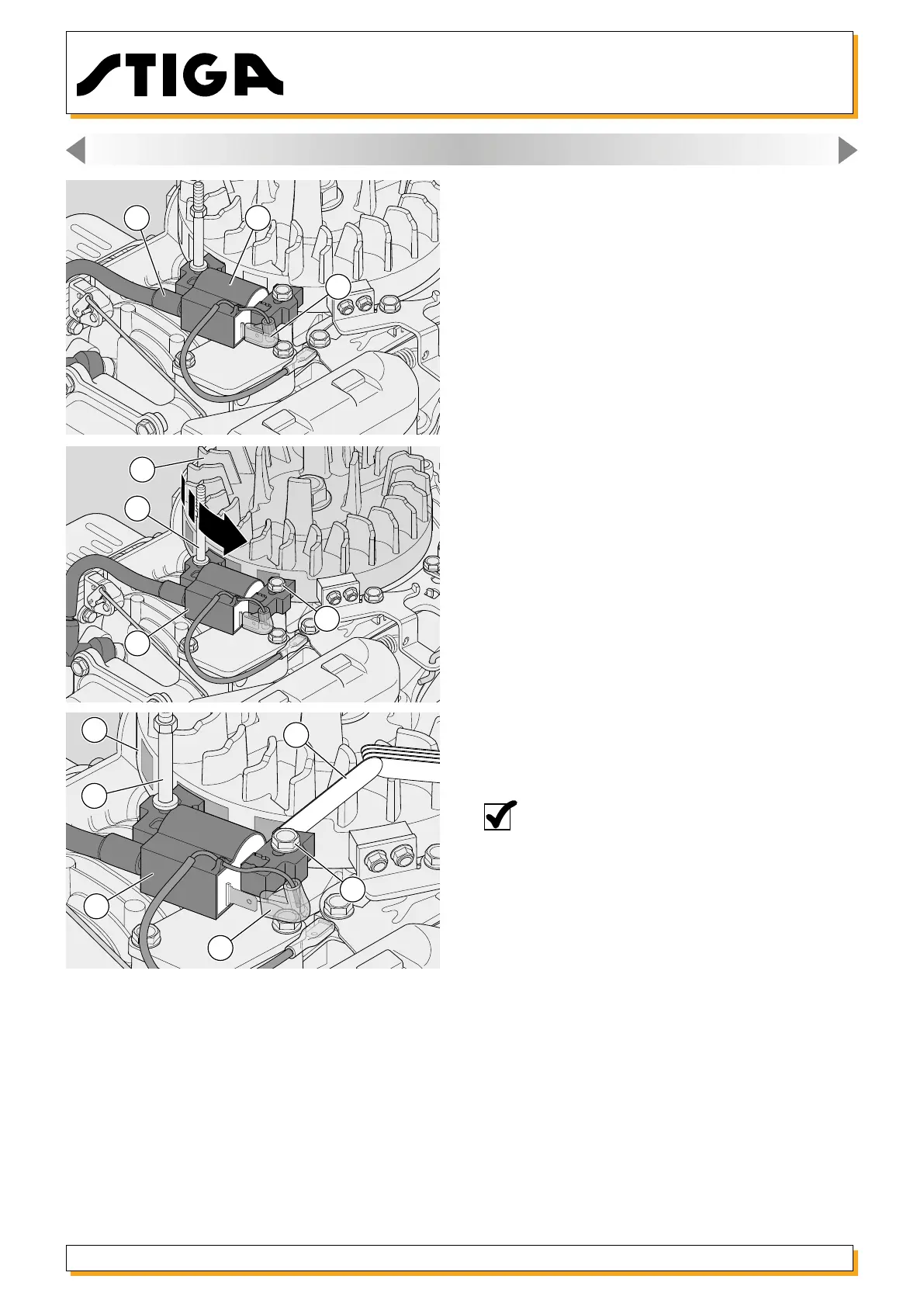

12.3. Adjusting the air gap and checking the coil
1 - Remove the cover and uncouple the conveyor.
2 - Make sure that the earth cable faston (10) of the
coil (11) is not oxidized; if it is, disconnect, clean and
remount it, spraying it with a special antioxidant.
3 - Check that the coil earth cable is intact. The
black spark plug cable (12) should not have any
cracks or signs of deterioration or burns which re-
duce its efciency and insulation level.
4 - Slack off the screw (13) and the stud (14) which
secure the coil (11).
At the bottom of the mach ine to which the engine
is tted, release the safety brake.
Rotate the ywheel (15) so as to bring the magnetic
inserts next to the poles of the core of the coil.
5 - Insert a 0,4 mm thickness gauge (16) between
the complete ywheel (15) and the coil poles (11),
push the coil until the poles come in contact with
the thickness gauge and secure screw (13) and
stud (14); with the ywheel locked, the airgap must
be 0,4 ± 0,05 mm.
NOTE: An accurate inspection of the ef-
ciency of a coil can only be carried out in a
laboratory equipped with a oscilloscope.
To make a brief check, proceed as follows:
6 - Disconnect the earth cable faston (10) of the
coil (11).
12. IGNITION
0,4 ± 0,05 mm
11
11
11
12
15
14
14
15
13
10
10
16
13
