Release 00 - 11/2018
Engine WBE 170
page 37
Workshop Manual
6

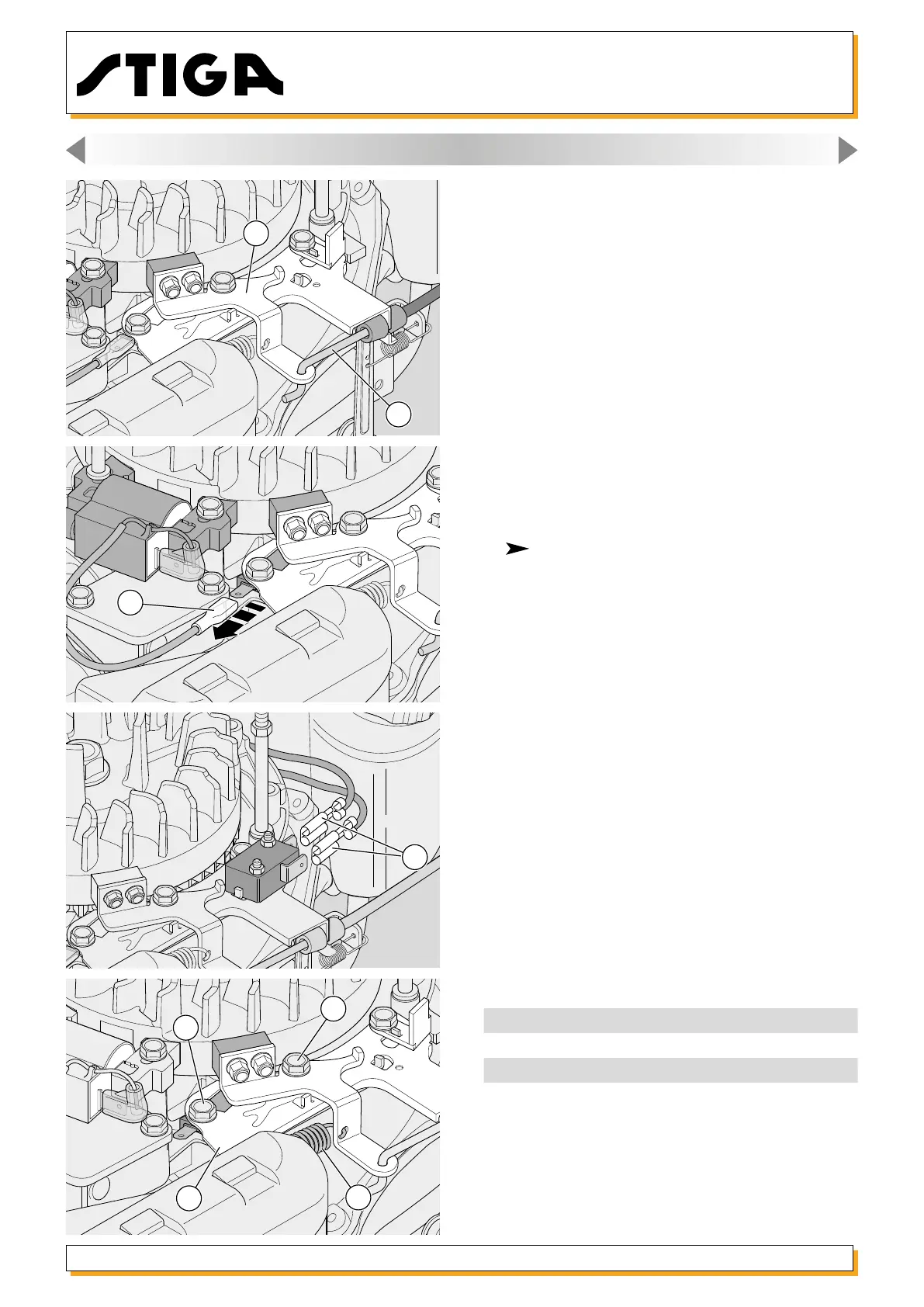

13.4. Replacing the system for turning off and stop-
ping the engine
1 - Remove the cover and uncouple the conveyor.
2 - Disconnect the brake wire (2) from the lever (3).
3 - Disconnect the earth cable Faston connector
(6).
4 -
Version with electric starter: Disconnect the
two Faston connectors (9).
5 - Loosen the two screws (10) and remove the
spring (11). Remove the support bracket (5).
6 - When tting, perform the above operations in
reverse, tightening the screws (10) to the torque
indicated.
7 - Reassemble the conveyor and the cover.
8 - Start the motor and bring it to operating tem-
perature; release the lawnmower lever and check
that the engine stops within 3 seconds.
Tightening torques
10 Brake support screws 8-12 Nm
Special equipment
7 Universal tester
10
10
5
11
13. TURNING OFF AND STOPPING THE ENGINE
9
3
2
