Release 00 - 11/2018
page 32
Engine WBE 170
Workshop Manual

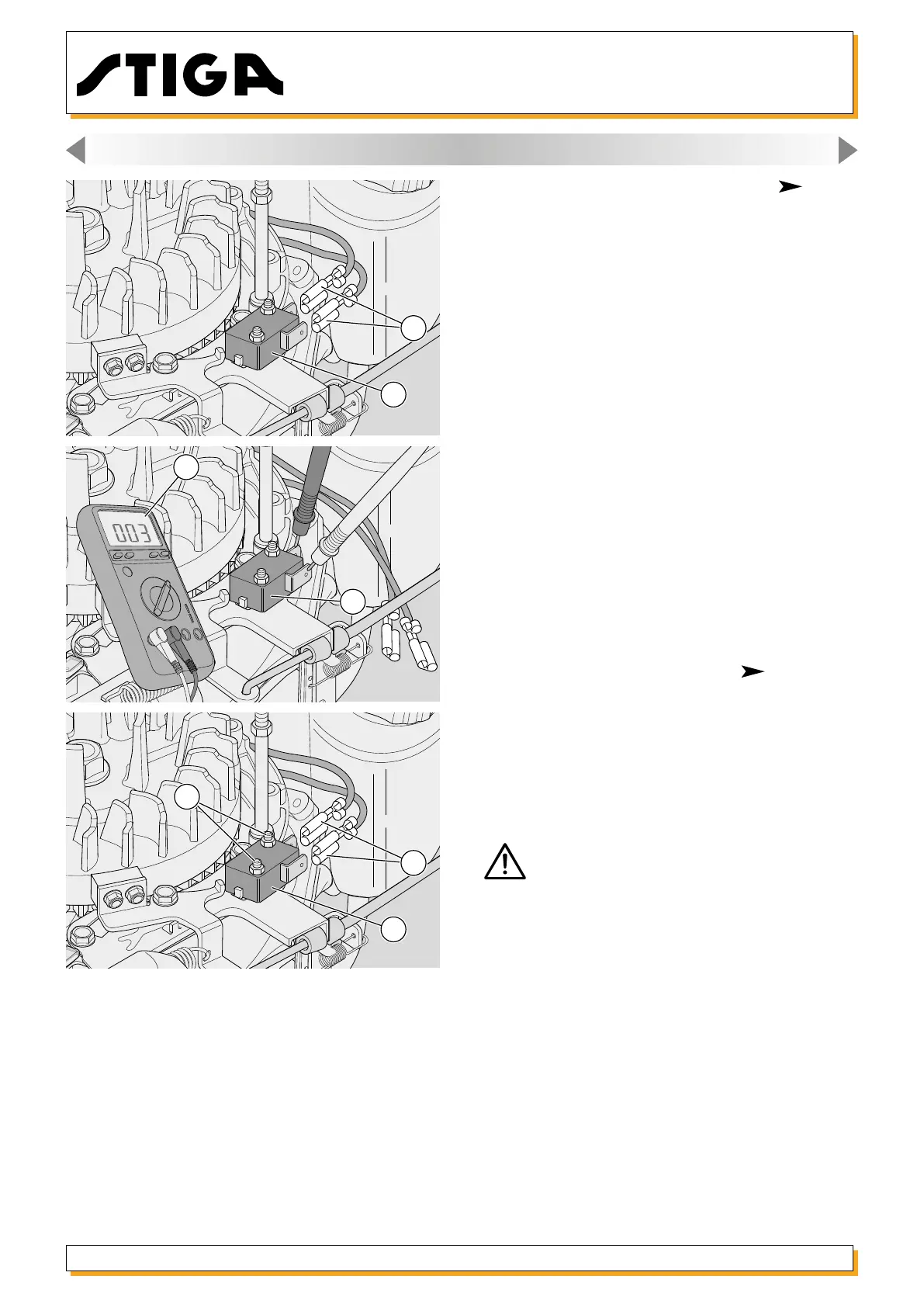

12. IGNITION
12.2. Checking the starter micro switch ( version
with electric starter)
1 - Disconnect the two connectors (6).
2 - Using an Ohmmeter tester, (7) make contact
with the prods on terminals of the microswitch (8).
the instrument should read:
- 0 = microswitch pressed (lever pulled);
-
= microswitch free (lever released);
Otherwise, the micro switch needs replacing. (8).
12.2a. Replacing the micro switch ( version with
electric starter)
1 - Disconnect the two connectors (6) of the starter
motor micro switch (8).
2 - Remove the two nuts (9) and replace the micro
switch (8).
WARNING! The starter motor micro switch
should be tested before the machine is de-
livered to the customer.
8
7
9
8
8
6
6
