Release 00 - 11/2018

Engine WBE 170

page 25

Workshop Manual

9. CARBURATION

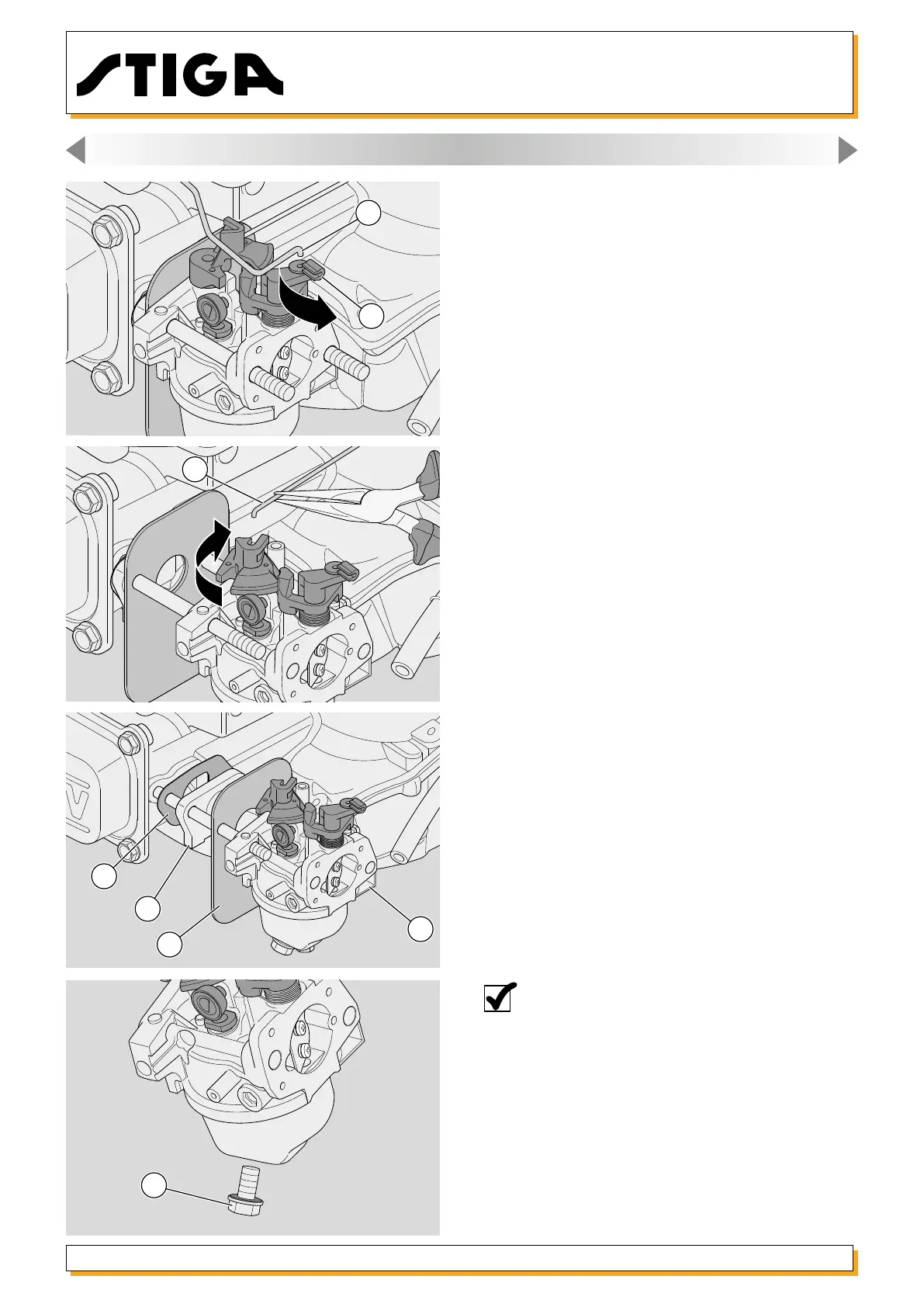

6 - Remove the tie rod (6) of the AUTO-CHOKE lever

by releasing the locking clip (7). Slightly pull out the

carburettor to facilitate the release of the intake

buttery shaft.

7 - Rotate the buttery valve clockwise 90° and,

using pliers, disconnect the intake buttery rod (8).

8 - Completely remove the carburettor (9) the ga-

sket (10), the spacer (11) and the heat protection

gasket (12).

NOTE: Empty any remaining petrol from the

tank by removing the drain screw (13) as

showninthegure.Whennished,replace

the screw.
