10. GOVERNOR SYSTEM OF THE CARBURETTOR

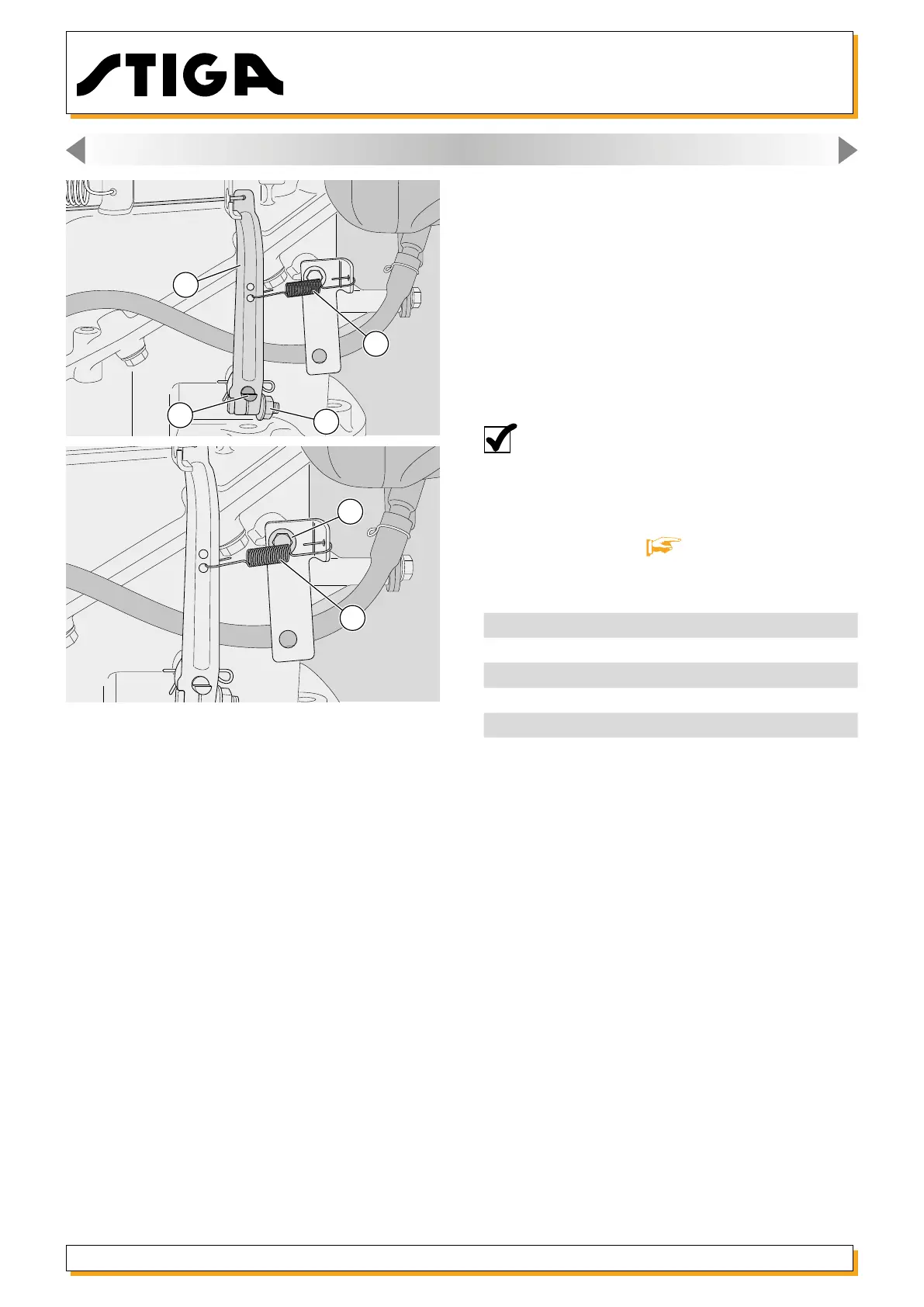

4 - If the above checks do not show any faults,

the phasing of the governor’s control lever (5)

with respect to the counterweight device must be

checked:

- stop the engine and make sure that the lever (5)

is in the end run position;

- slacken off the control lever (6) locknut (5);

- without changing the position of the lever (5), ro-

tate the pin (7) clockwise with pliers up to the limit

switch, then lock the nut (6).

 NOTE:Iftheplate(2)isdamaged,replaceit

bydisconnectingthespring(3)andremo-

vingthescrew(8).

5 - Adjust the speed [

10.1].

Tightening torques

8 Fixing plate screws 5-7 Nm

Technical information

Speed

2900 (±100) g/1’

Special equipment

1 Speed indicator
