Engine WBE 170
Workshop Manual

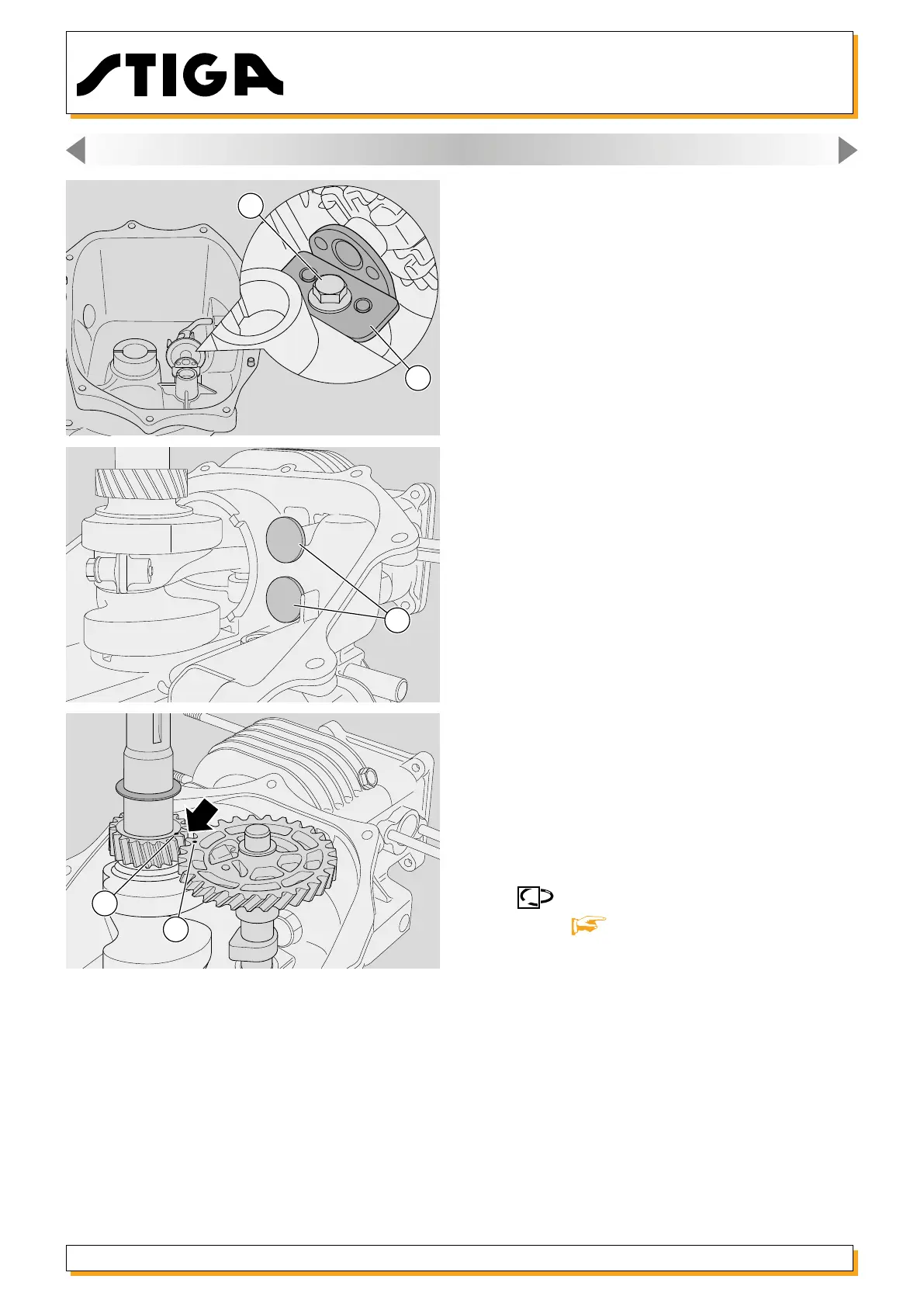

16. ENGINE BLOCK - Overhauling internal parts
9- In the case of breakage or irregular operation
of the counterweights the whole group, xed by
a plate (13) and a screw (14) must be replaced.
10 - Before tting the camshaft ensure that the two
tappets (15) are correctly housed in their seats.
11 - When retting the camshaft, maximum care
must be taken to match up the two references (16)
and (17) punched on the gears, so as to ensure
correct distribution phasing.
12 - During assembly, refer to the operations
in section [ 16.1] always remembering to re-
place the silicone gasket (6) between the sump
and the guard.
14
13
15
17
16
