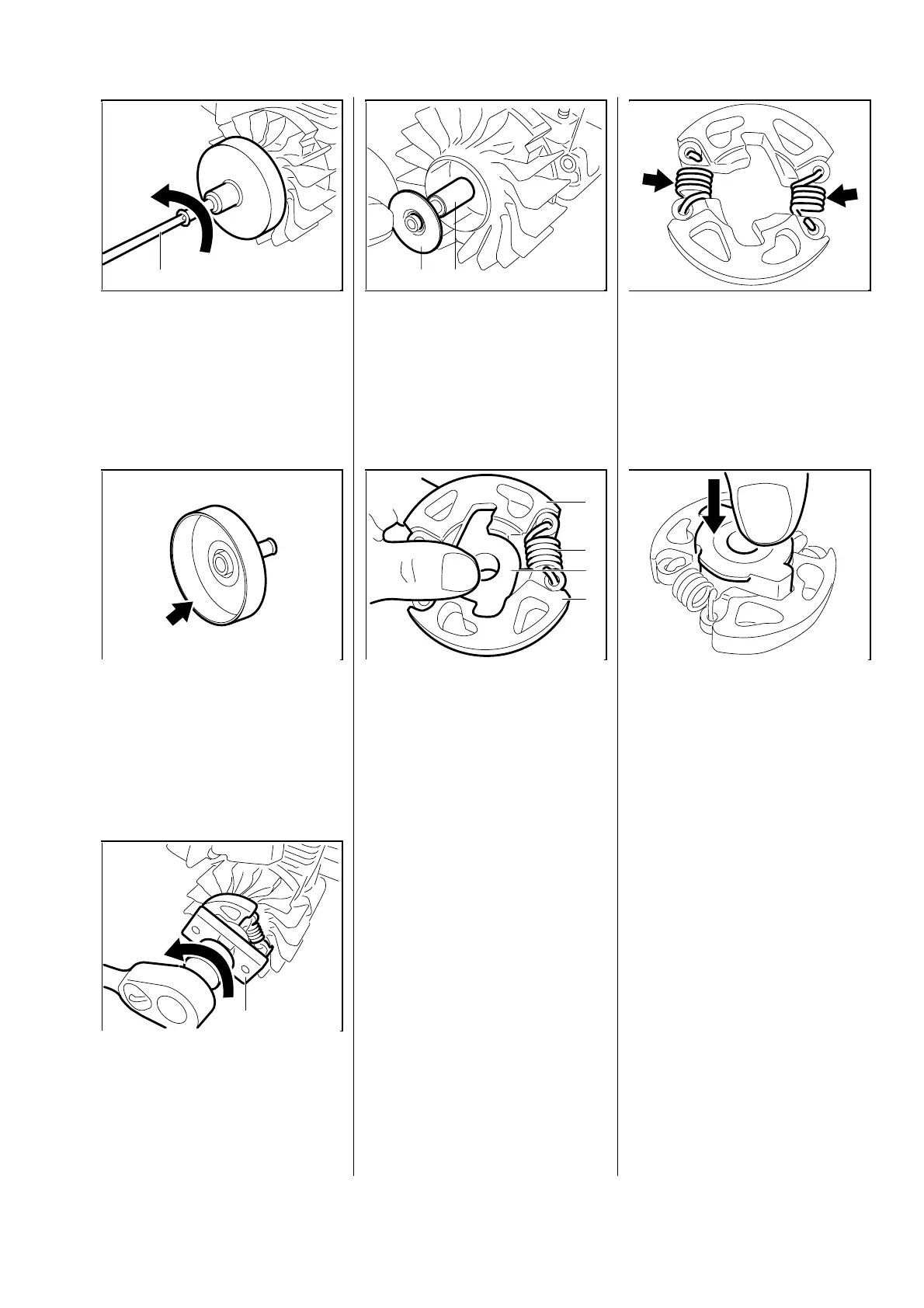

Use socket (1) 0812 540 1112 to
unscrew clutch drum screw.
- Remove clutch drum.
•
Examine the clutch drum. It must
not be scored or worn.
Important: If there are signs
of serious wear on the inside
diameter, fit a new clutch drum.
•
Push pins of wrench (1)
4130 890 3600 into semicircular
recesses in the clutch.
•
Unscrew the clutch.
•
If necessary, remove washer (1)
and spacer sleeve (2) from the
crankshaft.
Note: Clutch shoes, carrier
and springs are supplied as
a complete assembly (clutch).
Clutch springs can be replaced.
•
Push the carrier (1) out of the
clutch shoes (2).
•
Detach the clutch springs (3).
Important: Clutch springs must
always be replaced in pairs.
Installing
•
Attach springs to the clutch
shoes exactly as shown in the
illustration.
Important: They must not project
sideways.
•
Hold carrier at an angle. Pull
clutch shoes slightly apart. Press
the carrier into position.
- Refit the spacer sleeve and
washer, if removed, on the
crankshaft stub.
VA
232RA010
1
VA
232RA013
1
2
VA
232RA015
VA
232RA011
VA
235RA014
2
3
2
1
VA
232RA016
VA
232RA012
1
FS 45 7

Stihl FS 45 Specifications

General

Engine Displacement	27.2 cc
Power Output	0.75 kW
Cutting Diameter	380 mm
Engine Type	2-stroke
Shaft Type	Curved
Fuel Capacity	0.33 liters
Fuel Tank Capacity	0.33 liters
Cutting Width	380 mm
Engine Power	1.0 bhp
Vibration Levels Left/Right Handle	5.5/5.5 m/s²
