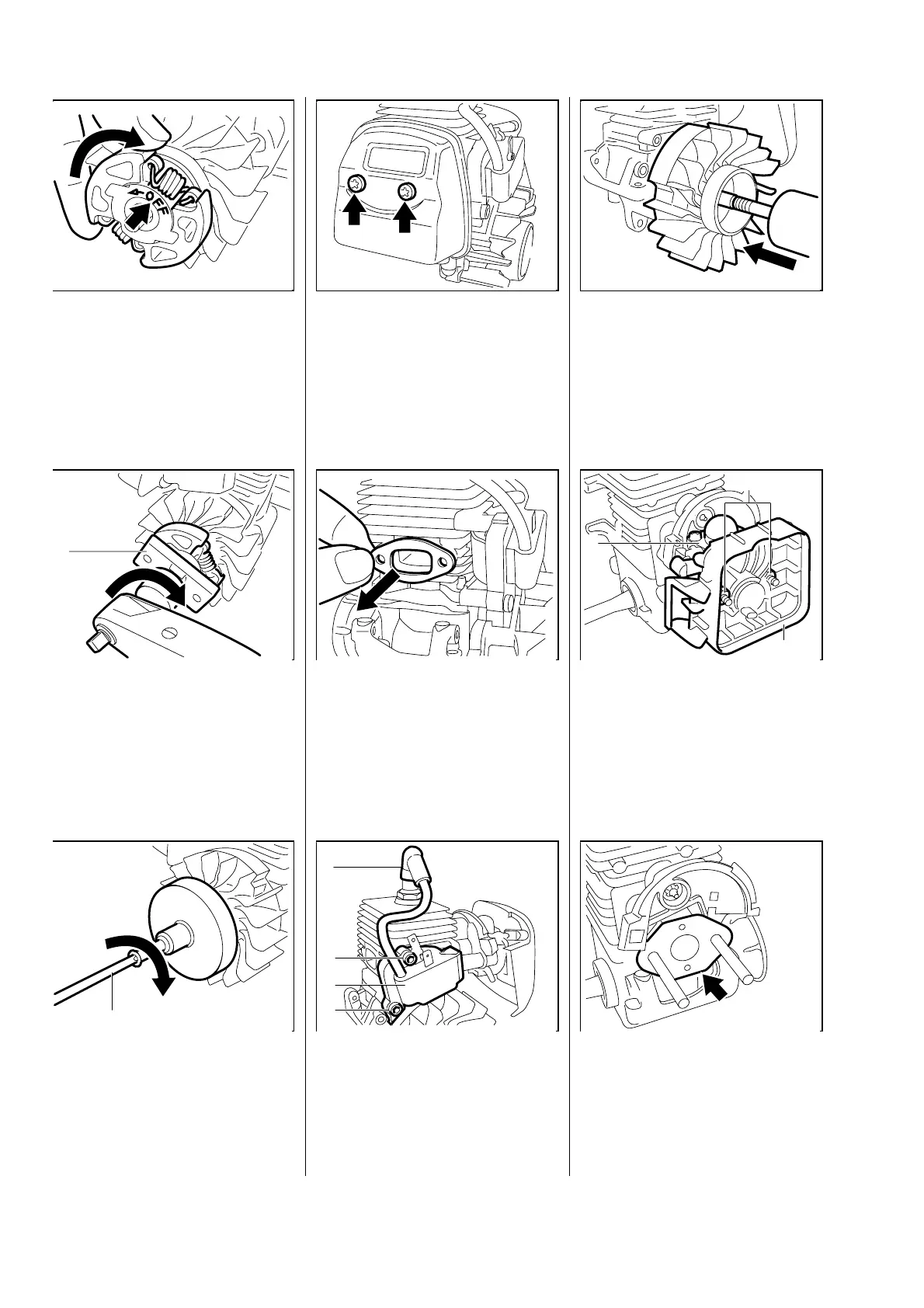

Fittheclutchclockwisesothat
thearrowandtheword"OFF"
faceoutwards.
•
Fitwrench(1)41308903600
andtightendownclutchto17.0
Nm(12.5lbf.ft).
Assembleallotherpartsinthe
reversesequence.
•
Usesocket(1)08125401112to
tightendownclutchdrumscrew
to4.0Nm(3.0lbf.ft).
-Removetheclutch-see4.1.
•
Takeoutthescrews.
-Removethemuffler.
•
Removethegasket.
•
Pulloffthesparkplugboot(1).
•
Takeoutthescrews(2).
•
Removetheignitionmodule(3).
•
Freeofftheflywheelbylightly
tappingtheendofthecrankshaft
stubwitharubbermallet.
-Pullofftheflywheel.
-Removethefiltercoverand
takeoutthefeltfilterelement-
see9.1.
•
Unscrewthenuts(1).
•
Pulloffthefilterhousing(2)and
carburetor(3).
•
Removethegasket.
VA
232RA017
VA
232RA020
VA
232RA023
VA
232RA018
1
VA
232RA021
VA
232RA024
2
3
1
VA
232RA019
1
VA
232RA022
1
2
3
2
VA
232RA025
5. ENGINE
5.1 Replacing
8 FS45

Stihl FS 45 Specifications

General

Engine Displacement	27.2 cc
Power Output	0.75 kW
Cutting Diameter	380 mm
Engine Type	2-stroke
Shaft Type	Curved
Fuel Capacity	0.33 liters
Fuel Tank Capacity	0.33 liters
Cutting Width	380 mm
Engine Power	1.0 bhp
Vibration Levels Left/Right Handle	5.5/5.5 m/s²
