Stihl HSE 71 User Manual

9HSE 61, HSE 71, HSE 81

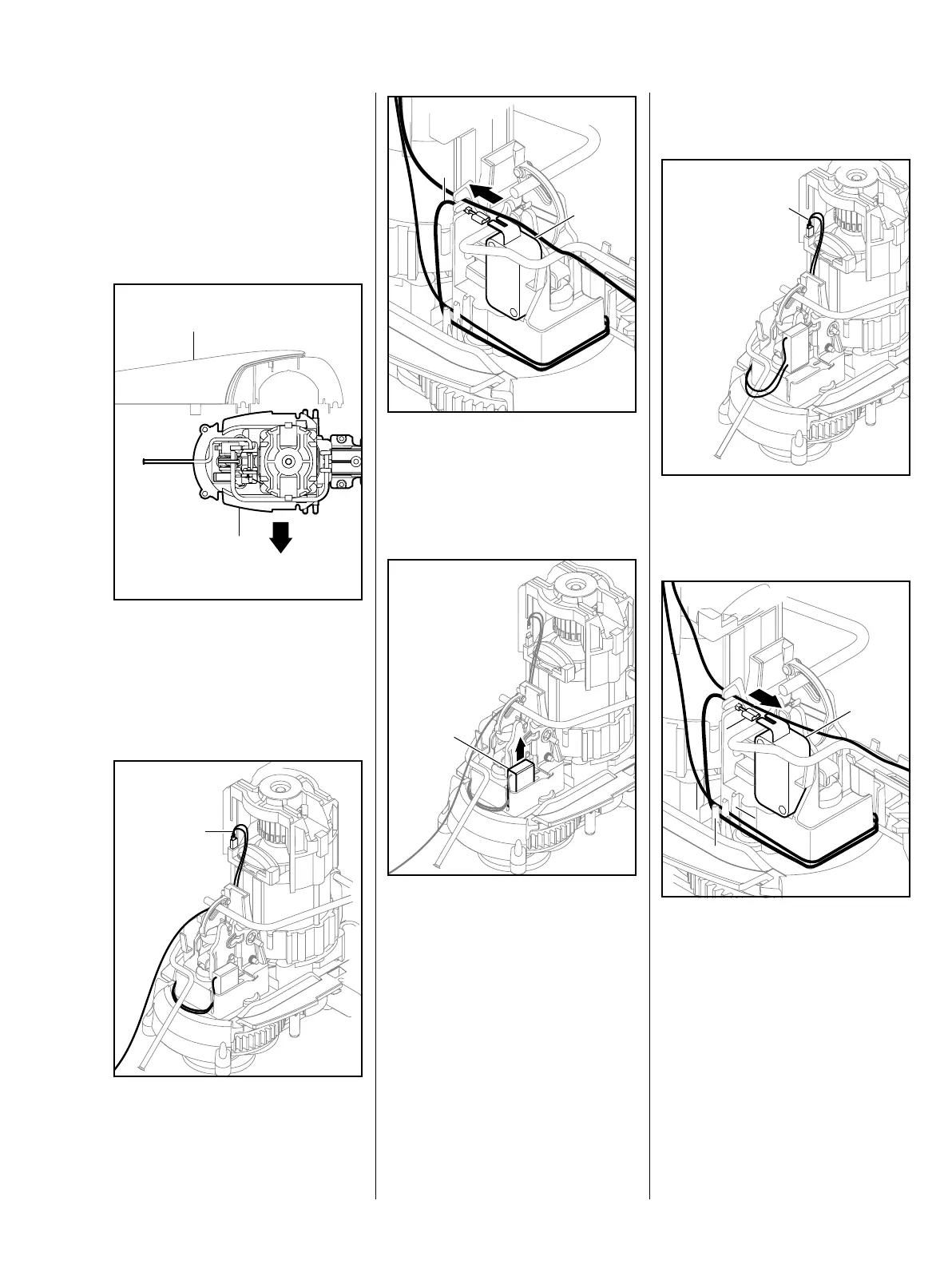

3.4.3 Removing the wiring
harness with capacitor
– Open the housing, b 6.1.
– Open the rear handle, b 6.4.1.
– Disassemble the rear handle,
b 6.4.2.
: Take the gear housing (1) with its
components out of the motor
housing (2). Pull off the gearbox
housing (1) in the direction of the
arrow.
: Disconnect the black wire (1)
from the motor.
2
1
1
– Disconnect the blue wire from the
switch (2).
: Disconnect the black wire (1)
from the switch (2).
: Remove the capacitor (1) from its
holder in the direction of the
arrow.
1
2
1
3.4.4 Installing the wiring
harness with capacitor
: Connect the black wire (1) to the
motor.
: Connect terminal socket of black
wire (1) to switch (2) and push it
together with wire (3) into the
retaining slots (4) (see
illustration).
1
2
1
3
4
4

Stihl HSE 71 Specifications

General

Blade size	600 mm
Blade type	Double blade
Product color	Grey, Orange, Black
Vibration emission	3.8 m/s²
Engine power	600 W
Power source	Battery
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1230 mm
Weight	- g
