Stihl HSE 71

19HSE 61, HSE 71, HSE 81

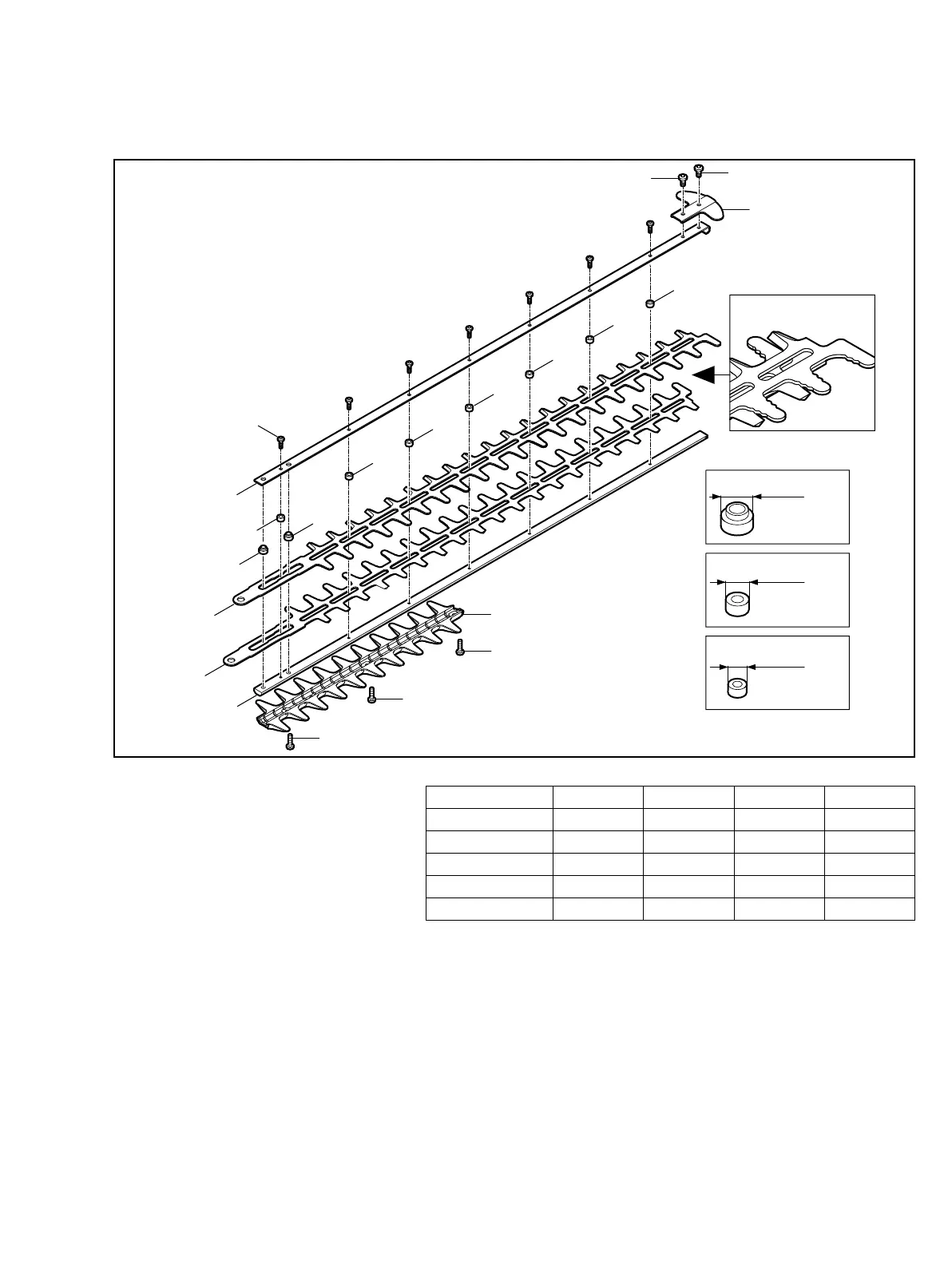

4.2.2 Assembling the cutting
attachment
: Mount the cutter guard (11)
(HSE 81) with the screws (12).
: Position the blades (7 + 8)
correctly (see illustration D) on
the aluminum guide (10).
: Fit the sliders (3) in the slots of
the blades (7 + 8) and line them
up with the tapped holes in the
guide.
: Fit the sliders (1), collar facing up,
on the blade mounting holes.
: Place the guide (5) on the blade.
4
5
2
3
3
3
3
3
3
9
9
6
1
1
7
8
10
11
12
12
10mm
8mm
7mm
A
B
C12
D
1234
HSE 61 2xA 1xC 4xB 5x
HSE 71 2xA 1xC 5xC 6x
HSE 71 2xA 1xC 6xC 7x
HSE 81 2xA 1xC 5xC 6x
HSE 81 2xA 1xC 6xC 7x
