Stihl HSE 71

13HSE 61, HSE 71, HSE 81
: Remove the microswitch (1) from
the control unit (pull in direction of
arrow).

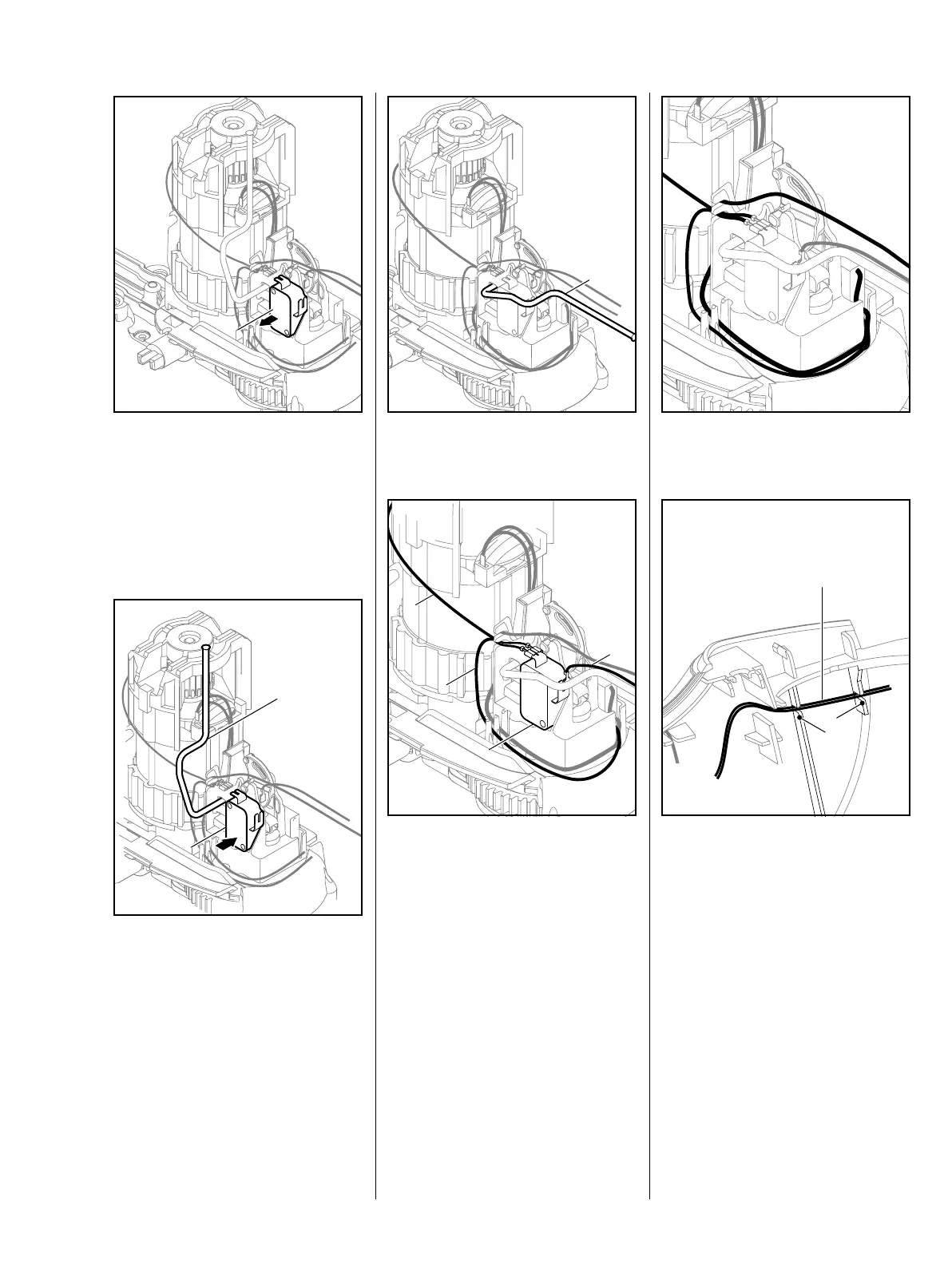

3.4.8 Installing the
microswitch
: With the rod (2) upright, fit the
microswitch (1) in the control unit.
1
2
1
: Swing the rod (1) down.
: Connect terminals of the wires (1
– 3) to the microswitch (4).
Wire 1: blue
Wire 2: black
Wire 3: blue
1
1
2
4
3
: Engage the wires in the slots.
: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
1
2
2
