Important:
The thread length of the screw (1)
must be 12 mm.
: Fit the screw (1) (1.1 Nm).
– Close the housing, b 6.2.
1
6.5 Replacing the housing
6.5.1 Removing the housing
– Open the housing, b 6.1.
– Expose the drive gear, b 5.1.1.
– Open the rear handle, b 6.4.1.
– Disassemble the rear handle,
b 6.4.2.

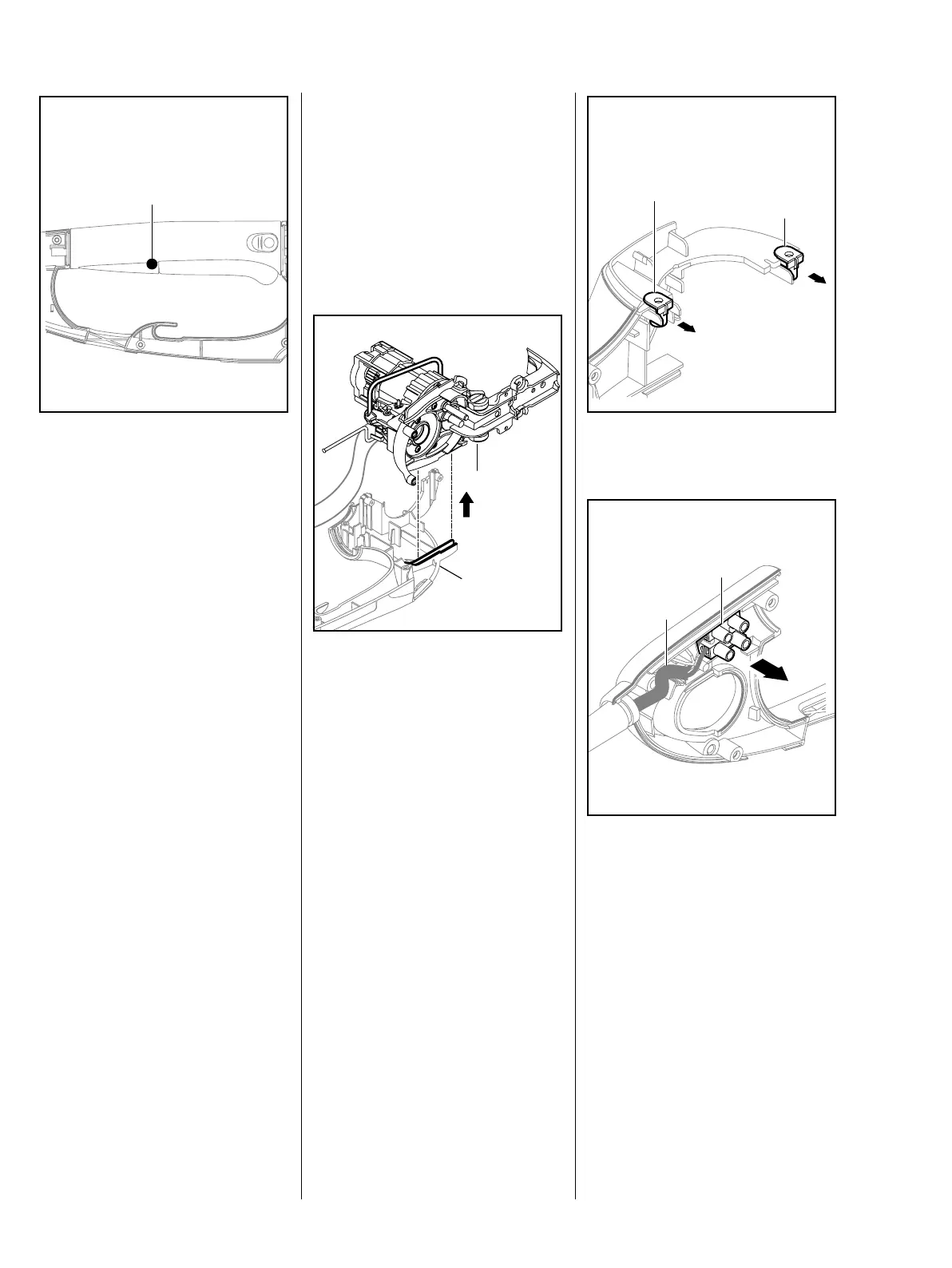

: Take the gear housing (1) with its
components out of the motor
housing (2).
1
2
: Remove the push nuts (1).
: Remove the power cord (1) with
terminal block (2).
1
1
1
2
