Stihl HSE 71

44 HSE 61, HSE 71, HSE 81

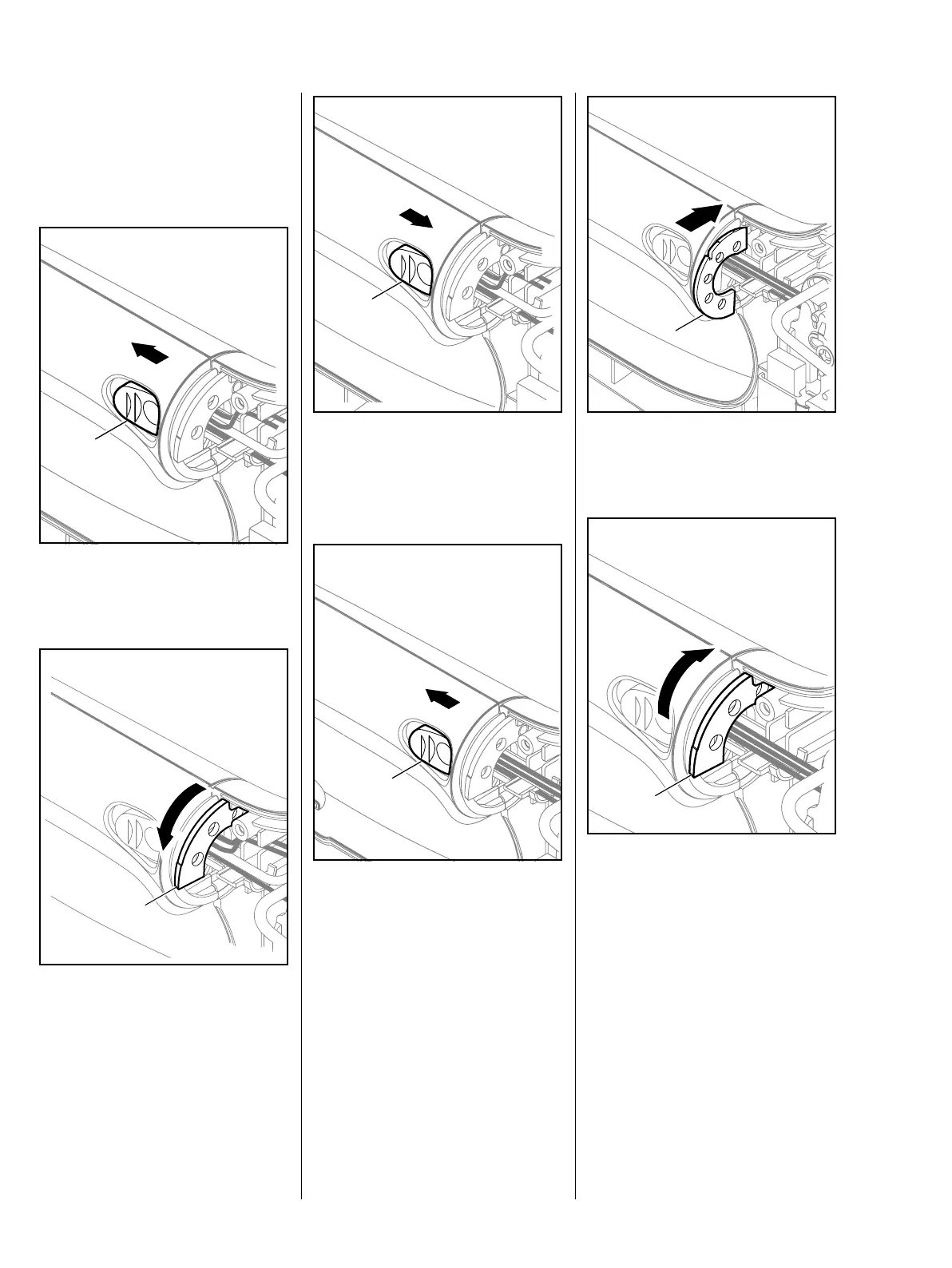

6.6 Replacing the quadrant
6.6.1 Removing the quadrant
– Open the housing, b 6.1.
: Pull the slide (1) back and hold it
in that position.
: Rotate the quadrant (1) in
direction of arrow and remove it
from the housing.
1
1
: Release the slide (1).
6.6.2 Installing the quadrant
– Pull the connecting wires out of
the slot.
: Pull the slide (1) back and hold it
in that position.
1
1
: Place the quadrant (1) in the
housing (note position of notch).
: Rotate the quadrant (1) to the
correct position so that it snaps
into place.
1
1
