7.3 Replacing the cable

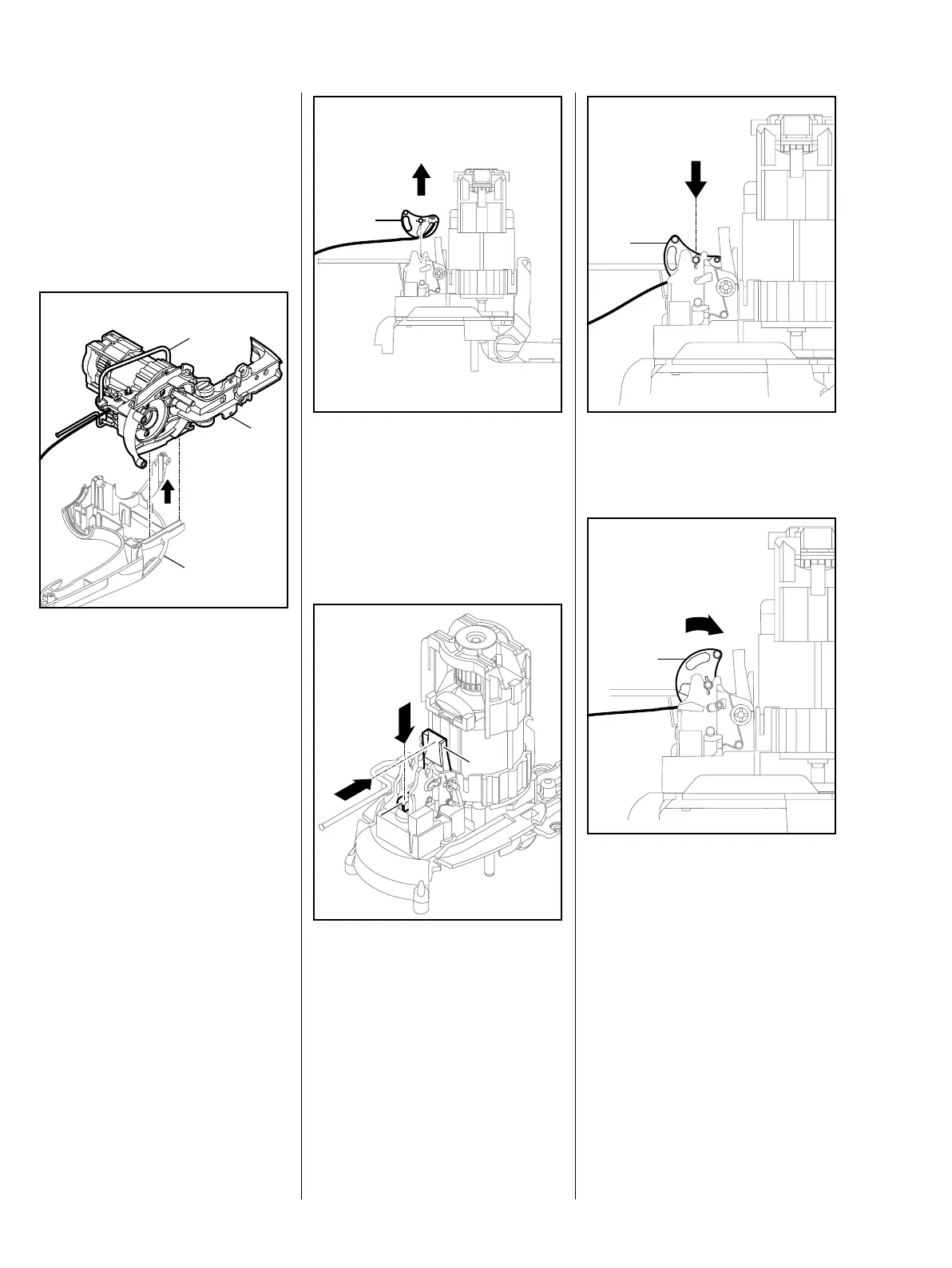

7.3.1 Removing the cable
– Open the housing, b 6.1.
– Open the rear handle, b 6.4.1.
– Disassemble the rear handle,
b 6.4.2.
: Take the gear housing (1) with its
components out of the motor
housing (2).
: Remove the switch rod (3).
3
1
2
: Press the rear rocker (1) down
and take it out of the control unit.
: Disconnect the cable from the
rocker.
7.3.2 Installing the cable
– Connect the cable to the rocker.
: Press the lever (1) (coupling pin)
down and then push the switch
rocker (2) towards the motor and
hold it in that position.
1
1
2
: Fit the rocker (1) in the control
unit.
: Rotate the rocker (1) 90°
forwards (arrow).
