7HSE 61, HSE 71, HSE 81

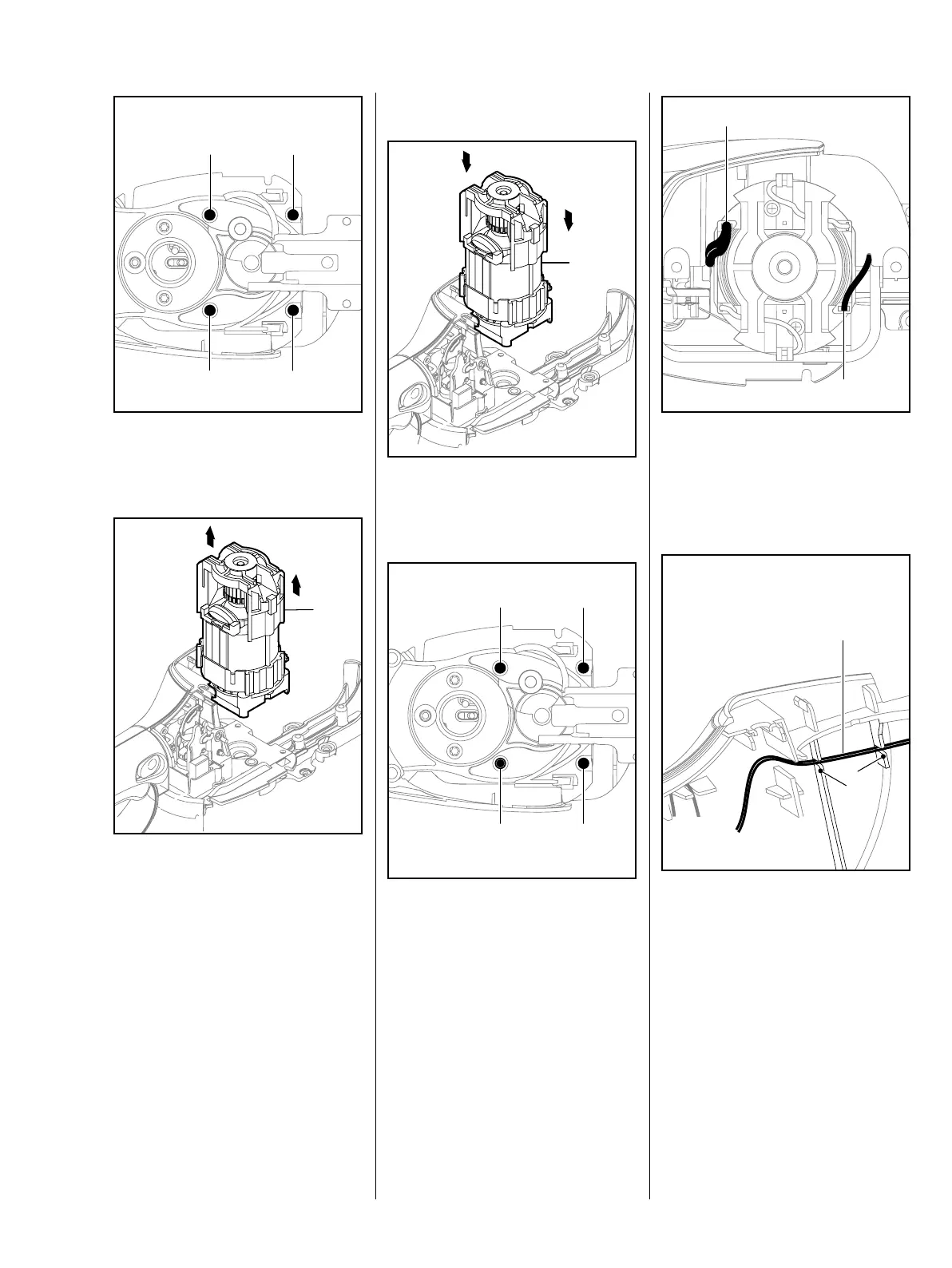

: Take out the motor mounting
screws (1).
: Remove the motor (1) in direction
of arrows.
11
1
1
1
3.3.2 Installing the motor
: Fit the motor (1) in direction of
arrows.
: Insert the motor mounting screws
(1) and tighten them down firmly
to a torque of 1.5 Nm.
1
1
1
1
1
: Connect the blue wire (1) at the
front side of the motor and the
black wire (2) at the rear of the
motor (see illustration).
: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
– Install the drive gear, b 5.1.5.
– Close the housing, b 6.2.
2
1
1
2
2

Stihl HSE 71 Specifications

General

Blade size	600 mm
Blade type	Double blade
Product color	Grey, Orange, Black
Vibration emission	3.8 m/s²
Engine power	600 W
Power source	Battery
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1230 mm
Weight	- g
