11HSE 61, HSE 71, HSE 81

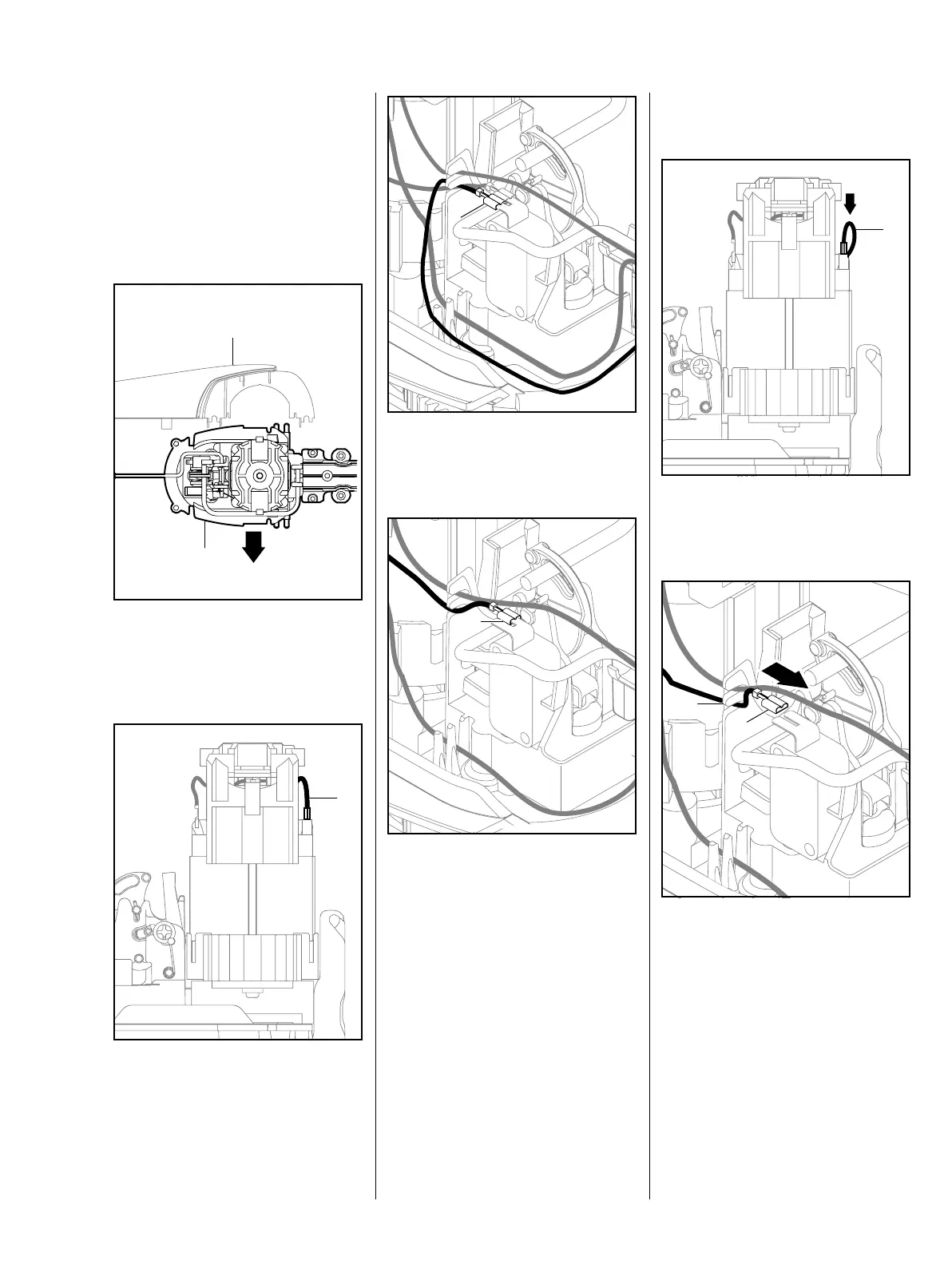

3.4.5 Removing the blue motor
connecting wire
– Open the housing, b 6.1.
– Open the rear handle, b 6.4.1.
– Disassemble the rear handle,
b 6.4.2.
: Take the gear housing (1) with its
components out of the motor
housing (2).
: Disconnect the blue wire (1) from
the motor.
2
1
1
: Disconnect the black wire (1)
from the switch.
(
: Disconnect the blue wire (1) from
the switch.
1
1
3.4.6 Installing the blue motor
connecting wire
: Connect the blue wire (1) to the
motor.
: Connect terminal socket of blue
wire (1) to the switch and push
the wire into the slot (2).
1
1
2

Stihl HSE 71 Specifications

General

Blade size	600 mm
Blade type	Double blade
Product color	Grey, Orange, Black
Vibration emission	3.8 m/s²
Engine power	600 W
Power source	Battery
AC input voltage	230 - 240 V
Power cable length	0.31 m

Weight and Dimensions

Depth	1230 mm
Weight	- g
