Stihl HSE 71

40 HSE 61, HSE 71, HSE 81

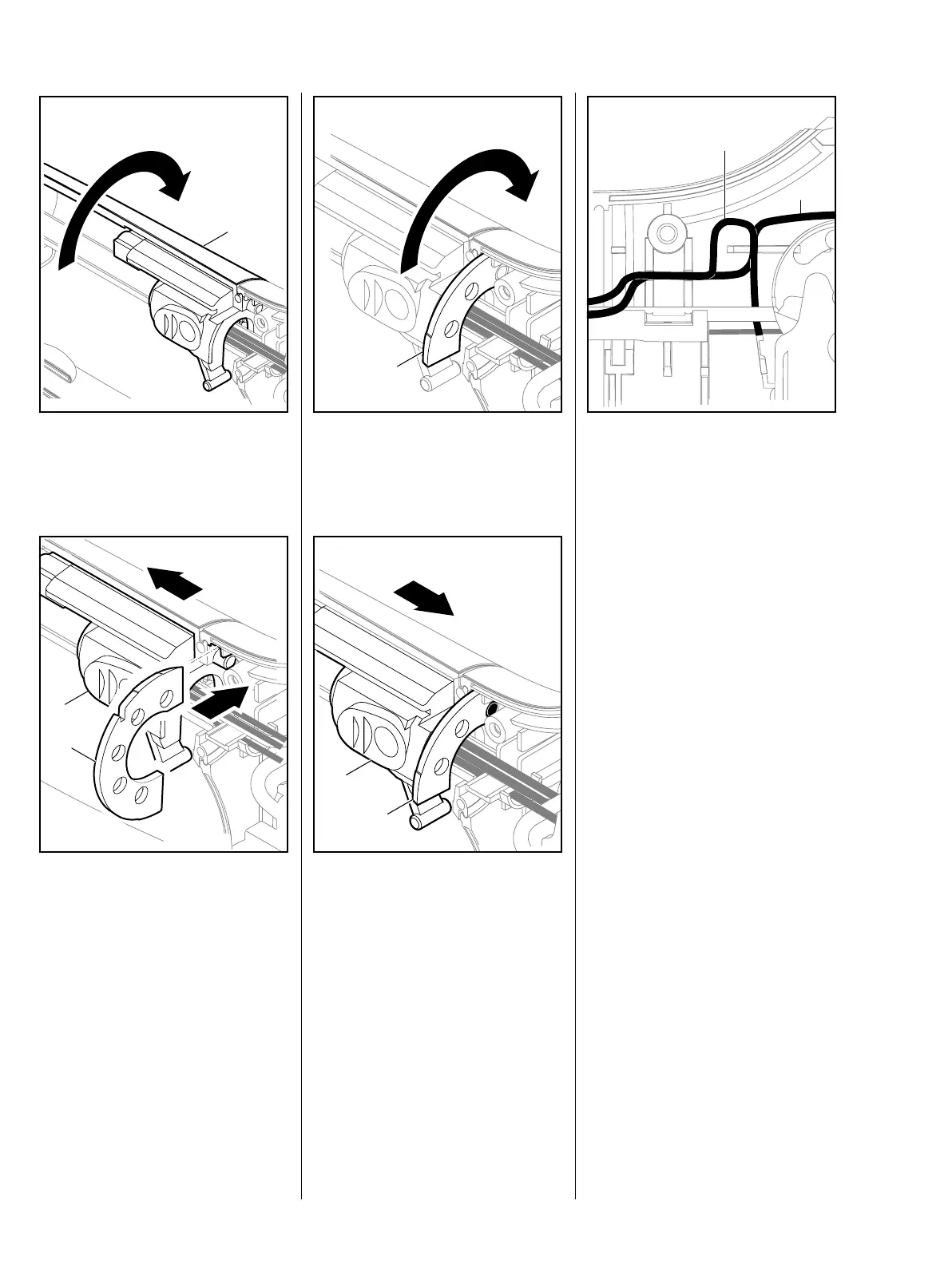

: Turn the handle molding with
slide (1) into the correct position
(see illustration).
– Lift the two front wires out of the
ribs.
: Pull the slide (1) back and hold it
in that position.
: Place the quadrant (2) in the
housing (note position of notch).
1
1
2
: Rotate the quadrant (1) in the
direction of the arrow. The
quadrant must snap into position.
: Allow slide (1) to engage in the
quadrant (2).
1
1
2
: Pull the blue wire (1) forward to
take up slack and push it into the
retaining slots.
: Pull the black wire (2) forward to
take up slack and push it into the
retaining slot.
1
2
