56 HSE 61, HSE 71, HSE 81

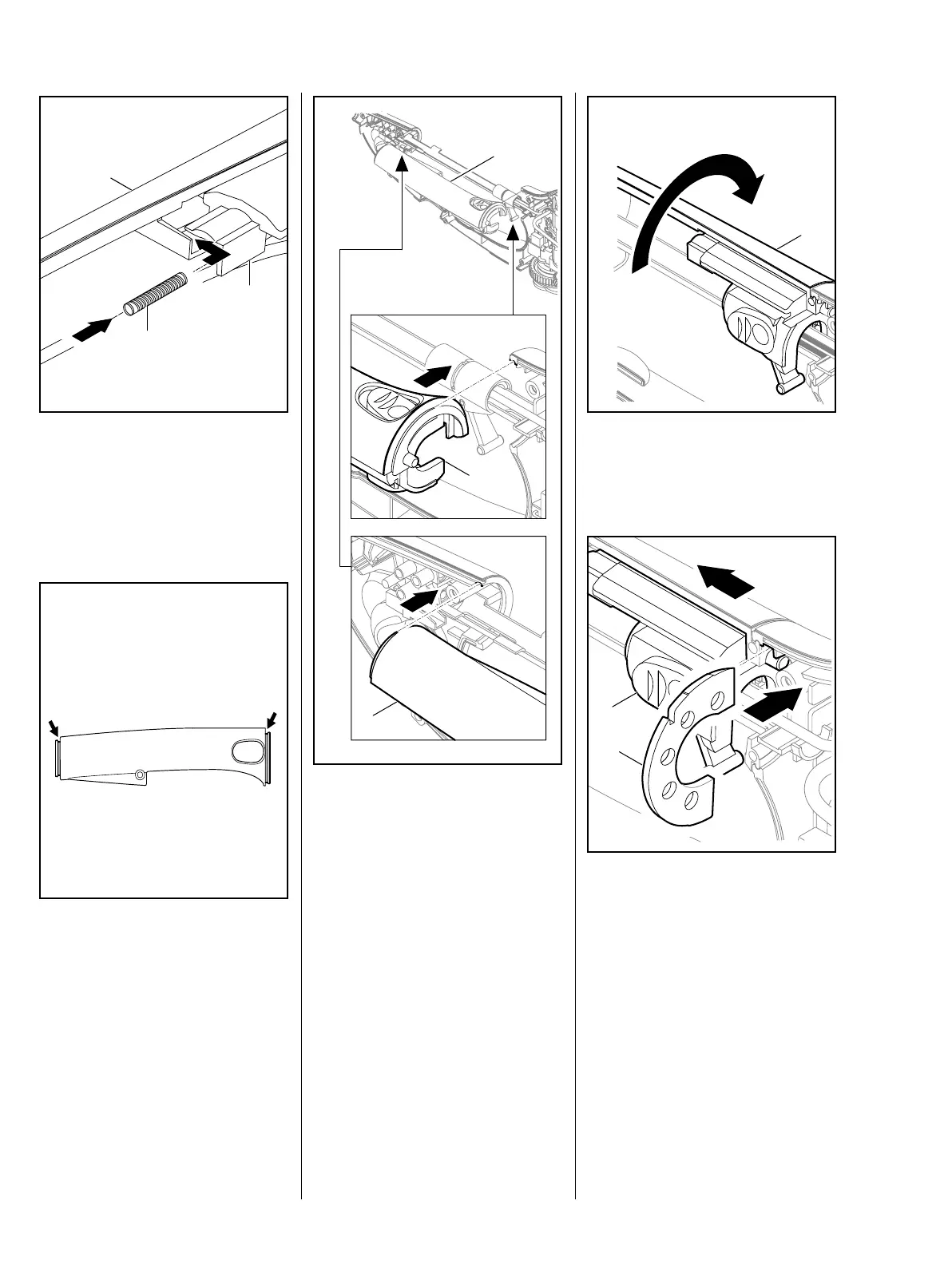

: Fit the spring (1) between the
slide (2) and handle molding (3).
Important:
The spring is preloaded. Take
care to ensure that the spring
does not pop out.
: Lubricate grooves at both ends of
handle moldings with grease,
b 8.6.
– The rotating rear handle must
turn freely in the assembled
condition.
3
1
2
: Fit the handle molding with slide
(1) as shown in the illustration.
1
1
1
: Turn the handle molding with
slide (1) into the correct position
(see illustration).
– Lift the two front wires out of the
ribs.
: Pull the slide (1) back and hold it
in that position.
: Place the quadrant (2) in the
housing (note position of notch).
1
1
2
