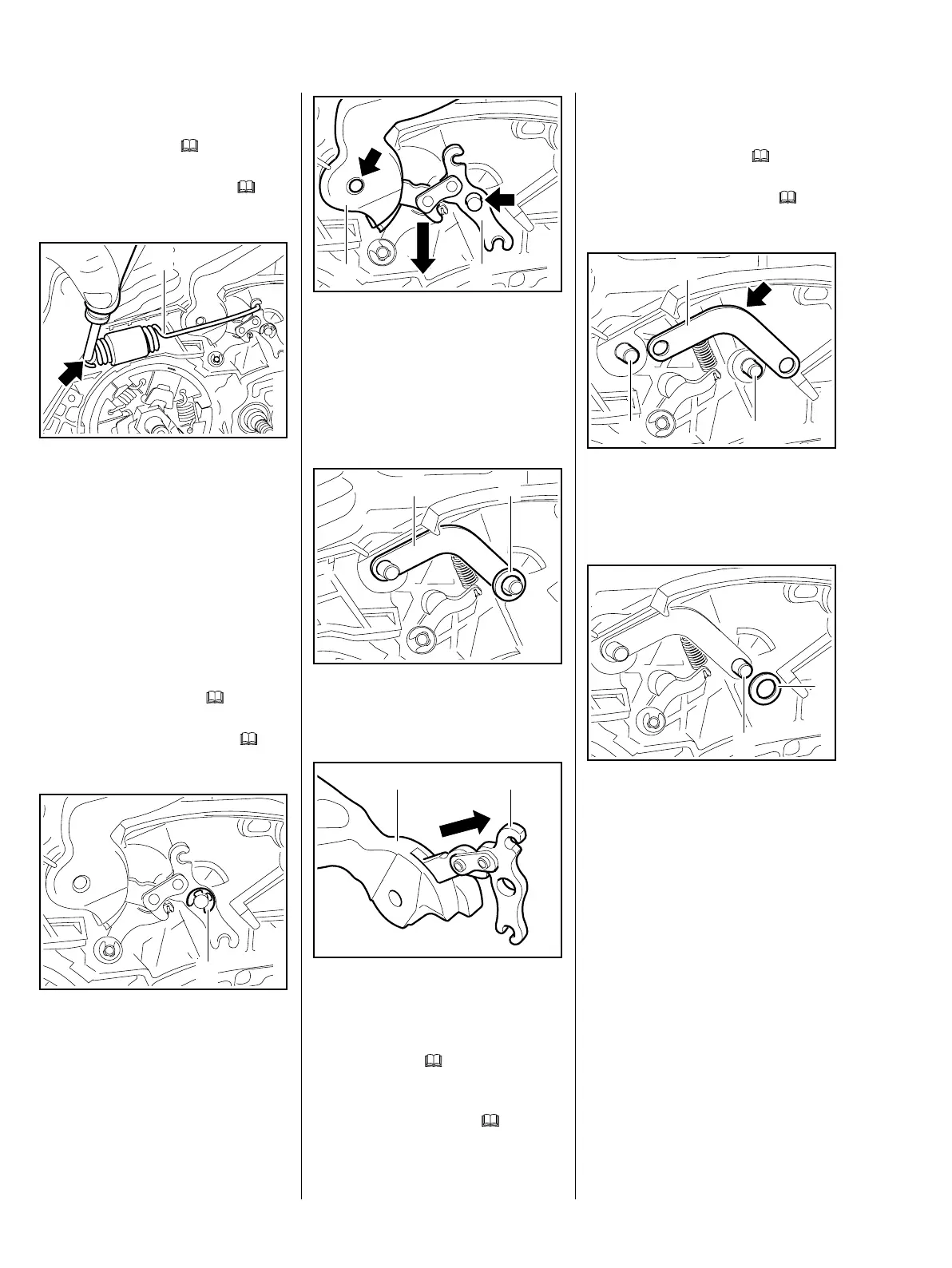

22 MS 271 C, MS 291 C
5.3 Brake Lever
Troubleshooting, b
3.2
Remove the brake band, b
5.2
Engage the chain brake.
The brake spring is now relaxed.
: Use the assembly tool
1117 890 0900 to disconnect the
brake spring (1) from the anchor
pin (arrow).
Remove the brake spring from
the brake lever.
Remove the shroud, b
6.4
Remove the fan housing, b 8.2
: Remove the retaining ring (1).
off
2710RA019 TG
1
2710RA020 TG
1
: Pull the hand guard (1) and brake
lever (2) off the pivot
pins (arrows) together.
Remove the hand guard and
brake lever.
: Remove the spacer washer (1)
and strap (2).
: Take the brake lever (2) out of the
hand guard (1).
Inspect the pivot pins and replace
if necessary, b
5.6
Inspect the cam lever and
replace if necessary, b 5.5
2710RA021 TG
1
2
off
2710RA022 TG
2 1
5902RA034 TG
1 2
Installing
Clean the pivot pins and
disassembled parts, b 14
Lubricate the pivot pins, b
14
: Push the strap (1), outside
radius (arrow) facing up, onto the
pins (2) and (3).
: Slip the spacer washer (1) onto
the pin (2).
2710RA023 TG
1
23
2710RA024 TG
2
1
