84 MS 271 C, MS 291 C
: Push the fuel return hose (1) into
the guides (arrows).
: Position the fuel return hose (1)
so that it is beside the short circuit
wire's grommet (2).
Do not kink or pinch the fuel return
hose.
– Install the ignition lead, b
7.3
– Reassemble all other parts in the
reverse sequence.

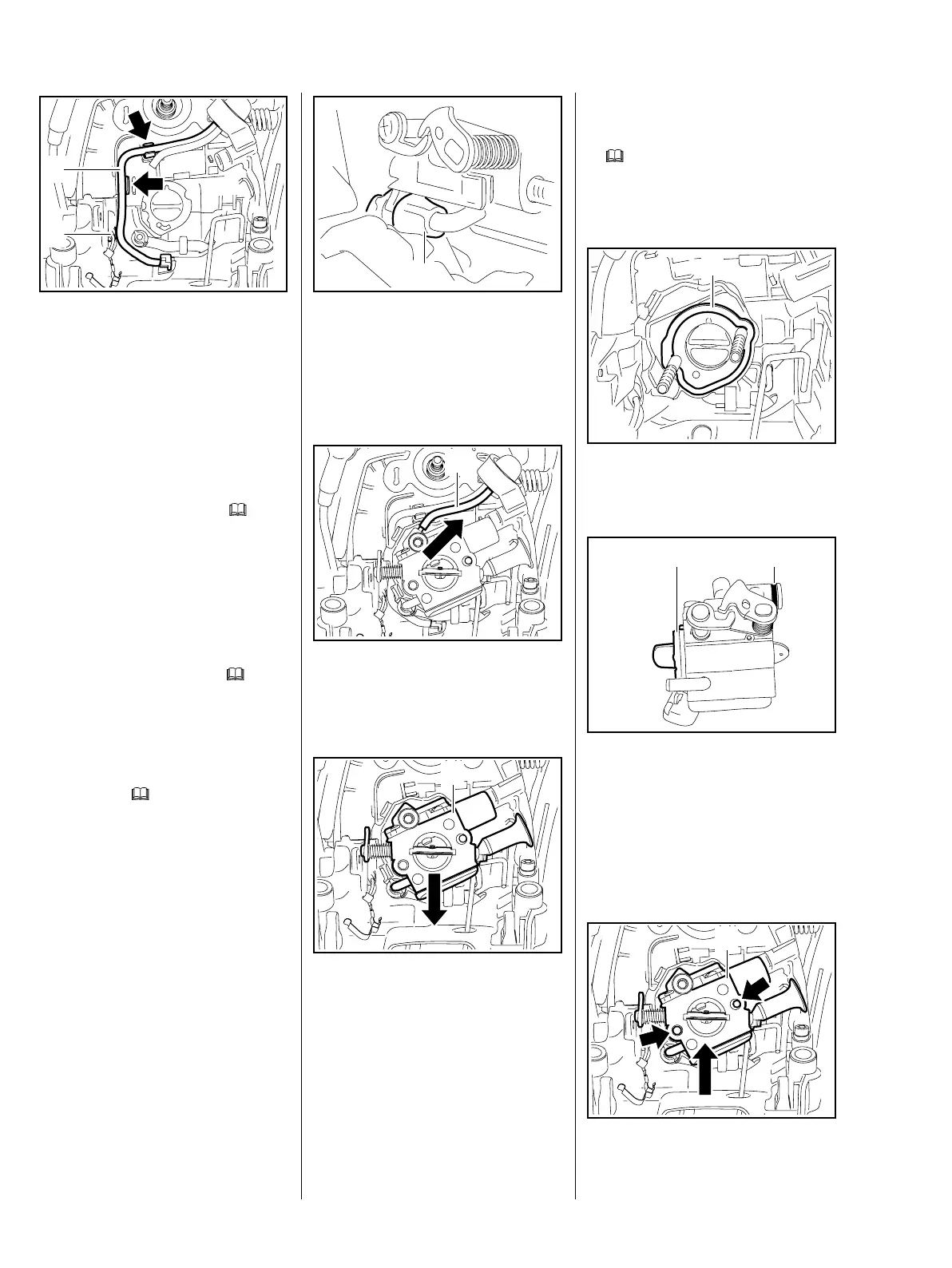

12.5 Carburetor
– Remove the filter base, b
12.3
– Open the fuel tank cap and drain
the fuel tank.
– Collect the fuel in a clean
container, b
1
Disconnect the fuel hose only when
the tank cap is open.
2710RA269 TG
1
2
: Push the fuel hose (1) back a
little
– the fuel hose is disconnected.
Models with manual fuel pump
: Remove the fuel hose (1).
All models
: Remove the carburetor (1).
– Check the carburetor and service
or replace if necessary.
5902RA363 TG
1
2710RA270 TG
1
2710RA271 TG
1
Models with manual fuel pump
– Install a new fuel hose,
b 12.11.3
Installing
Make sure the washer (1) is in
place.
Make sure the ring (1) is in place.
Make sure sealing ring (2) is in
place.
– Check the components and
replace as necessary.
: Push the carburetor (1) onto the
studs (arrows).
5902RA097 TG
1
5902RA371 TG
21
2710RA272 TG
1
