57MS 271 C, MS 291 C
8. Rewind Starter
8.1 General
If the action of the starter rope
becomes very stiff and the rope
rewinds very slowly or not
completely, it can be assumed that
the starter mechanism is in order
but plugged with dirt. At very low
outside temperatures the lubricating
oil on the rewind spring may thicken
and cause the spring windings to
stick together. This has a
detrimental effect on the function of
the starter mechanism.
In such a case it is sufficient to apply
a few drops of a standard solvent-
based degreasant (containing no
chlorinated or halogenated
hydrocarbons) to the rewind spring.
Carefully pull out the starter rope
several times and allow it to rewind
until its normal smooth action is
restored.
Before installing, lubricate the
rewind spring and starter post with
STIHL special lubricant, b
14.
If clogged with dirt or pitch, the
entire starter mechanism, including
the rewind spring, must be removed
and disassembled. Take particular
care when removing the rewind
spring.
– Clean all components.
Models with ErgoStart
– Relieve tension of rewind spring,
b
8.4
8.2 Fan housing
– Remove the shroud, b
6.4

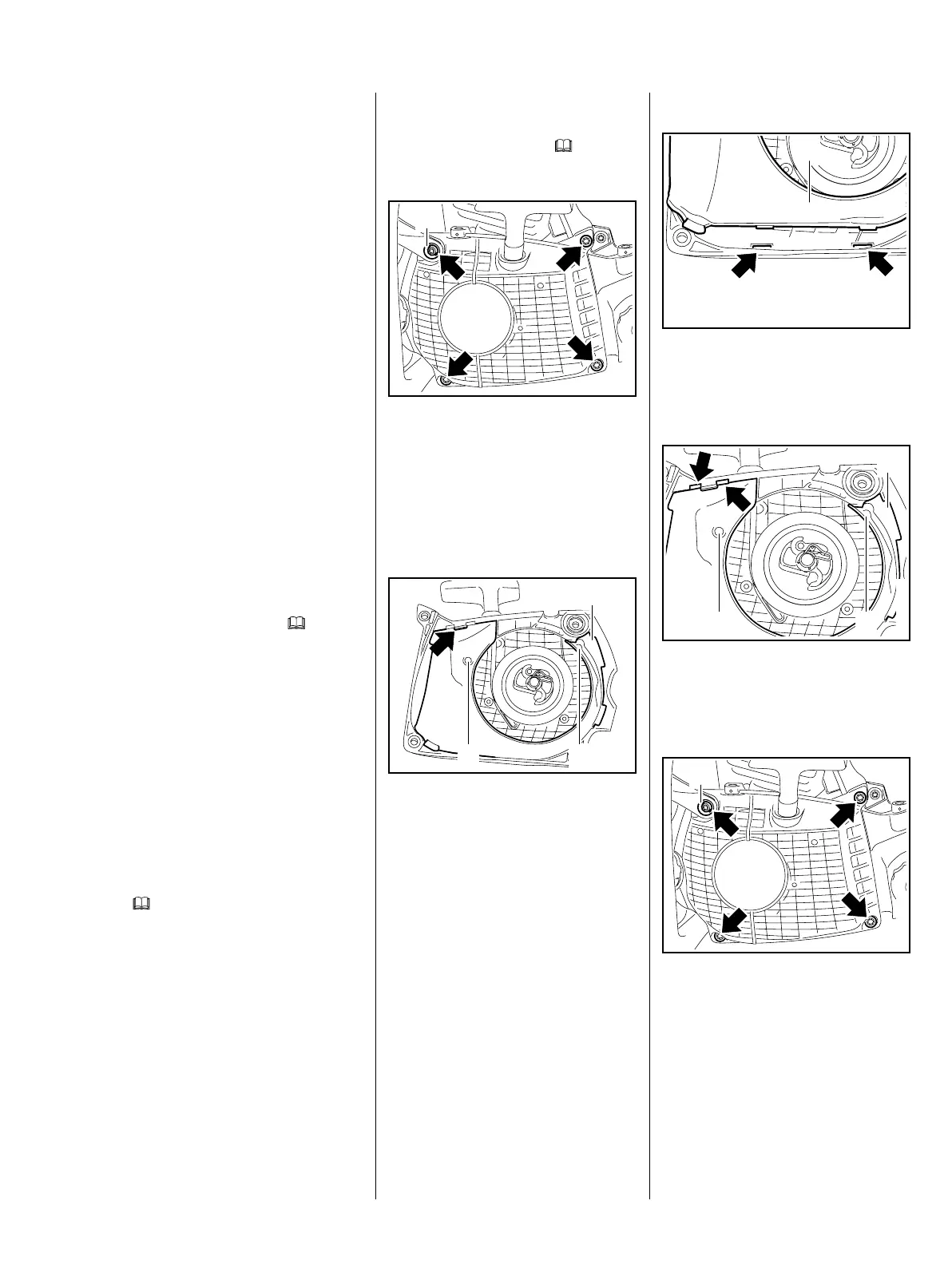

: Take out the screws (arrows).
: Remove the sleeve (1).
– Lift the hand guard a little and
remove the fan housing.
: Pry the segment (1) away at the
recess (arrow) and pull it off the
pegs (2).
– Examine the fan housing and
segment and replace if
necessary.
2710RA214 TG
1
2710RA211 TG
1
22
Installing
: Engage the segment (1) in the
slots (arrows) in the fan housing
first and swing it into position.
: Push the segment (1) onto the
pegs (2) until it engages the
tabs (arrows).
– Lift the hand guard a little and fit
the fan housing in position.
: Fit the sleeve (1), insert and
tighten down the screws (arrows)
firmly.
– Reassemble all other parts in the
reverse sequence.
2710RA212 TG
1
2710RA213 TG
1
22
2710RA214 TG
1
To Next Page
