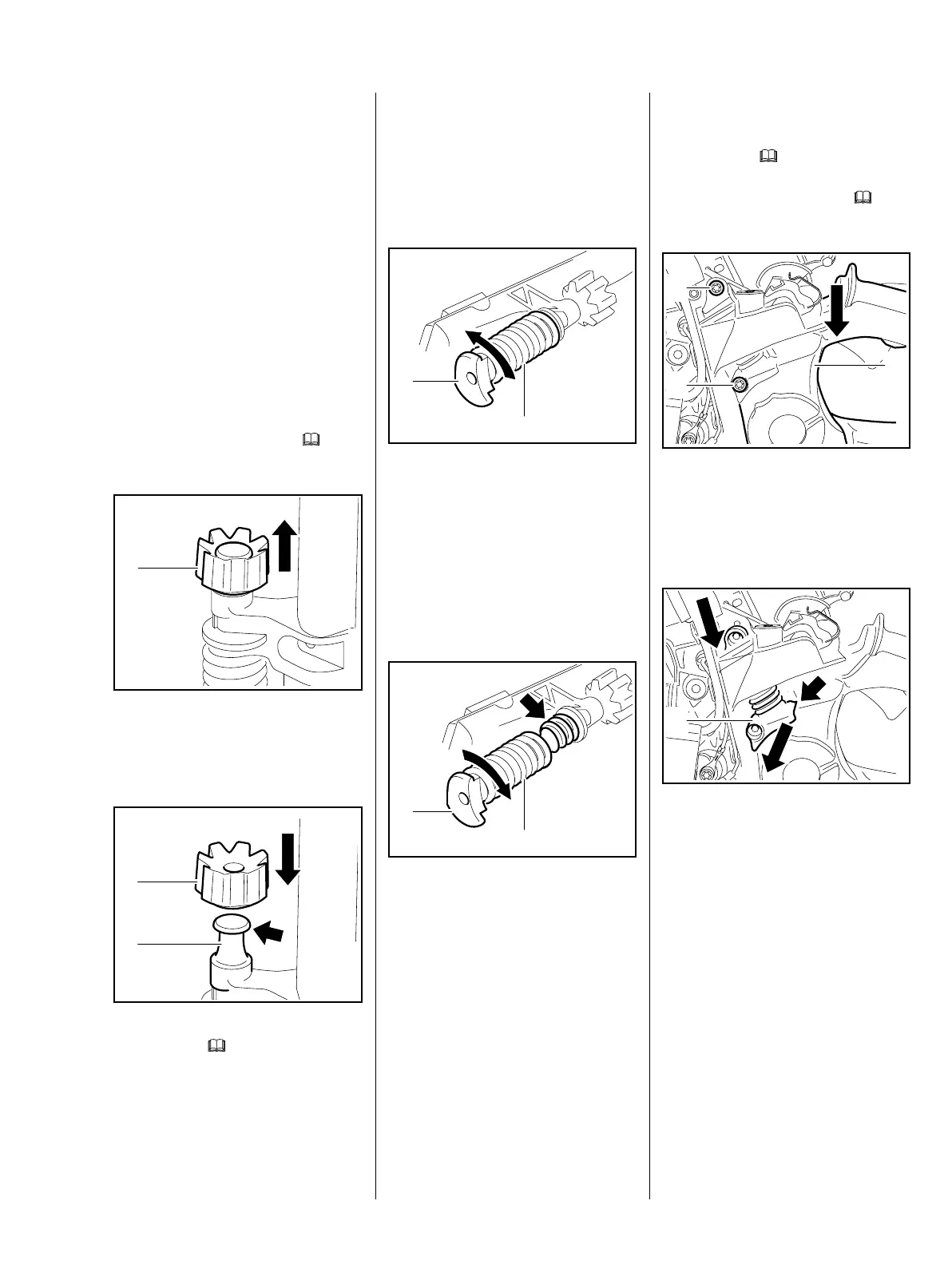

9. Servicing the AV System
Vibration-damping springs, annular
buffers and stop buffers are used for
the connection between the
handlebar, tank housing and engine
housing.
Damaged springs and buffers must
always be replaced.
9.1 Annular Buffer and AV
Spring on Oil Tank
The antivibration elements are
located in the area of the oil tank
and are secured to the underside of
the machine.
– Remove the handlebar, b
9.5
: Pull off and replace the buffer (1).
Installing
– Use STIHL press fluid to simplify
assembly, b
14
2710RA166 TG
1
2710RA167 TG
2
1
: Push the buffer (2) onto the
peg (1) on the handlebar as far
as stop.
The peg's head (arrow) must locate
properly on the buffer.
: Unscrew the AV spring (1).
– Unscrew the bearing plug (2).
– Check the AV spring and plug,
replace if necessary.
Installing
– Screw home the bearing plug (2).
: Screw the AV spring (1) into the
handlebar (arrow) as far as stop.
– Reassemble all other parts in the
reverse sequence.
2
1
5902RA228 TG
2
1
5902RA229 TG
9.2 AV Spring on Fuel Tank
– Remove AV spring from
handlebar, b 9.3
– Remove the stop buffer, b
9.4
: Take out the screws (1).
: Press the tank housing (2) down
a little and hold it there.
: Pull the AV spring (1) out of the
guide (arrow) and remove it from
between the engine housing and
tank housing.
– Check the AV spring and plug,
replace if necessary.
2
2710RA168 TG
1
1
2710RA169 TG
1
