38 MS 271 C, MS 291 C
: Use a drift (2) to drive out the
screw (1).
Installing
: Use a drift (2) to drive home the
screw (1).
– Reassemble all other parts in the
reverse sequence.
6.5 Cylinder / Crankshaft
The engine pan is screwed to the
engine housing.
All sealing faces must be in perfect
condition. If the sealing faces are
damaged, replace the part
concerned, b
3.7.
– Remove the shroud, b
6.4
– Pull off the boot and unscrew the
spark plug, b
4
2710RA093 TG
1
2
2710RA094 TG
2
1
– Remove the fan housing, b 8.2
– Remove the flywheel, b 7.6
– Remove the clutch, b 4
– Remove the oil pump, b
11.3
– Remove the filter base, b
12.3
– Remove the carburetor, b 12.5
– Remove the carburetor carrier,
b
12.8
– Remove the air guide shroud,
b
12.4
– Remove the muffler, b
6.1
– Remove the handlebar, b
9.3
– Remove the tank housing,
b
12.11.5

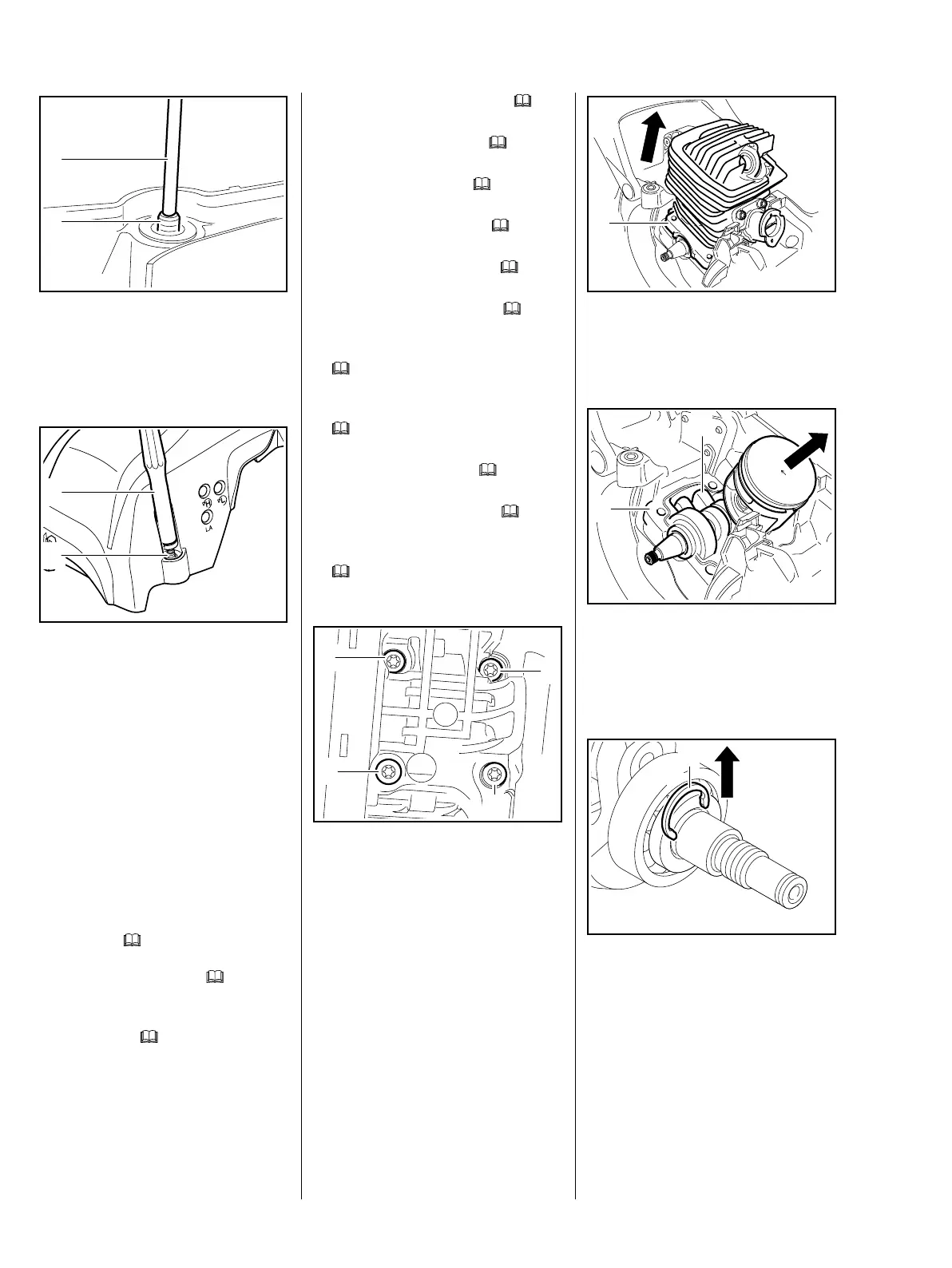

: Remove the screws (1) from the
underside of the machine.
2710RA095 TG
1
1
1
1
: Carefully release the cylinder (1)
from the engine pan and lift it
away.
: Loosen the crankshaft (1) at the
bearing seats in the engine
pan (2) and take it out of the
engine housing.
: Remove the retaining ring (1).
2710RA096 TG
1
2710RA097 TG
1
2
2710RA098 TG
1
