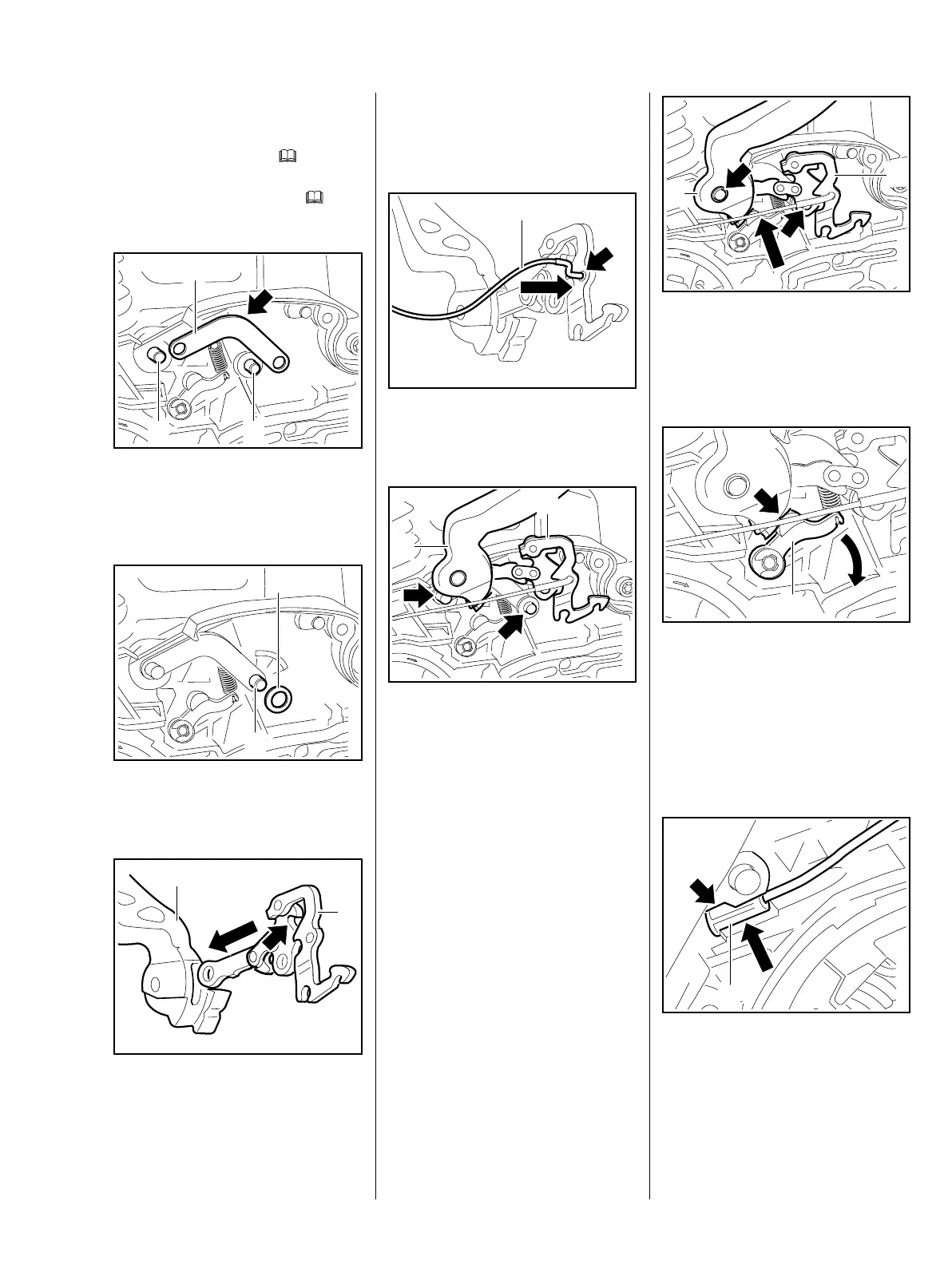

Installing
– Clean the pivot pins and
disassembled parts, b 14
– Lubricate the pivot pins, b
14
: Push the strap (1), outside
radius (arrow) facing up, onto the
pins (2) and (3).
: Slip the spacer washer (1) onto
the pin (2).
: Hold the brake lever (2) so that
the brake spring attachment
point (arrow) is at the top.
2710RA035 TG
1
23
2710RA036 TG
1
2
5902RA048 TG
1
2
: Push the brake lever (2) into the
recess in the hand guard (1) and
line up the holes.
: Fit the brake cable (1) in the
hole (arrow).
: Push the hand guard (1) with
brake lever (2) over the machine
until they are positioned against
the pivot pins (arrows).
5902RA049 TG
1
off
2710RA037 TG
1
2
: Lift the bearing boss of the hand
guard (1) and the brake lever (2)
a little and position them over the
pivot pins (arrows).
: Turn the cam lever (1) to one side
until the cam of the hand
guard (arrow) slips passed it.
– Push the hand guard bearing
boss and the brake lever on to
the pivot pins.
: Push the brake cable nipple (1)
into its seat (arrow).
off
2710RA038 TG
2
1
of
f
2710RA039 TG
1
2710RA040 TG
1

Stihl MS 271 Specifications

General

Motor type	2-stroke motor
Chain gauge	1.6 mm
Chain pitch	3/8 \
Blade length	400 mm
Automatic oiling	Yes
Oil tank capacity	0.24 L
Fuel tank capacity	0.5 L
Engine displacement	55.5 cm³
Engine power	3.8 hp
Power source	Gasoline

Weight and Dimensions

Weight	5600 g
